| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | 22CB500 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | 22CB500 |
| Working mode: | rubber tube friction |
| Max air pressure: | 0.8Mpa |
| Friction material: | rubber tube |
| Max torque: | 11040N.m |
| Dimension: | 762mm*170mm |
| Max rotating speed: | 1700r/min |
| Max connecting speed: | 1700r/min |
| Weight: | 46kgs |
Quick Details
Specifications

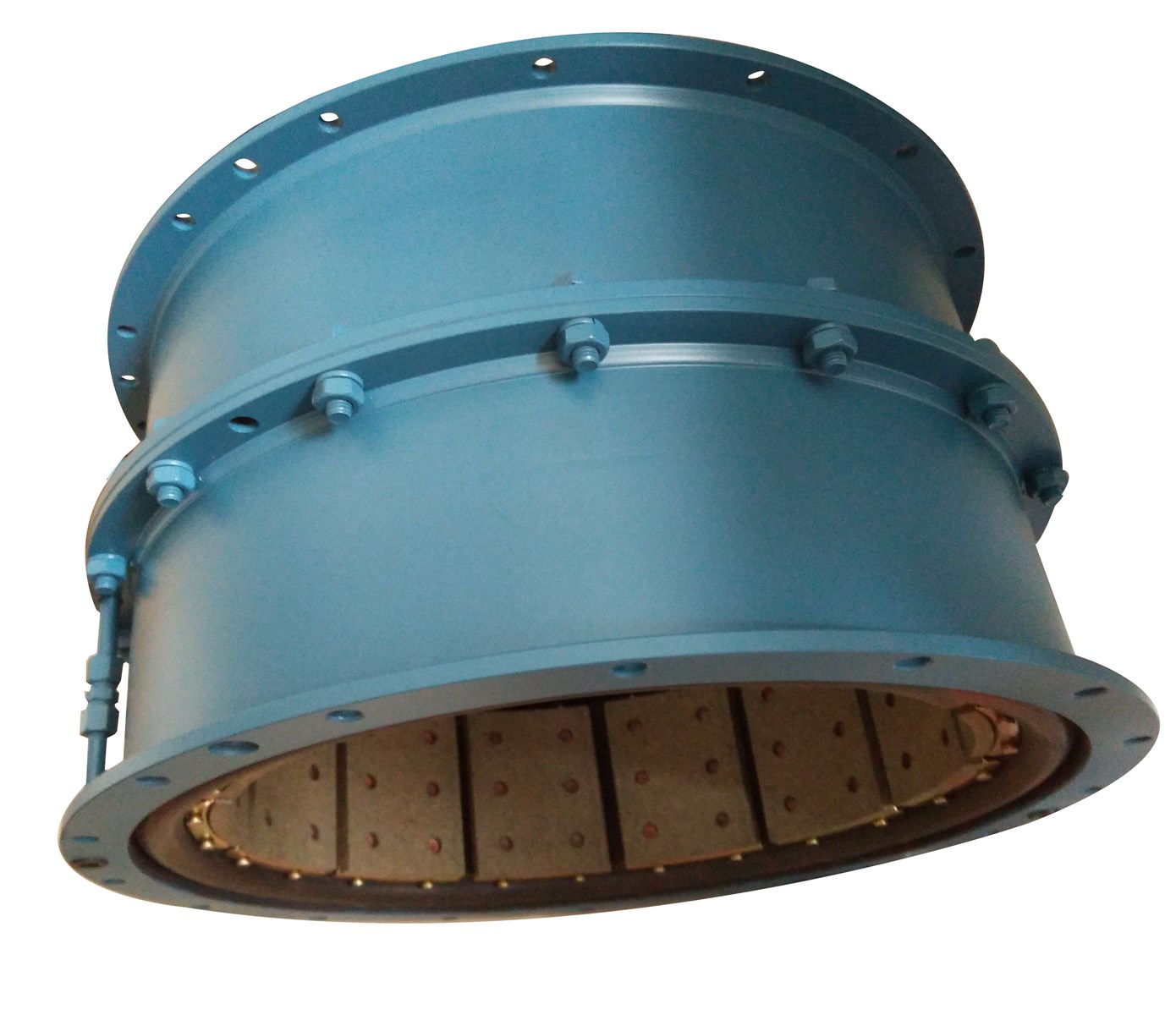

Pneumatic drum clutch 22CB500 is also a kind of friction clutch, it is imported from HAwer Korea. this type of drum clutch can well replace Eaton Airflex 22CB500 and other models of air constricted clutch and brake.
Description of pneumatic drum clutch 22CB500:
this pneumatic drum type rubber tube clutch can be used as a clutch or brake as different installation mode. When 22CB500 element fixed on flywheel, it is worked as a clutch, so as to transmit motor power from driving part to driven part after clutch linked. When 22CB500 element fixed on worktable, it is applied as a brake, after linking, rubber tube connected with friction linings, so as to make rotating part stopped.

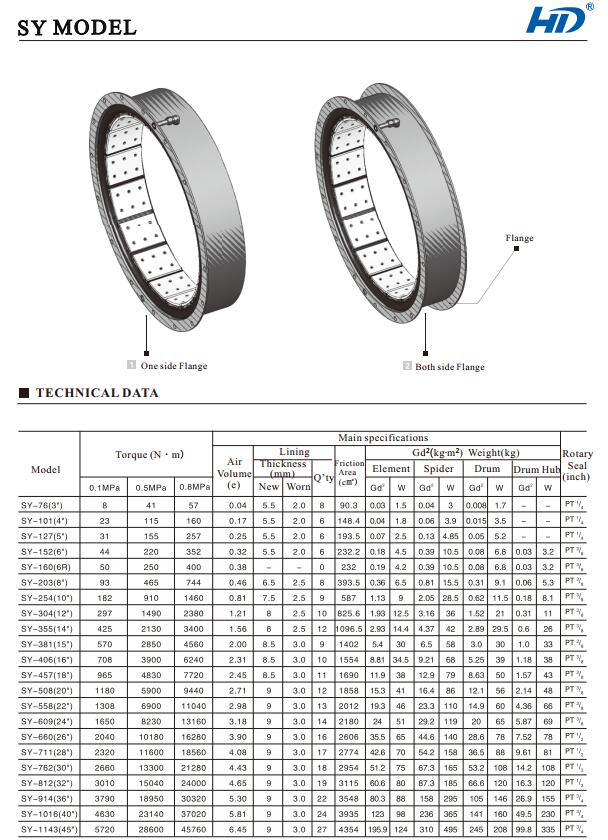

Technical data of pneumatic drum clutch 22CB500:
Description of pneumatic drum clutch 22CB500:
this pneumatic drum type rubber tube clutch can be used as a clutch or brake as different installation mode. When 22CB500 element fixed on flywheel, it is worked as a clutch, so as to transmit motor power from driving part to driven part after clutch linked. When 22CB500 element fixed on worktable, it is applied as a brake, after linking, rubber tube connected with friction linings, so as to make rotating part stopped.

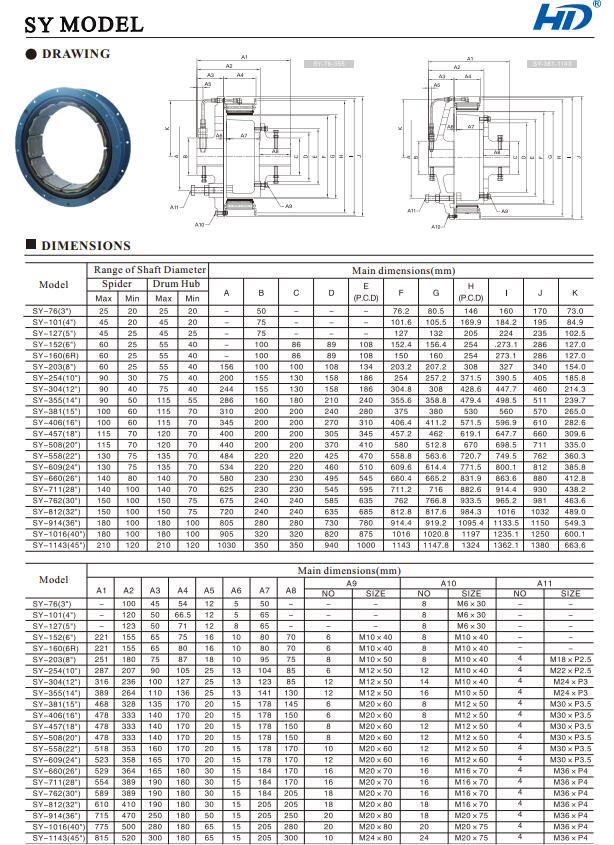

Technical data of pneumatic drum clutch 22CB500:
Pneumatic drum clutch package when dispatch:
