| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | CBM-10 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | CBM-10 |
| Max air pressure: | 0.6Mpa |
| Max torque: | 100N.m |
| Dimension: | 120mm*82mm |
| Friction pads material: | steel tooth plates |
| Working mode: | spring engaged |
| Bore diameter: | 25mm |
| Installation: | Shaft mounted |
| Weight: | 2kgs |
Quick Details
Specifications

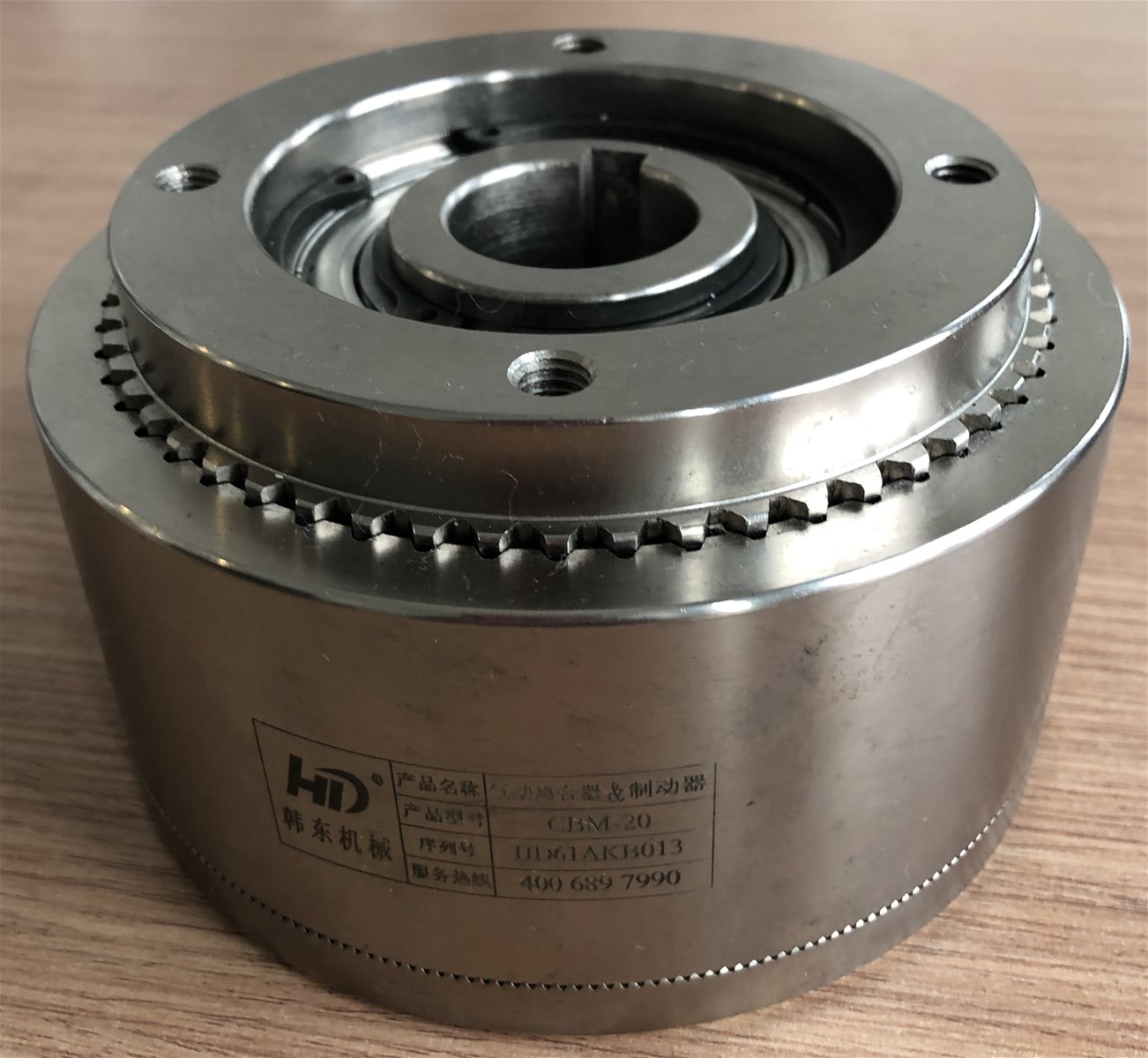

CBM is spring applied air release pneumatic tooth brake, tooth and tooth plate connection for braking. It is widely applied for robot arm, mechanical hand and other joints parts.
CBM model pneumatic tooth brake working theory:
Normally, braking springs compressed piston end tooth and hollow shaft tube end tooth, brake is in braked status. after supplying air pressure, piston moves towards to and compresses braking springs in the direction of fixed base spline, both ends of tooth separated, brake released.
Note: CBM model brake only used in low speed working situation. It is only suitable for low speed or standby connection.
this CBM pneumatic brake is extensive applied in robot arm, mechanical arm, joint, arthrosis, aerospace, entry control, marine, packaging machines, extruders for delivery of low-speed motive power, crusher, conveyor, automated machine and etc.
Normally, braking springs compressed piston end tooth and hollow shaft tube end tooth, brake is in braked status. after supplying air pressure, piston moves towards to and compresses braking springs in the direction of fixed base spline, both ends of tooth separated, brake released.
Note: CBM model brake only used in low speed working situation. It is only suitable for low speed or standby connection.
this CBM pneumatic brake is extensive applied in robot arm, mechanical arm, joint, arthrosis, aerospace, entry control, marine, packaging machines, extruders for delivery of low-speed motive power, crusher, conveyor, automated machine and etc.

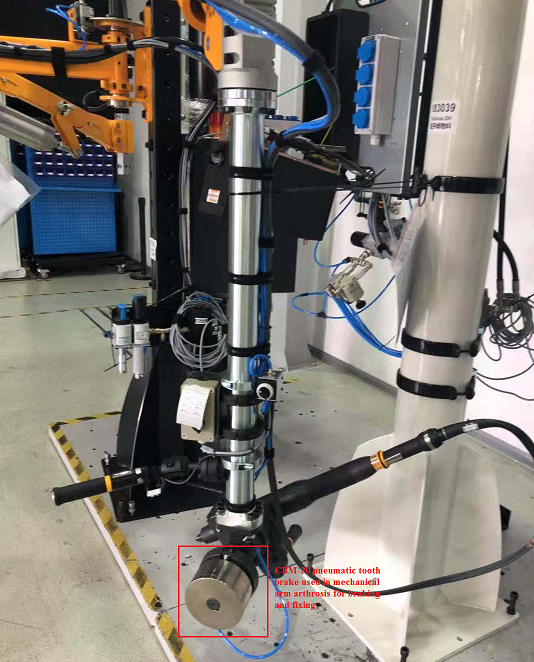

in this case, CBM spring applied air release brake is used in mechanical hand for locking. As usually, this joint is in locked status, and will not be released untill supplying air source.
