| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | DBM-20R |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | DBM-20R |
| Max oil pressure: | 10Mpa |
| Max torque: | 1600N.m or more |
| Dimension: | 150mm*85mm |
| Friction pads material: | Non-asbestos |
| Working mode: | Clamp steel plate |
| Working oil: | DOT3 or DOT4 |
| Installation: | Flange mounted |
| Weight: | 5.5kgs |
Quick Details
Specifications

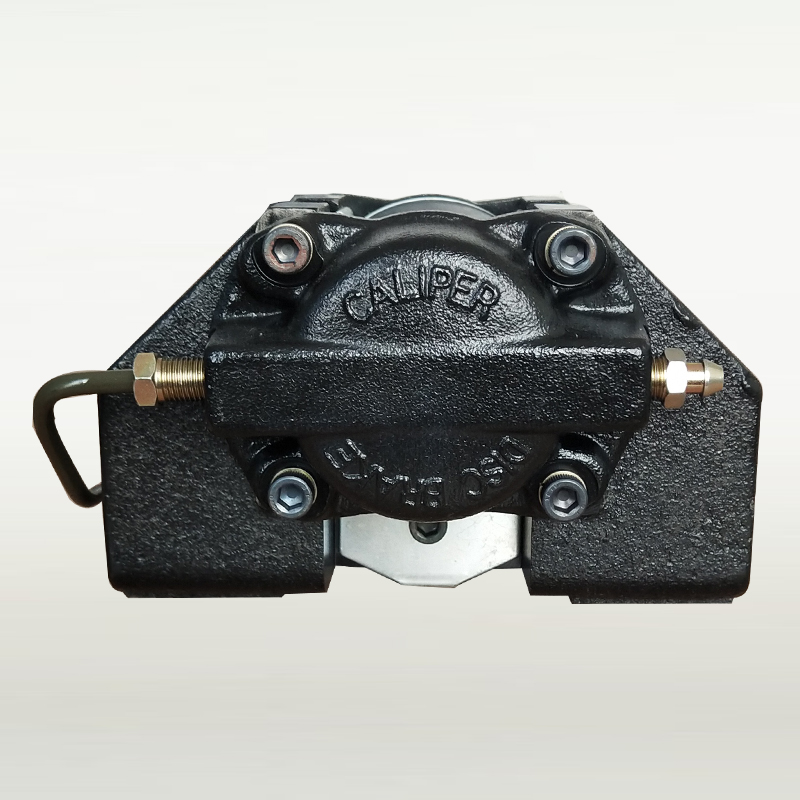

Industrial hydraulic caliper disc brake is actuated by oil pressure. DBM oil hydraulic caliper disc brake is mainly power by brake oil, and can also power by air-actuated matched with hydraulic booster, and it have 2 type, right and left.

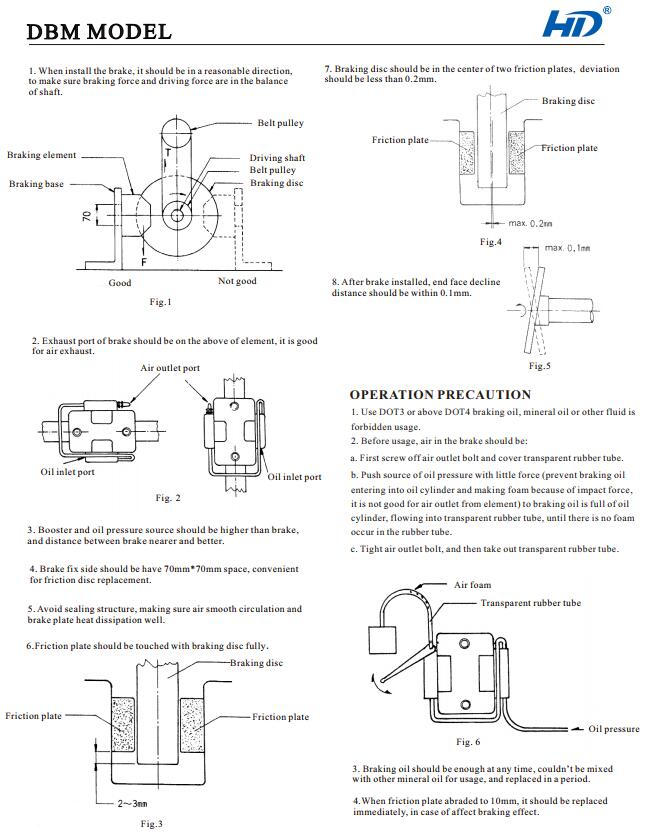

Technical data of this DBM hydraulic caliper disc brake:
