| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | DBM-10L |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | DBM-10L |
| Max oil pressure: | 10Mpa |
| Max torque: | 1600N.m or more |
| Dimension: | 150mm*85mm |
| Friction pads material: | Non-asbestos |
| Working mode: | Clamp steel plate |
| Working oil: | DOT3 or DOT4 |
| Installation: | Flange mounted |
| Weight: | 4.5kgs |
Quick Details
Specifications

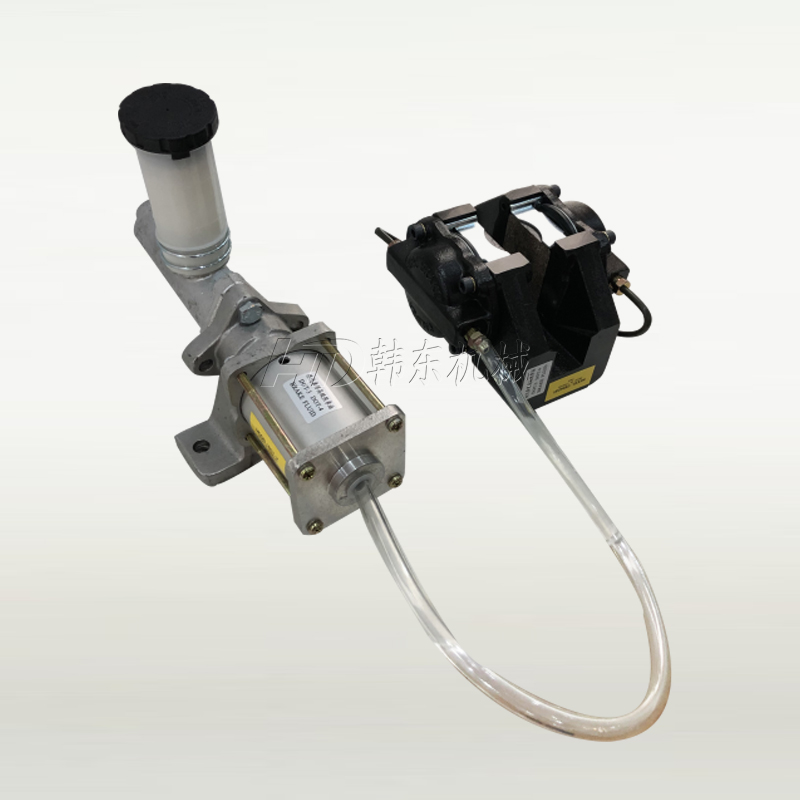

DBM hydraulic disc brake matched air hydraulic booster BST is a perfect combination. When user's factory oil pressure can't reached to 10Mpa and require high torque, how can we do? There is a good way, which is matched one set of BST hydraulic booster, transfor air pressure to oil pressure, then making brake's braking force larger.
for the DBM, it has DBM-10 and DBM-20 two modes. They are applied to clamp steel plate thickness is 10mm and 20mm in separately. on the other hand, there are left (L) and right (R) two types available according to its oil input port position. so there are total four models of hydraulic brake: DBM-10R, DBM-10L, DBM-20R, DBM-20L.
for the BST hydraulic booster, it also has two models: BST-2 and BST-4. They are equiped with different size of air cylinder head, so their increase oil pressure ratio is different, BST-4 is dual of BST-2.

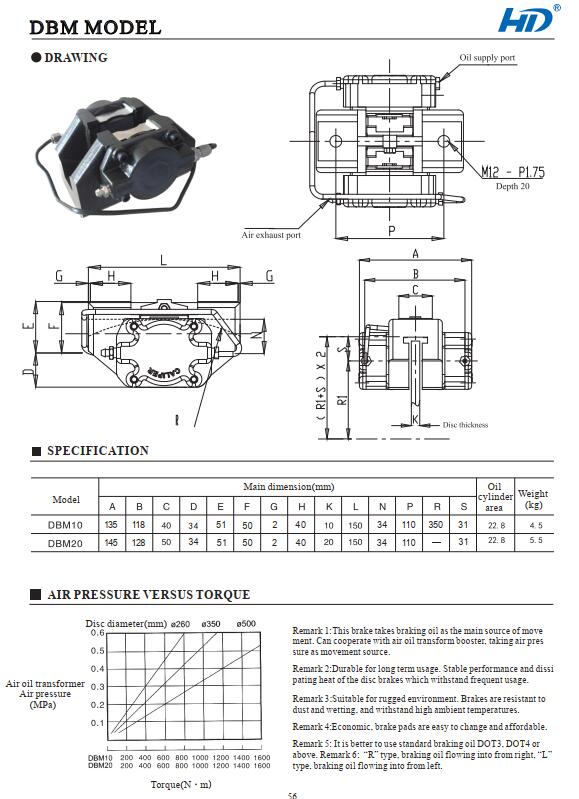

Technical data of hydraulic brake and air hydraulic booster:
