| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | DBF-8 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | DBF-8 |
| Max air pressure: | 0.6Mpa |
| Max torque: | 200N.m |
| Dimension: | 88mm*83mm |
| Friction pads material: | Non-asbestos |
| Working mode: | Clamp steel plate |
| Weight: | 1kgs |
Quick Details
Specifications

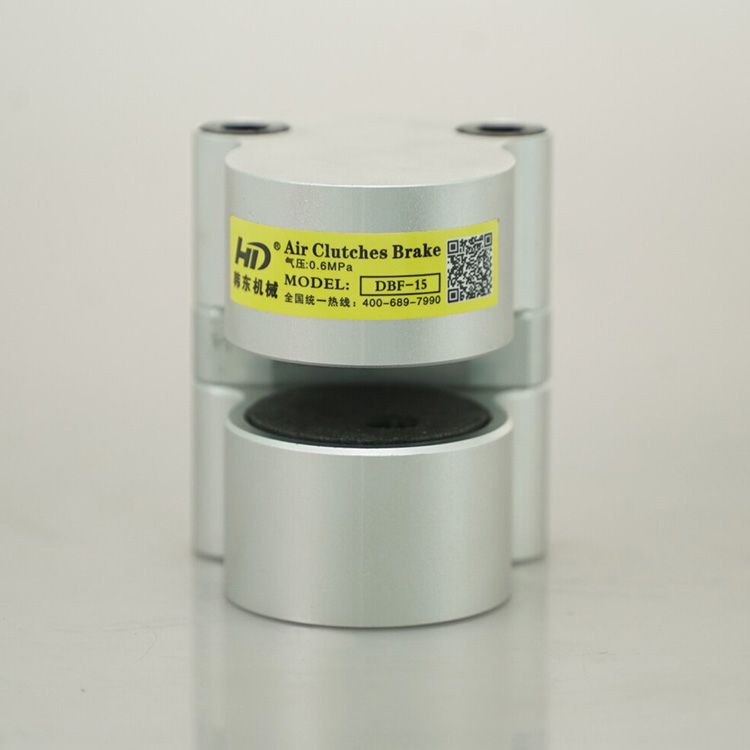

DBF pneumatic caliper disc brake is a kind of friction brake. It is used to clamp steel friction plate, so as to make rotating part stopped. It is small and flexible.
Disc mode brake, it is suitable for different installation methods. Large friction size and long service life. If installed some pieces of brakes on a disc, torque will be increased in several times accordingly.
Characters of DBF pneumatic caliper disc brake:
Characters of DBF pneumatic caliper disc brake:
Name: DBF modelAir caliper disc brake
Model: DBF-8,DBF-10,DBF-15
Weight: 1-1.3kg
Air pressure: 0.1bar-6bar
Torque: 1-200N.M or more
Technical data of DBF pneumatic caliper disc brake:
as to above technical data shown, we can see that DBF pneumatic caliper disc brake is with small torque. Braking steel disc diameter and air pressure determined its braking force. When steel disc plate diameter larger, DBF air brake's braking force is larger, too.
