| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | DBF-10 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | DBF-10 |
| Max air pressure: | 0.7Mpa |
| Max torque: | 200N.m |
| Braking disc thickness: | 10mm |
| Weight: | 1.2kgs |
Quick Details
Specifications

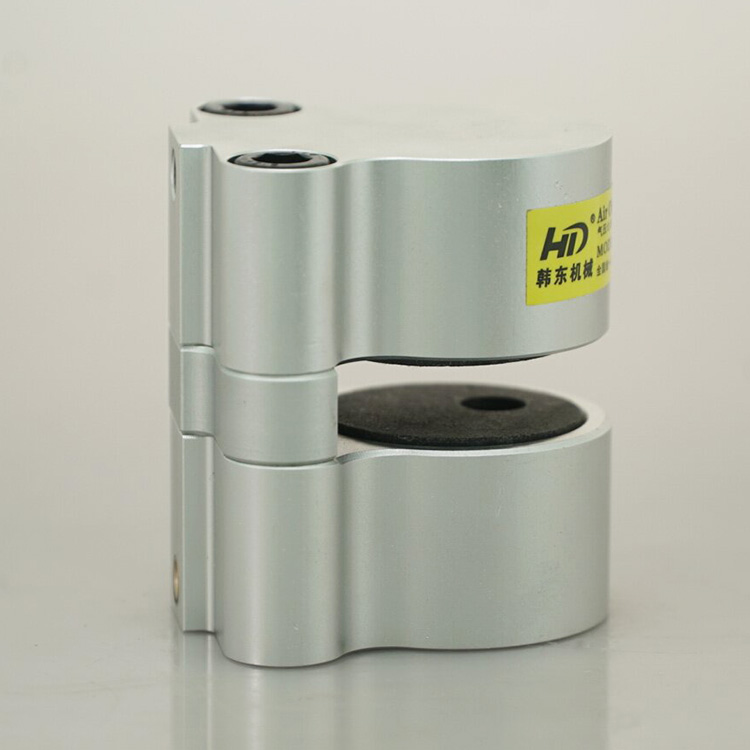

DBF pneumatic friction disc brake is widely applied for clamping steel plate. Two friction pads is made of non-asbestos friction material, it is with good quality.
Disc mode brake, it is suitable for different installation methods. Large friction size and long service life. If installed some pieces of brakes on a disc, torque will be increased in several times accordingly.

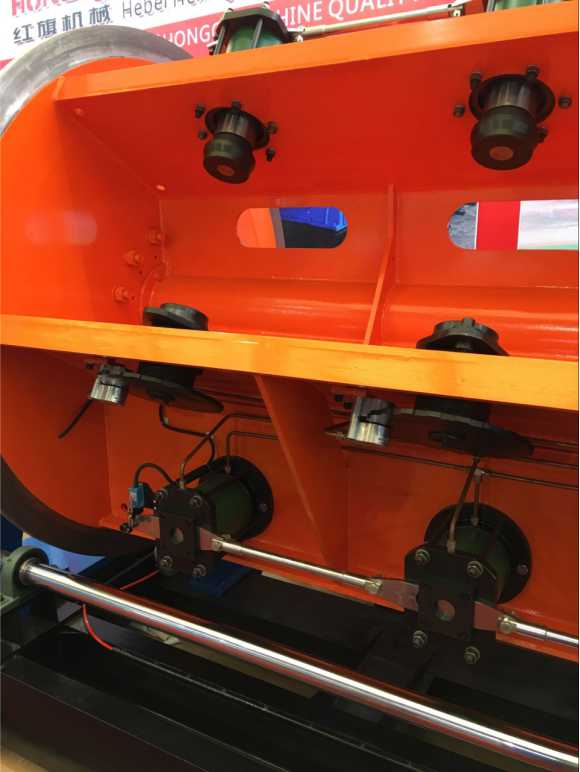

in this case, DBF pneumatic caliper disc brake is applied in wire winch machine. this small size DBF caliper disc brake is easy for installation, mounted it on a flange plate is ok.
DBF pneumatic caliper disc brake is driven by air pressure. after inputting air source, piston pushed two friction pads forward and then clamp rotating steel plate tightly, making plate stopped. When exhausting air pressure, two friction pads released, steel plate rotating as before.
DBF pneumatic caliper disc brake is driven by air pressure. after inputting air source, piston pushed two friction pads forward and then clamp rotating steel plate tightly, making plate stopped. When exhausting air pressure, two friction pads released, steel plate rotating as before.
