| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | DBG103 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | DBG103 |
| Max air pressure: | 0.6Mpa |
| Max torque: | 500N.m |
| Braking disc thickness: | 10mm |
| Friction pads material: | Non-asbestos |
| Working mode: | Air engagement |
| Weight: | 5kgs |
Quick Details
Specifications

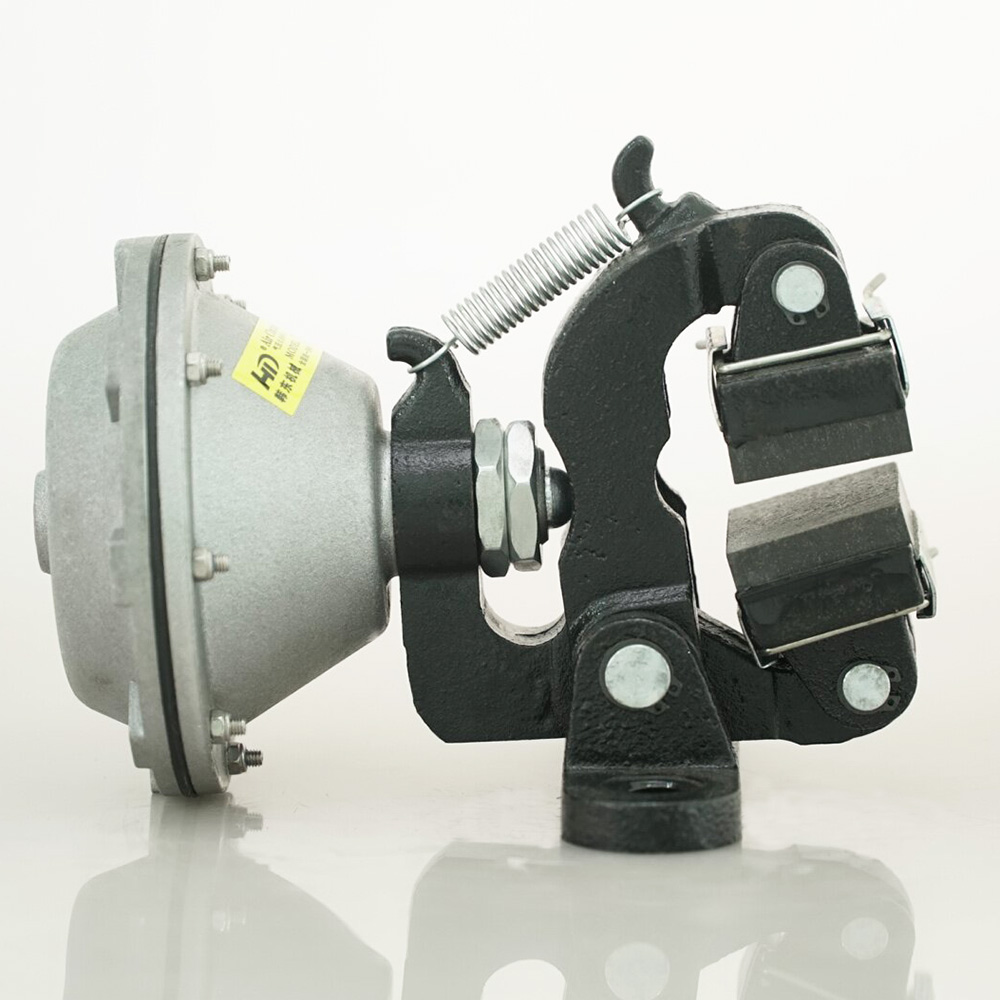

DBG vertical pneumatic caliper disc brake is an air engagement friction brake, it is used to clamp steel plate for stopping. There are six models of it: DBG103, DBG104, DBG105, DBG203, DBG204, DBG205. They are used to clamp steel plate thickness is 10mm and 20mm in separately.
Vertical type installation, save space, open-type friction plate good for heat dissipation.Economic air caliper disc brake offers stable, effective and adjustable braking force. Two-cut lining is easy for exchange, not contains asbestos, braking disc thickness 10-20mm available. Waterproof, dust-proof and heat resistance, can be frequent usage, function stable. Use air pressure as action resource, no electric spark, explosion-proof, safe and reliable. Braking force is adjustable, braking torque range is wide. Good dissipation, lining is wearable, two-cut type is easy for exchange.
Technical data of this DBG vertical pneumatic caliper disc brake:
Technical data of this DBG vertical pneumatic caliper disc brake:
as above specification and technical data, we can see that DBG103, DBG104, DBG105 are suitable for clamping steel disc thickness 10mm, and DBG203, DBG204, DBG205 are applied to clamp steel disc thickness 20mm.
on the other hand, their braking force is varied as steel disc diameter and air pressure, steel disc thickness is no influence. When steel disc diameter is 260mm, DBG103 and DBG203 braking force is 180N.M; steel disc diameter is 600mm, DBG103 and DBG203 braking force is about 520N.M
on the other hand, their braking force is varied as steel disc diameter and air pressure, steel disc thickness is no influence. When steel disc diameter is 260mm, DBG103 and DBG203 braking force is 180N.M; steel disc diameter is 600mm, DBG103 and DBG203 braking force is about 520N.M
