| Brand Name: | Handong |
|---|---|
| TR50: | carbon steel |
| Model Number: | QDE-3 |
| Place of Origin: | China (Mainland) |
| HS code: | 8483600001 |
| Model: | QDE-3 |
| Max air pressure: | 0.6Mpa |
| Max torque: | 12500N.m |
| Braking disc thickness: | 25.4mm |
| Friction pads material: | Non-asbestos |
| Working mode: | Air engagement |
| Weight: | 57kgs |
Quick Details
Specifications

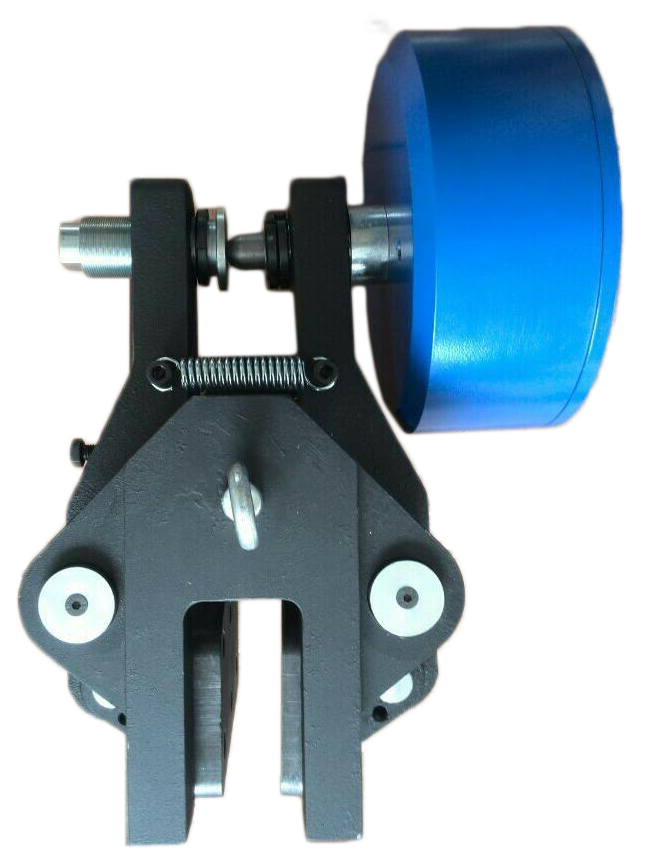

QDE high torque pneumatic friction disc brake is with braking force. Its structure is larger than regular pneumatic brake. There are two models of this brake: QDE-3 and QDE-4.
this QDE horizontal type air caliper disc brake torque is nearly twice of vertical type air caliper disc brake. Equipped with elastic springs to make sure braking balance, braking disc thickness is 25.4mm-40mm. Resistant to water, oil and dust. It can produce high torque for usage.
Technical data of this QDE high torque pneumatic caliper disc brake:
Technical data of this QDE high torque pneumatic caliper disc brake:
this QDE pneumatic caliper disc brake can produce high torque, max can be reached to 23000N.m. as to above technical data, we can see that there are two models of this QDE air brake, including QDE-3 and QDE-4. They are used to clamp steel plate thickness is 25.4mm and 40mm in separately.
QDE pneumatic caliper disc brake is air engagement, that is to say, it is normal release. after inputting air source, this brake will be braked for clamping. Its braking force is determined by steel disc diameter and air pressure, when steel disc diameter is 610mm, QDE-3 braking force is 5000N.M, QDE-4 braking force is 9000N.m. When braking disc diameter is 1370mm, QDE-3 braking force is 12500N.M, QDE-4 braking force is 23000N.m. and we can see that QDE-4 braking power is nearly twice of QDE-3.
QDE pneumatic caliper disc brake is air engagement, that is to say, it is normal release. after inputting air source, this brake will be braked for clamping. Its braking force is determined by steel disc diameter and air pressure, when steel disc diameter is 610mm, QDE-3 braking force is 5000N.M, QDE-4 braking force is 9000N.m. When braking disc diameter is 1370mm, QDE-3 braking force is 12500N.M, QDE-4 braking force is 23000N.m. and we can see that QDE-4 braking power is nearly twice of QDE-3.
