| Brand Name: | DSV |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Casting |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | DSV-DVC |
| Place of Origin: | China (Mainland) |
| Port Size: | DN40-DN700 |
| Media: | Water |
| Power: | Hydraulic |
| Structure: | Check |
Quick Details
Specifications

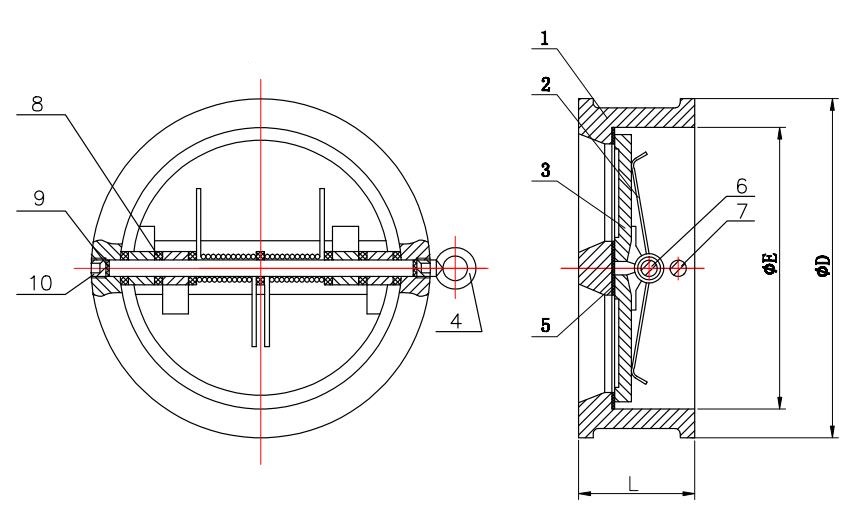

NO. |
PART |
MATERIAL |
1 |
Body |
GG25/GGG40/SS304/SS316 |
2 |
Spring |
Stainless steel |
3 |
Disc |
SS316/SS304/WCB/C954 |
4 |
Ring |
Steel |
5 |
Seat Ring |
NBR/EPDM/VITON |
6 |
Shaft-1 |
SS316/SS304 |
7 |
Shaft-2 |
SS316/SS304 |
8 |
Gasket-1 |
PTFE |
9 |
Gasket-2 |
NBR |
10 |
Screw |
Steel |
DN(mm) |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 | |
L (mm) |
43 |
43 |
46 |
64 |
64 |
70 |
76 |
89 |
114 |
114 |
127 |
140 |
152 |
154 |
178 |
229 | |
D(mm) |
65 |
65 |
80 |
94 |
117 |
145 |
170 |
224 |
265 |
312 |
360 |
410 |
450 |
500 |
624 |
720 | |
Φ(mm) |
PN10 |
92 |
107 |
127 |
142 |
162 |
192 |
218 |
273 |
328 |
378 |
438 |
489 |
532 |
585 |
690 |
800 |
PN16 |
92 |
107 |
127 |
142 |
162 |
192 |
218 |
273 |
329 |
384 |
446 |
491 |
550 |
610 |
720 |
||
