| Power: | Electric |
|---|---|
| Brand Name: | Chongde |
| ContactEmal: | wudan@shandongchongde.com |
| Place of Origin: | China (Mainland) |
| Material: | 20crmnti |
| Run out: | 0.005mm, 0.008mm |
| Carben depth: | >0.8mm |
| Taper tolerance: | <=AT3 |
| Hardness: | 56-60HRC |
Quick Details
Specifications

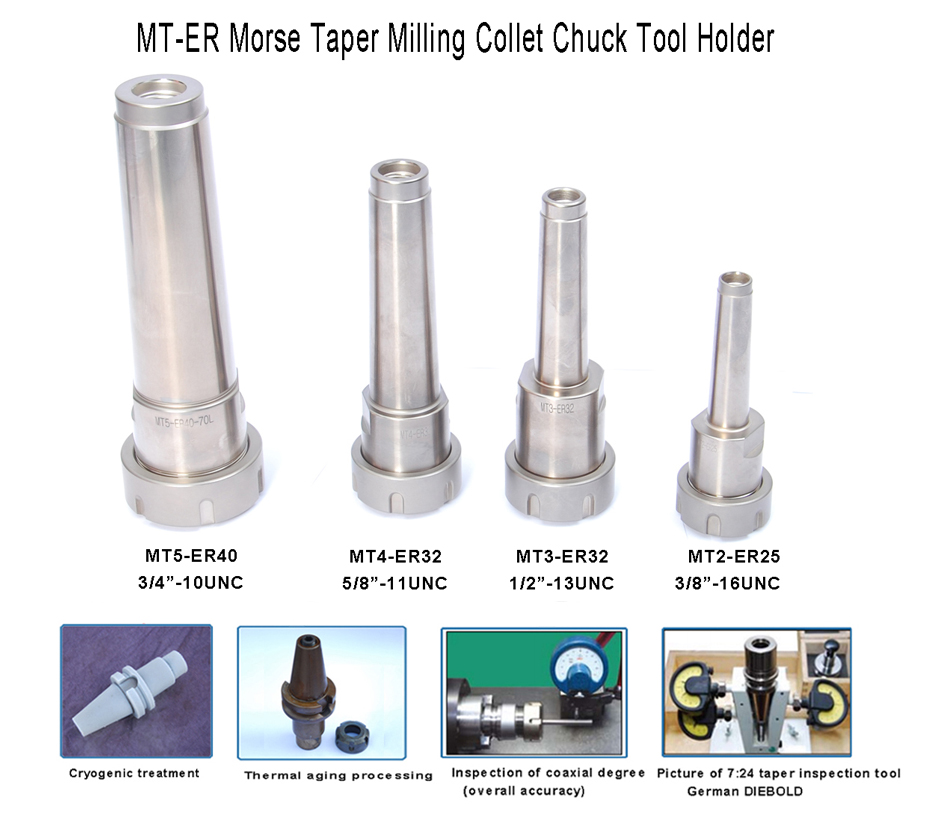

Chongde MT2 ER25 Morse Taper Milling Collet Chuck Tool Holder
Morse Taper Milling Collet Chuck Arbor MT-ER, drill chuck adapter, ER collet clamping tool holder of various sizes, high speed and High precision machining. High Precision MT-ER Shank Tool Holder. for the market for automatic tool change device.
Morse Taper Tool Holders for mechanical spindle and cutting tool and other accessory tool connection.
Is a simple, Popular spindle shank connection standard, mainly MT2 MT3 MT4 MT5... Etc.. Mold industry, and high-speed Engraving machine, used more.
1. Material: 20CrMnTi
2. Run out of the inside shank cone ≤0.0001"
3. Constructed of alloy steel hardened to 56 60 HRC for long, durable service life
4. Rear thread for pull stud is 3/8" - 16UNC
5. Surface: Nickel coating and polishing nickel coating.
Anti-rust, Anti-corrosion, Durability better
Coating adhesion strong, enhance hardness, and anti-rust better in different surroundings, such as acid, alkali, ammonia, salt etc.
Overall nickel coating, including inside and outside cone, even if you do not take any anti-rust actions, it will not rust either,
Don't influence processing precision and spindle.
Improve cleanness, precision more stable, surface more smooth, feel more comfortable and appearance nicer.
Cryogenic treatment
-384.8℉ long cryogenic, nearly all of the residual austenite into martensite.
Carbide precipitation of nanoscale particles, increasing the hardness and toughness.
Reducing residual stresses.
Wear resistance significantly improved.
Thermal aging processing
Long stereotyped thermal limitation removal of grinding residual stress.

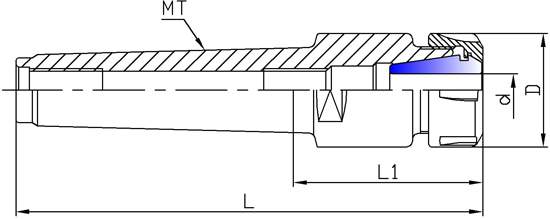

| Brand Name | Chongde | Size | MT2-ER20 |
| SKU | CD010131-0220040 |
Collet size | ER20 |
| TIR |
0.0001" | Collet Range(d) |
1/32"-1/2" |
| Net Weight |
0.48 LB | Collet Nut Diameter(D) | 1.299" |
| Gross Weight |
1.08 LB | Projection (L1) | 2" |
| Meas |
1.5" x 1.5" x 5.5" | Rear Thread(T) |
3/8"-16UNC |
Package
1.Package: plastic boxes and also can pack according to your requests.
2.Delivery time:Sample within 7 days and others 35 days.
