| Voltage(V): | 6 ~ 400V DC |
|---|---|
| Type: | Gear Motor |
| Certification: | CCC,CE,ROHS |
| Usage: | Boat,Car,Electric Bicycle,Home Appliance |
| Brand Name: | DYD MOTOR |
| Efficiency: | |
| Output Power: | up to 100W |
| Continuous Current(A): | within 25A |
| Speed(RPM): | 1 ~ 999rpm |
| Protect Feature: | Waterproof |
| Commutation: | Brush |
| Construction: | Permanent Magnet |
| Torque: | up to 85N.m |
| Model Number: | 72JX850K/71ZY110 |
| Place of Origin: | China (Mainland) |
| Keywords: | DC planetary gear motor |
| Noise level: | Very low |
| Shaft material: | Customer's needs |
| IP rating: | IP54, IP55, IP65, IP68 |
| Gearbox type: | Planetary |
| Color: | Black or customized |
| Motor diameter: | 71MM |
| Warranty: | 1 year |
| Option: | Mgnetic/optical encoder; brake; connector |
Quick Details
Specifications

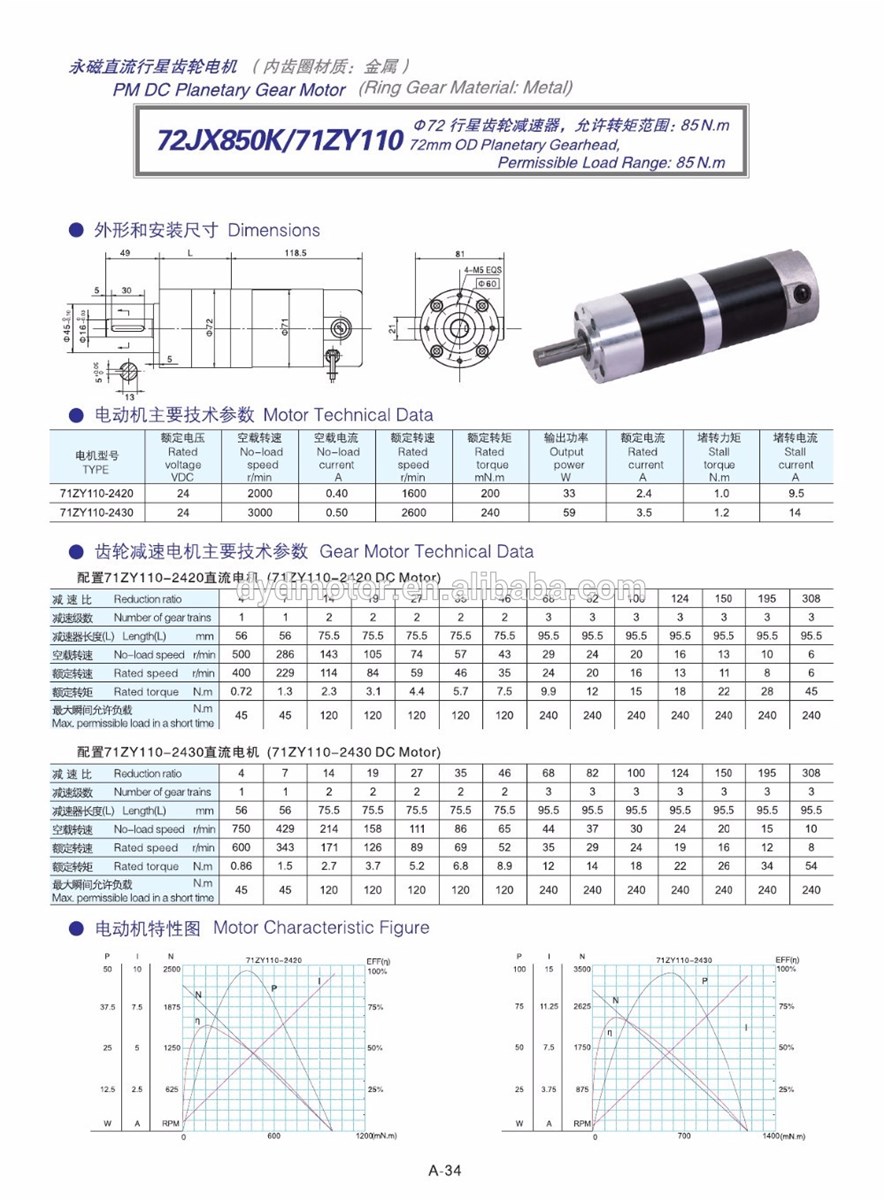

DC Planetary Gear MotorModel: 72JX850K/71ZY110
Voltage: 6 ~ 400V DC
Typical application:110V & 220V motor forSwitch gearRated torque up to 85N.M for continuous running
CE, Reach and RoHS approval
Optional components: magnetic/optical encoder; brake; connector
Customized shell color, shaft dimensions and technical specifications are available upon requested.
Typical application, 110V or 220V for Switchgear
