| Voltage(V): | 6 ~ 400V DC |
|---|---|
| Type: | Gear Motor |
| Certification: | CCC,CE,ROHS,UL,Reach |
| Usage: | Boat,Car,Electric Bicycle,Fan,Home Appliance |
| Brand Name: | DYD MOTOR |
| Efficiency: | |
| Output Power: | up to 150W |
| Continuous Current(A): | within 25A |
| Speed(RPM): | 1 ~ 500rpm |
| Protect Feature: | Totally Enclosed |
| Commutation: | Brush |
| Construction: | Permanent Magnet |
| Torque: | up to 10N.m |
| Model Number: | 63JW/63ZY105; 63JW/63ZY125; |
| Place of Origin: | China (Mainland) |
| Keywords: | DC worm gear motor |
| Noise level: | Very low |
| Shaft material: | Customer's needs |
| IP rating: | IP54, IP55, IP65, IP68 |
| Gearbox type: | Worm/right angle |
| Color: | Black or customized |
| Motor diameter: | 63mm, 60mm |
| Warranty: | 1 year |
| Typical application: | sliding door; automatic door |
| Option: | Encoder/brake |
Quick Details
Specifications
DC Right Angle Gear Motor 12V, 24V

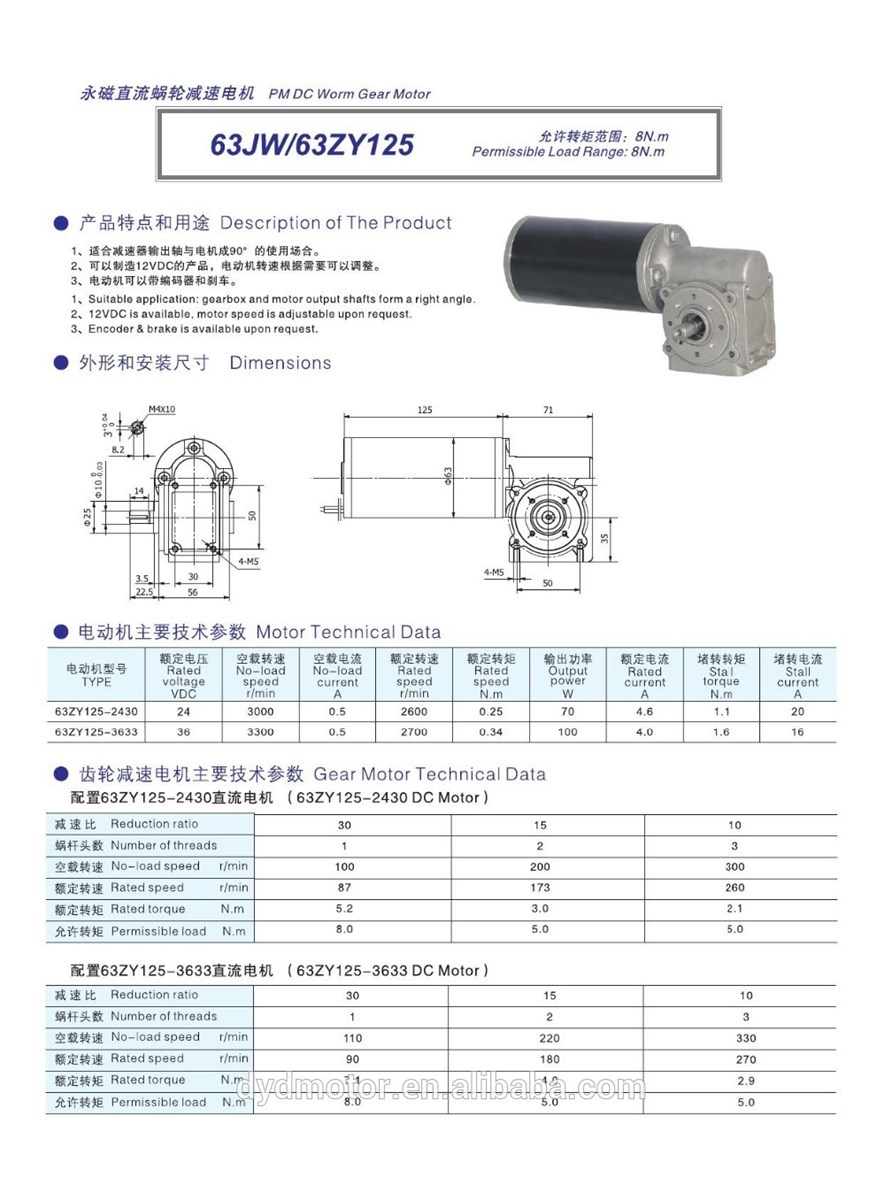

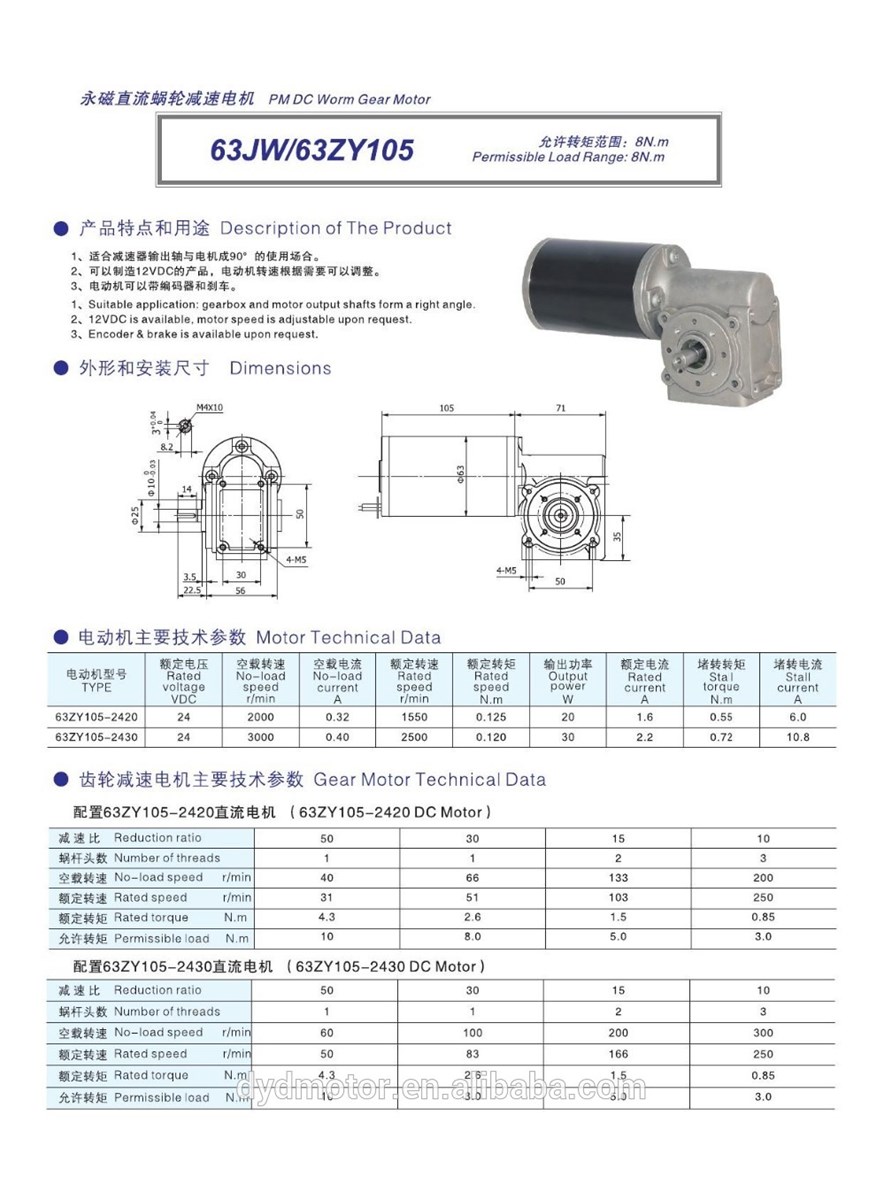

Model:63JW/63ZY105;63JW/63ZY125;
Motor outer diameter: 63mm
Worm gear reduction ratio: 10:1, 15:1, 30:1, 50:1
Motor length:105mm; 125mm
Rated power up to 150W
Typical Application: Automatic Sliding Door; gate systemOptional components: magnetic/optical encoder; power on-power-off brake; drive pulley; cable connector
CE, Reach and RoHS approval
