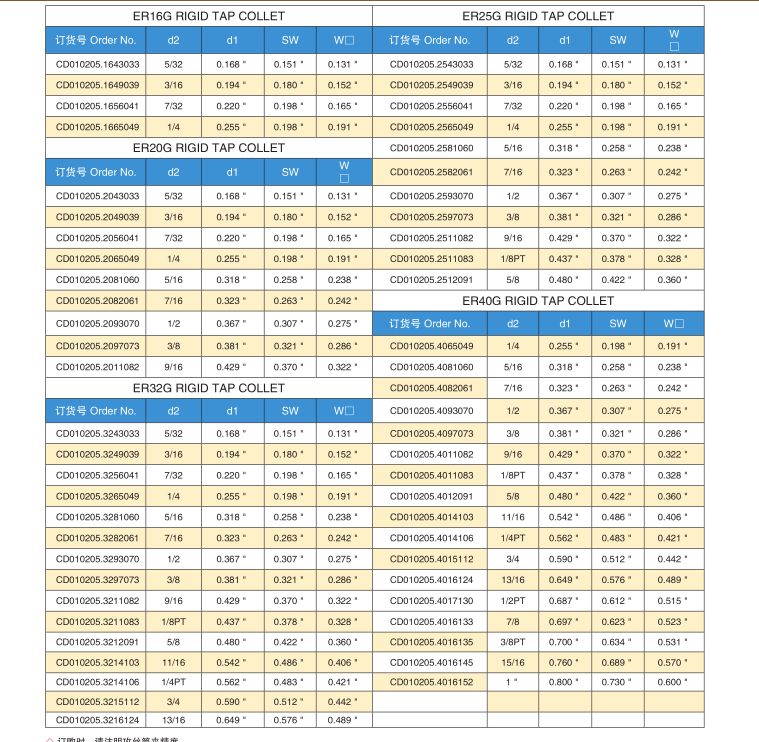

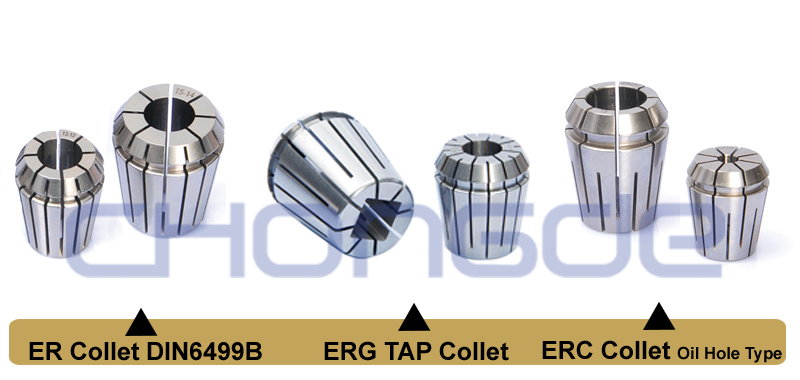

ER32G RIGID TAP COLLET INCH SIZE DIN6499B

Quenching Tapping Collet, clamping tools, New brand packaging, new on-line, new technology, accuracy, quality, durability, stability, stability, ERG TAP Spring COLLET.

Special Force has developed a new process quenching treatment for  spring collets, which has a decisive influence on product accuracy, service life and stability.
Quenching is a high-frequency aging treatment added to the heat treatment, -196℃ degrees cryogenic treatment, these are not reflected in the appearance, but have a decisive impact on the service life and stability of the product. Processing technology, full-line CNC internal hole grinding machine, compared with the products processed by ordinary internal hole grinding machine, the inner hole straightness is better, the finish is better, and the precision is needless to say.

CNC lathe parts/machine tools accessories ERG tap spring collet(INCH SIZE)
1) Runout of our ERG collet are within 0.008mm/0.02mmm.

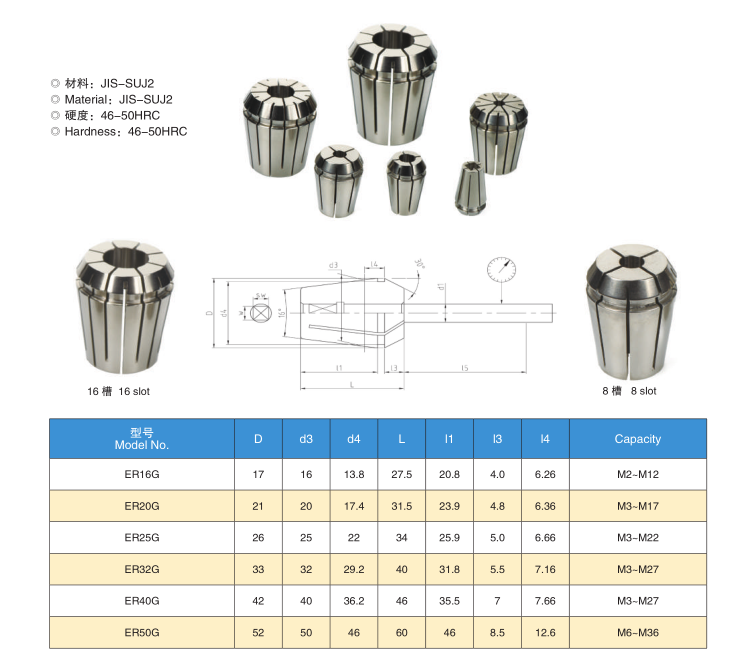

2) ER16G, ER20G, ER25G, ER32G, ER40G and ER50G collet.
3) Made of high quality steel:JIS-SUJ2.
4) Packing:Inner packing is plastic or paper box,the outer packing is cartons.
5) We normally supply three kinds of accuracy: first accuracy 0.008mm,second accuracy 0.02mm. and third accuracy 0.02mm.the highest accuracy is 0.008mm.
6) Inspection:100% collet inspection.

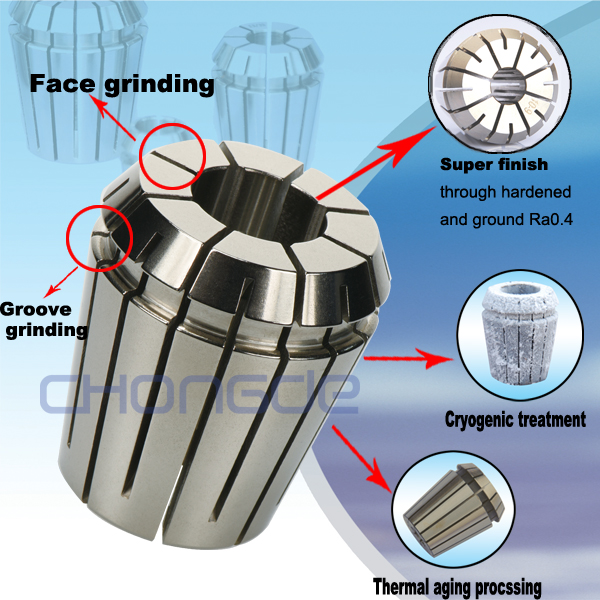

Cryogenic treatment

1) -196℃,and ultra long cryogenic treatment make the nearly all retained austenite change to martensite.
2) the precipitated nano carbide particles increase the hardness and toughness of the material.
3) Remove the internal stress of the residual material.
4) after cryogenic treatment,the wear resistance of products is significantly improved,and the accuracy and service life of repeat clamping can be increased by about 50%.
