| Voltage(V): | 6 ~ 400V DC |
|---|---|
| Type: | Tubular Motor |
| Certification: | CCC,CE,ROHS,Reach |
| Usage: | Boat,Car,Electric Bicycle,Fan,Home Appliance |
| Brand Name: | DYD MOTOR |
| Efficiency: | |
| Output Power: | up to 500W |
| Continuous Current(A): | within 50A |
| Speed(RPM): | 1 ~ 999rpm |
| Protect Feature: | Totally Enclosed |
| Commutation: | Brush |
| Construction: | Permanent Magnet |
| Torque: | up to 500N.m |
| Model Number: | 82JXB1200K/80ZY125 |
| Place of Origin: | China (Mainland) |
| Keywords: | DC planetary gear motor |
| Noise level: | Very low |
| Shaft material: | Customer's needs |
| Gear material: | Plastic/steel/ powder metal |
| Gearbox type: | Planetary |
| Color: | Black or customized |
| Motor diameter: | 80MM |
| Warranty: | 1 year |
| Option: | Magnetic/optical encoder; brake; connector |
Quick Details
Specifications

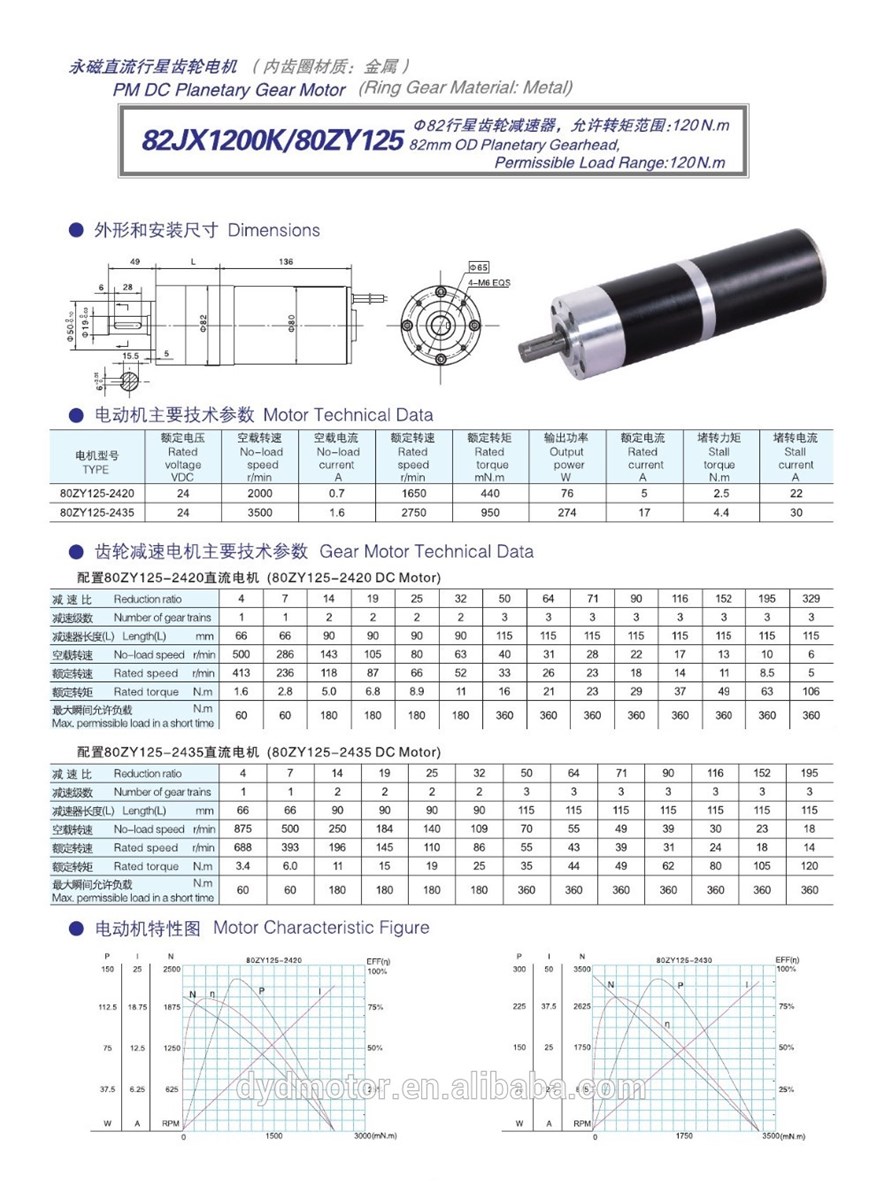

250W, 300W High Torque PM DC Planetary Gear MotorModel: 82JX1200K/80ZY125
Voltage: 6 ~ 400V DC
Rated torque up to 120N.M for continuous running and 500N.M for intermittent running
Optional components: power-on/ power-off brakes; magnetic/optical encoder; connector
Certificates: ISO9001, ISO14001; CCC, CE, RoHS
International express: Fedex, DHL, TNT
Customized shaft dimensions and technical specs. Are available.
