Product Main

Quick Details

Voltage(V): 6 ~ 400V DC
Type: Gear Motor
Certification: CCC,CE,ROHS,UL,Reach
Usage: Boat,Car,Electric Bicycle,Fan,Home Appliance,pool cover system/ solar tracking system
Brand Name: DYD MOTOR
Efficiency:
Output Power: up to 1500W
Continuous Current(A): within 50A
Speed(RPM): 1 ~ 999rpm
Protect Feature: Totally Enclosed
Commutation: Brush
Construction: Permanent Magnet
Torque: up to 1000N.m
Model Number: 92JX1500K/80ZY125
Place of Origin: China (Mainland)
Keywords: high torque DC planetary gear motor
Noise level: Very low
Shaft material: Customer's needs
IP rating: IP54, IP55, IP65, IP68
Gearbox type: Planetary
Color: Black or customized
Motor diameter: 80MM
Warranty: 1 year
Typical application: pool cover system
Option: Encoder/brake

Specifications

High torque DC planetary gear motor

the 80ZY125 model of brushed DC motor is equipped with a 92mm planetary gearbox

Options

Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.

Power-on or power-off type electromagnetic brake

Capacitor& resistor for EMC suppression

Special shaft material and dimensions

Custom design; OEM products available

Features

Ball bearing at output shaft

Magnetic field generated by permanent magnets

Operation in both directions of rotation(CW & CCW)

Speeds ranging up to 10,000 RPM

Various gear ratios enable either speed reduction or to increase the torque capability

Advantageous torque with minimum space requirements

Suitable for continuous, reversing and intermittent operation

Can be installed in any mounting position

TYpical applications

Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.

Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,

the automotive industry: truck tarp systems, pumps, electric chair, jack, etc.

Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.

Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.

Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.

Certificates & Qualifications

REACH, CE & CCC, RoHS, ISO9001: 2015, ISO14001: 2015, OHSAS18001: 2007

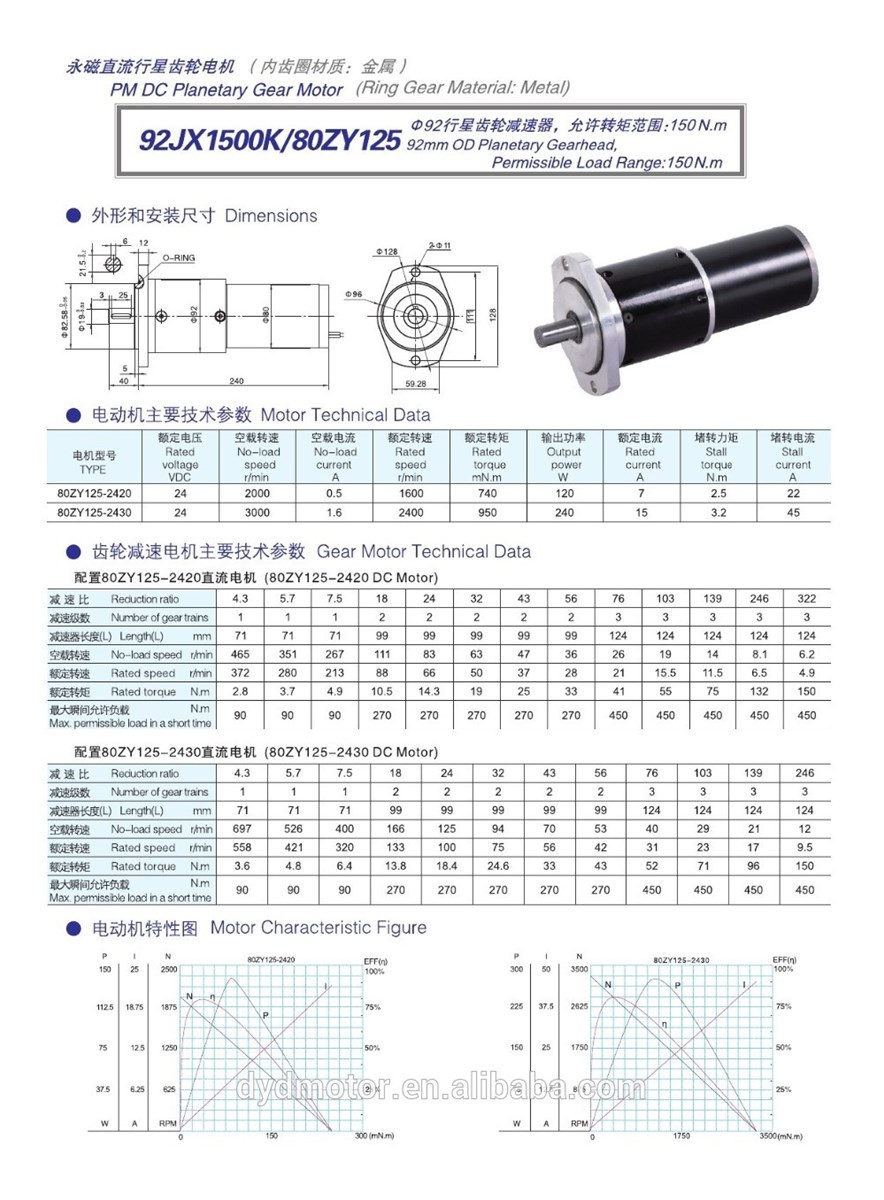

high torque DC planetary gear motor 92JX1500K80ZY125
