| Size: | 1A1 |
|---|---|
| Type: | Abrasive Disc |
| Brand Name: | Moresuperhard |
| Material: | diamond |
| Grit: | 3000 |
| Model Number: | 1A1 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

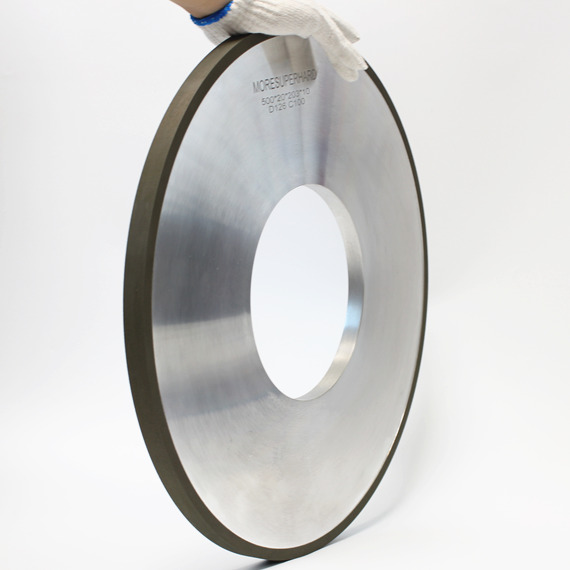

Resin Diamond Wheel for PDC Cutter / Drill Bits Grinding
More Superhard provides precise solutions for cylindrical grinding PDC cutter, repairing PDC drill bits in Oil & Gas industry. We can supply diamond tools include,
Vitrified Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
Cylindrical Diamond Wheel for PDC Cutter chamfer grinding
Model: 1A1 diamond wheel (diameter up to 1100mm)
Vitrified Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
Cylindrical Diamond Wheel for PDC Cutter chamfer grinding
Model: 1A1 diamond wheel (diameter up to 1100mm)
Polycrystall Diamond Compacts PDC grinding - Resin Bond Diamond Wheel
We supply diamond tools for the oil and gas industry, providing precise solutions for grinding wheels for PCD/carbide, wear parts and gage blocks for oil & gas drill manufacturing. Especially Centerless grinding wheels, OD grinding products, as well as grinding wheels for PCD chamfer grinding
Specifications of diamond cylindrical wheel
| Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
| 400 | 16 inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 inch | 304.8 | 50 | 10 |
| 914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 inch | 304.8 | 50 | 10 |
| Other specification can be made according to customer requirement | ||||
Cylindrical Grinding PDC Cutter - Vitrified bond Diamond Wheel
Vitrified diamond cylindrical wheel for rough grinding cylinder of polycrystalline diamond compacts ( pdc cutter). Compared with resin diamond wheel, thr vitrified diamond wheel lead to 35% grinding cost reduced, 40% grinding time of each pdc saved, and the size precision of pdc improved.
Model |
D (mm) |
T (mm) |
H (mm) |
X (mm) |
1A1 |
350 |
40 | 127 |
10 |
| 400 | 40 50 | 203 | 10 | |
400 |
40 50 | 305 | 10 |
Centerless Grinding Wheel for Precision Grinding PDC (polycrystalline diamond compacts)
| Model | D (mm) | T (mm) | H (mm) | X (mm) |
| 1A1 6A1 9A1 |
300 | 150 | 120 | 5, 10 |
| 350 | 125 | 127 | 5, 10 | |
| 400 | 150 | 203 | 5, 10 | |
| 455 | 205 | 228.6 | 5, 10 | |
| 500 | 150 | 305 | 5, 10 | |
| 650 | 380 | |||
| Round run-out of grinding wheel ≤0.02mm Straightness ≤ 0.02 mm | ||||
