| Brand Name: | Beion |
|---|---|
| Temperature of Media: | Low Temperature |
| Material: | Stainless Steel |
| Pressure: | Medium Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | P20T24-02# |
| Place of Origin: | China (Mainland) |
| Port Size: | 20mm |
| Media: | Acid |
| Power: | Solenoid |
| Structure: | Pilot |
| working voltage: | 24VDC |
Quick Details
Specifications

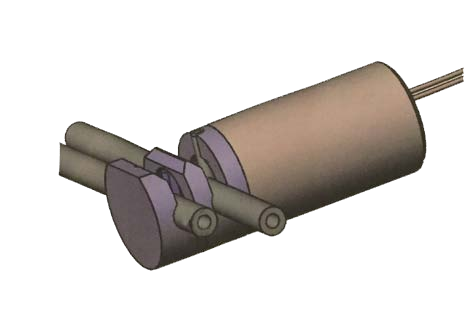

Description for P Series of Pinch Valve:
L Solenoid operated, widely applied to applications such as IVD, medical instruments, analytical instruments, etc.
L Long life span(valve: 20,000,000 times, tubing >1000,000 times)
L Low consumption/high heat dissipation rate
L Regular open-and-close working mode
L Zero dead volume, effectively prevents cross-infection
L Safe and reliable tube fixing mode, without fluid path cutting off
L Multiple tubes applied to various chemical and corrosive resistance requirements
L Optimal closing force, specialized silicone tube fitted which is located in the bottom groove of pinch valve body,accurately designation and processing technic making the tube is clamped more stable without extra clamping devices to fix the tube.
L Multiple specifications of pinch valves, P series pinch valve and FT series pinch valve, 2 way(Normally open/Normally close) and 3 Way (one pipe side for normally open and the other pipe side for normally close) for both series, fitted with tubes which different specifications are available.
Specification:
Valve Types & Weight | ||
ValveType |
Overall Dimensions |
Weight |
P20 |
0.75 inches |
2 oz(57g) |
P25 |
1.00 inches |
5 oz(142g) |
Parameters for 3 Way Pinch Valve | |||||
Valve Type |
Soft Tube Size |
Structure |
Voltage |
Power @ 70.F(21℃) |
Current @ 70.F(21℃) |
P20 |
I.D.≥1/32" |
3-way |
12 VDC |
4.0 watts |
0.31 amps |
P20 |
I.D.≥1/32" |
3-way |
24 VDC |
4.0 watts |
0.16 amps |
P25 |
O.D≥3/16" |
3-way |
12 VDC |
4.0 watts |
0.66 amps |
P25 |
O.D≥3/16" |
3-way |
24 VDC |
4.0 watts |
0.34 amps |
Structure and Pressure Range |
| |||||
Valve Type |
Tube Type |
2-Way (NC) |
2-Way (NO) |
3-Way(T) |
Minimum Pressure |
Maximum Pressure |
P20 |
-01 |
√ |
√ |
√ |
0 PSI |
15 PSI |
P20 |
-02 |
√ |
√ |
√ |
0 PSI |
15 PSI |
P25 |
-05 |
√ |
√ |
√ |
0 PSI |
20 PSI |
1 |
Valve Type |
P20,P25,FT20,FT25 |
2 |
Working Status |
Normally Close(NC),Normally Open(NO),3-Way(T) |
3 |
Voltage |
12VDC,24VDC,220VAC |
4 |
Tube Type |
01,02,03,05 |
5 |
Material of Tube |
S(Specialized silicone tube),#(No tube),P(PharMed BPT) |
6 |
Additional Function |
Q(Mute) |
Pinch Tube Diameter &Product Number | ||||||
Suffix Number for Pinch Valve |
Fitted Pinch Tube Specification Number |
Silicone Tube |
Specialized C-Flex |
> |
> |
Wall thickness (in/mm) |
-01 |
10025-01/10026-01 |
√ |
√ |
1/32"/0.79mm |
3/32"/2.38mm |
1/32"/0.79mm |
-02 |
10025-02/10026-02 |
√ |
√ |
1/16"/1.59mm |
1/8"/3.17mm |
1/32"/0.79mm |
-03 |
10025-03/10026-03 |
√ |
√ |
1/16"/1.59mm |
3/16"/4.76mm |
1/16"/1.59mm |
-05 |
10025-05/10026-05 |
√ |
√ |
1/8"/3.17mm |
1/4"/6.35mm |
1/16"/1.59mm |
