| Pixels: | 4mm |
|---|---|
| Display Function: | Video |
| Tube Chip Color: | Full Color |
| Usage: | Indoor |
| Brand Name: | Meiyad |
| Screen Dimension: | Customized |
| Model Number: | Customized |
| Place of Origin: | China (Mainland) |
| Pixel Pitch: | 4mm |
| Pixel Density: | 62500 pixels/m2 |
| LED Driver: | MBI 5124 |
| Screen Size: | W 3072mm X H 3144mm |
| Scan Mode: | 1/16S |
| LED Type: | SMD 2121 |
Quick Details
Specifications
Product Description
Features of Meiyad P4 Customized Flexible Creative LED Screen
Creative LED display is specially designed for stage, bar, events, etc. to creates eye-catching effects. Unique shapes and stunning visual impact are just one of the highlights of creative LED display, the brand experience which is the most important goal of our custom solution.
- the third revolution, add silicone frame + mask. Embedded magnet, reduce stitching gap. Soft, thin, strong magnets column, patent soft mask.
- High Flexibility, can be any designed forrolled, bend and swing according to customers' needs.
- Super Thin and Light, every flexible LED module is weight of 80g.
- Easy to Splice, Install and Maintain
- No cabinet, drastically deducting the screen weight. We can design any shape of structure as you need.
- Wide application, can be used in so many fields and occasions, especially in all kinds of irregular buildings.

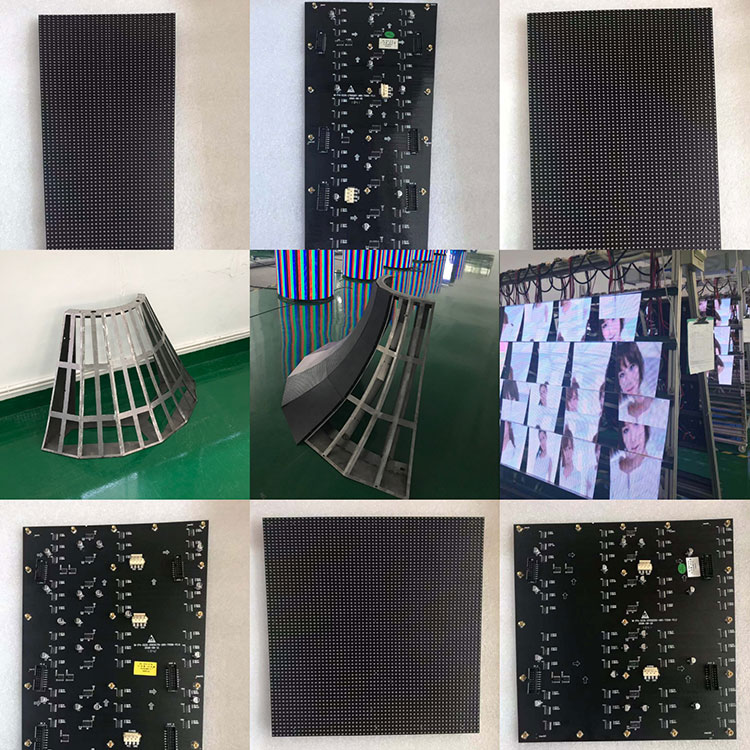

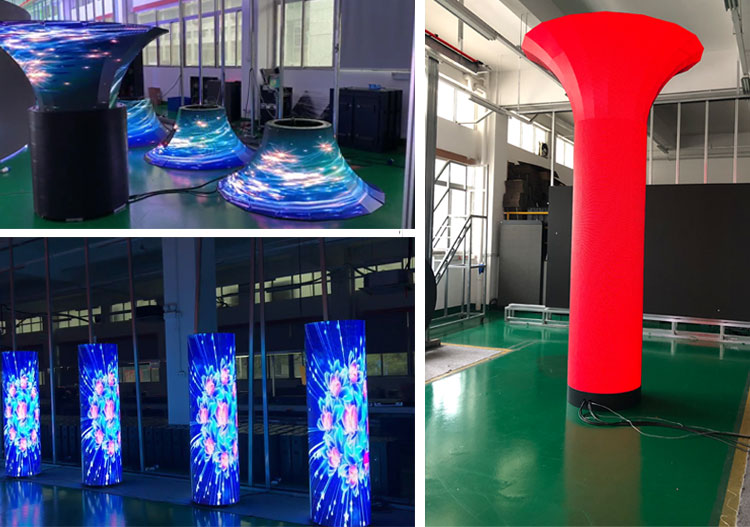

the trumpet LED screen is composed of conventional flexible LED modules and sector flexible LED modules.
Top Part:
P4 flexible sector module:
Top 316.19mm bottom 222.48mm side 320mm * 18 pcs
Top 222.48mm bottom 156.65mm side 321mm * 18 pcs
Top 179mm bottom 127.35mm side 321mm * 18 pcs
Bottom Part:
P4 flexible module: W 9 pcs * H 20 pcs
Cylinder LED screen perimeter: 2.304m
Cylinder LED screen height: 2.56m. Height can be customized!
Technical Parameters
Technical Parameters of P4 Indoor Trumpet Creative LED Screen
| Pixel Pitch | 4mm | Pixel Density | 62500 pixels/m2 |
| LED Driver | MBI 5124 | Screen Size | W 3072mm X H 3144mm |
| Area | 10.462 sqm | Drive mode | 16-bit constant current drive |
| Scan Mode | 1/16S | LED Type | SMD 2121 |
| LED Configuration | 1Red,1Green,1Blue | Brightness | 1500cd/m2 |
| Maximum power consumption | 6500W | Recommended Viewing Distance | ≥4m |
| Environment | Indoor | Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+80℃ | Rate Refresh | ≥1920 Hz |
| Horizontal Viewing Angle | +/-160° | Vertical Viewing Angle | +/-160° |
| LED Life Time | ≥100,000 Hours | Acoustic Noise | Fanless operation |
Cases
Cases of Customized Flexible LED Display P4 Indoor Trumpet Creative LED Screen

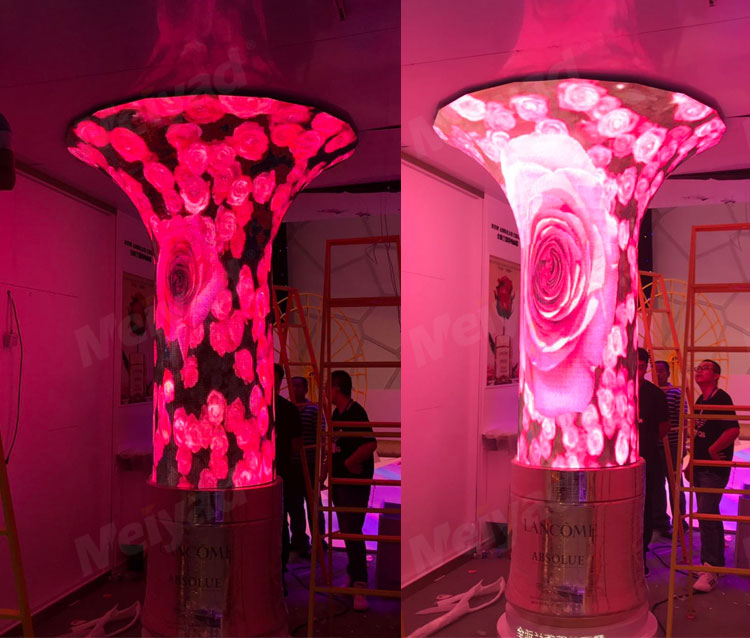

P4 Trumpet LED Display for Lancome Brand Shop
Cylinder diameter 0.733m, height 1.28m

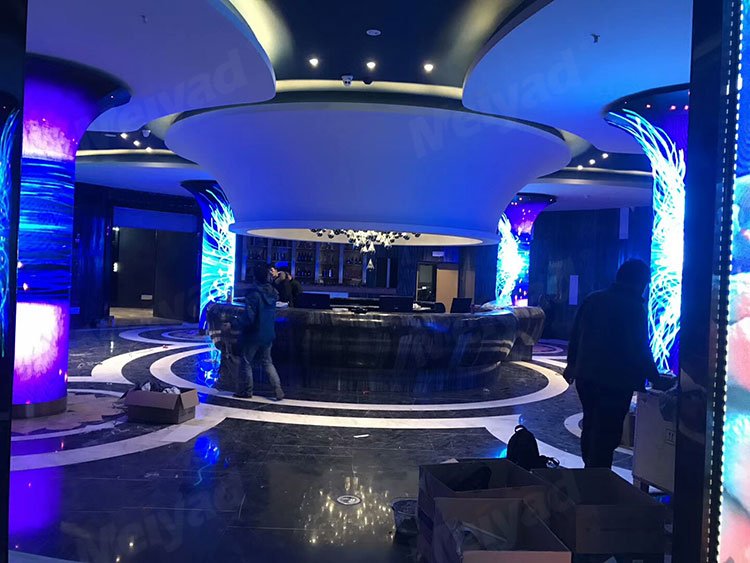

Indoor P4 Trumpet LED Screen Used for Emperor KTV, Taizhou, Zhejiang
Cylinder diameter 0.733m, height3.55m, each cylindrical area is about 10m2.
There are 4 cylindrical LED displays, total area is 40m2.
Packaging & Shipping
Packaging of Meiyad Customized Flexible LED Display P4 Indoor Trumpet Creative LED Screen
about Meiyad
Shenzhen Meiyad Optoelectronics Co, Ltd. Was founded in 2008. Meiyad is a national high-tech enterprise which focuses on R&D, manufacturing, retail and serving of . We have our own operation center and manufacturing base in Shenzhen.
Our products are widely used in indoor and outdoor commercial meida, sports venues, stage performances, special-shape creativity, etc. We also provide LED display integrated solutions. with the development of technology and manufacture workmanship, we have made many classical cases in the international market.
