| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Usage: | Butt fusion for plastic pipe and fittings |
| Weight: | 700kg |
| Voltage: | 350V |
| Brand Name: | ZEMOWELD |
| Dimensions: | 500mm |
| Frequency: | 50/60HZ |
| Model Number: | SMD-B500/200h |
| Place of Origin: | China (Mainland) |
| Pipe Size: | 200,225,250,280,315,355,400,450,500 |
| Heating Plate Max.Temp.: | 270 |
| Pressures Adjustable Ranges: | 0-8MPa |
| Working Voltage: | 350V , 50/60Hz , Three Phase |
| Heating Plate Power: | 9.35kw |
| Planing Tool Power: | 1.5kw |
| Hydraulic Unit Power: | 1.5kw |
| Total Power: | 12.35kw |
| Weight: | 700kg |
| WhatsApp: | +86-13933031824 |
Quick Details
Specifications
Applications

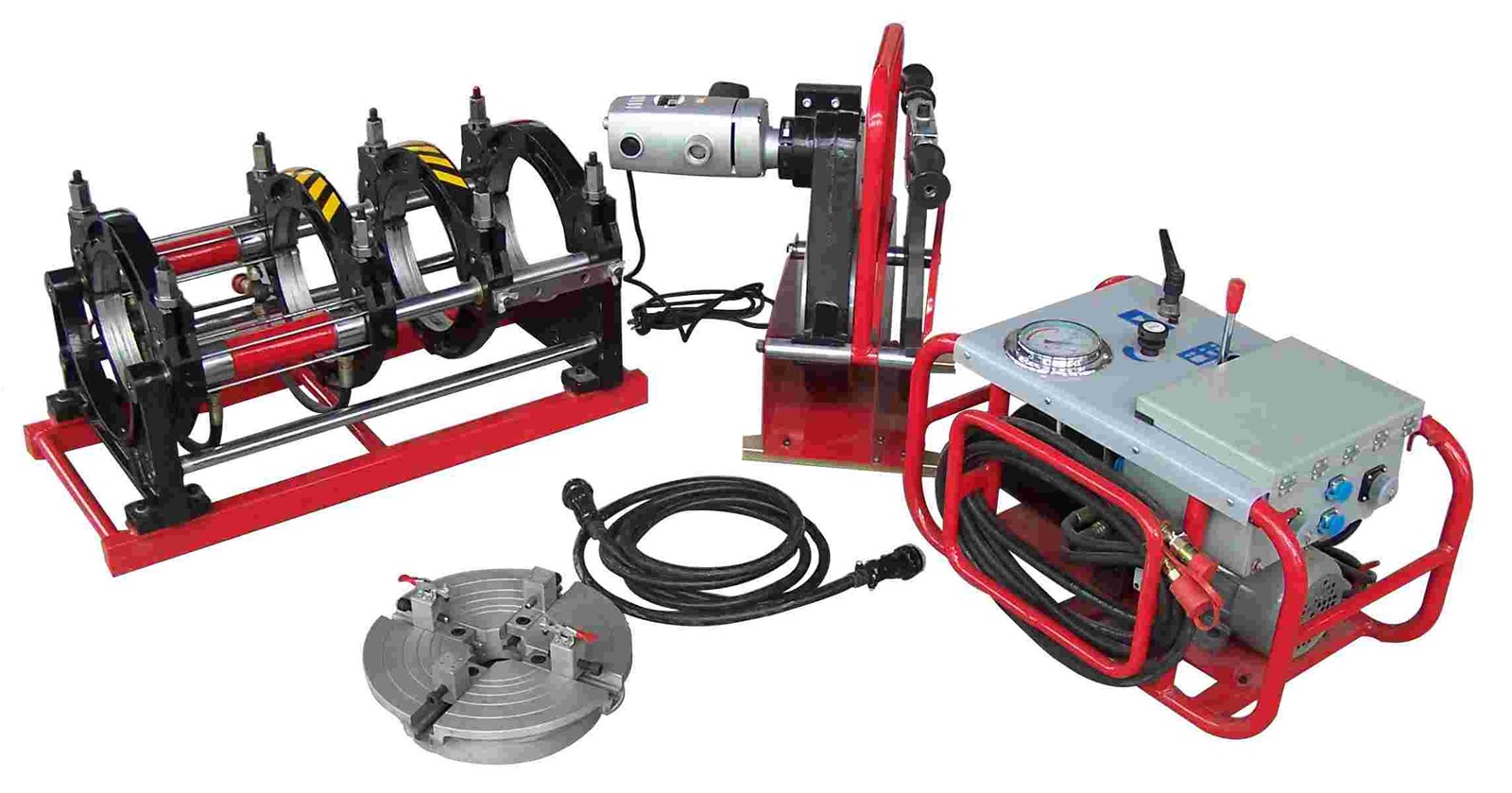

SMD-B500/200H HDPE Pipe Welding Machine is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts
Description
When our SMD-B500/200H HDPE Pipe Welding Machine welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters.
SMD-B500/200H HDPE Pipe Welding Machine Technical Parameters
Model |
SMD-B500/200H | |
Pipe size (mm) |
200,225,250,280,315,355,400,450,500 | |
Heating plate Max. Temperature |
270C | |
Temp.Deviation in surface (170-250 C) |
≤±7C | |
Pressures Adjustable Ranges |
0-8Mpa | |
Working Voltage |
380V, 50/60HZ, three phase | |
Heating plate power |
9.35KW | |
Planing tool power |
1.5KW | |
Hydraulic unit power |
1.5KW | |
Total Power |
12.35KW | |
Weight |
700KG | |
Packing |
Cases |
4 plywood cases |
Volume |
4.43CBM | |
Guarantee and Service
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
