Applications

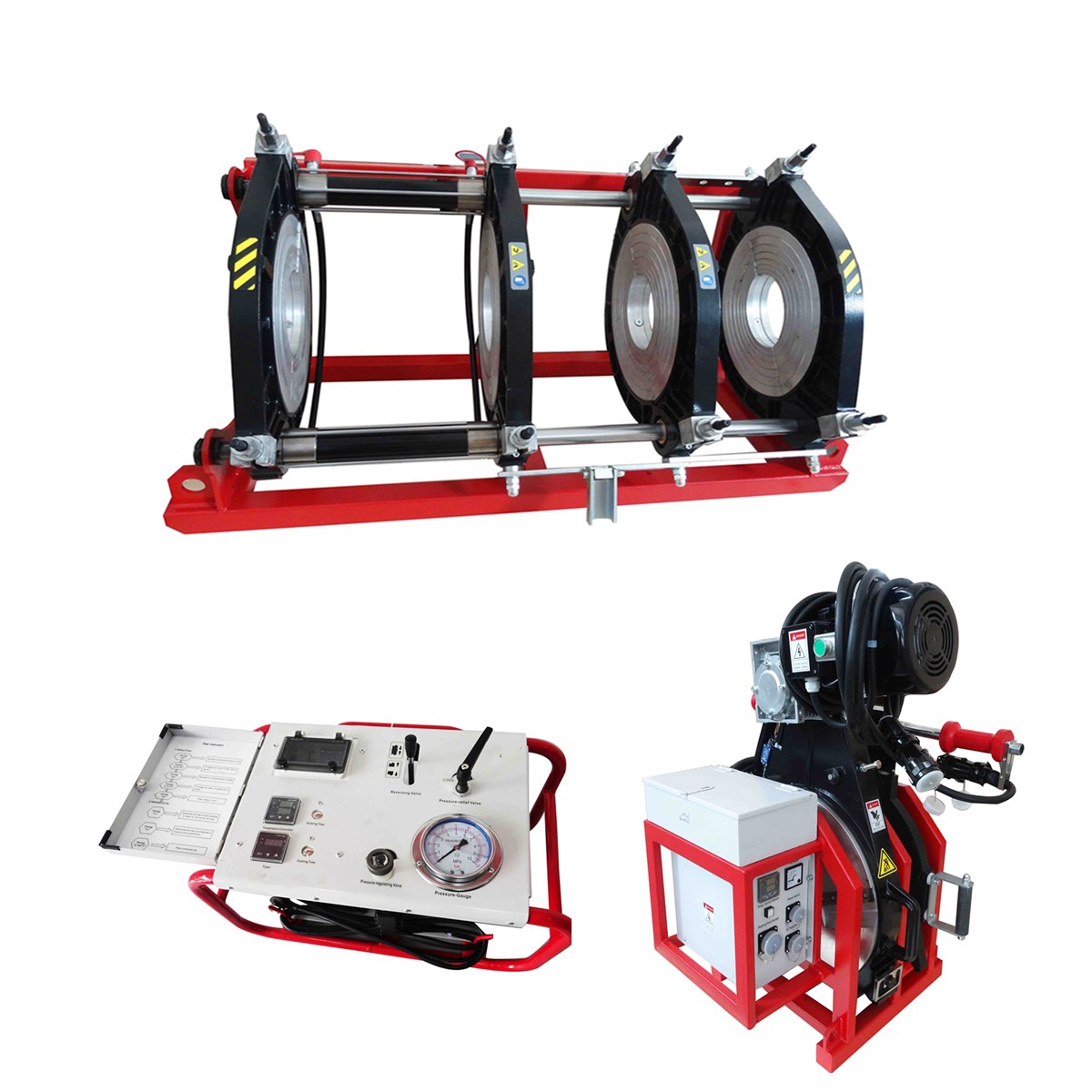

SMD-B1000/630HC HDPE Butt Fusion Machine is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition.

Description

When our SMD-B1000/630HC HDPE Butt Fusion Machine welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. this report can be transferred to a PC/Laptop through a USB port.

SMD-B1000/630HC HDPE Butt Fusion Machine Technical Parameters

Model		SMD-B1000/630H
Pipe size (mm)		,630,710,800,900,1000
Heating plate Max. Temperature		270C
Temp.Deviation in surface (170-250 C)		≤±7C
Pressures Adjustable Ranges		0-16Mpa
Working Voltage		380V, 50/60HZ, three phase
Heating plate power		17.5KW
Planing tool power		3KW
Hydraulic unit power		3KW
Crane power		0.5KW
Total Power		24KW
Weight		2600KG
Packing	Cases	5 plywood cases
	Volume	15.0CBM

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: how long is your delivery time?

A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about  5 to 40 days

Q: Can you design and produce special machines according to customer requirement?

A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.

A: how about your quality Guarantee and Service?

Q :All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

International warranty: 24months.

Any parts broken or does not work under normal operating,we are free to provide.
