Application

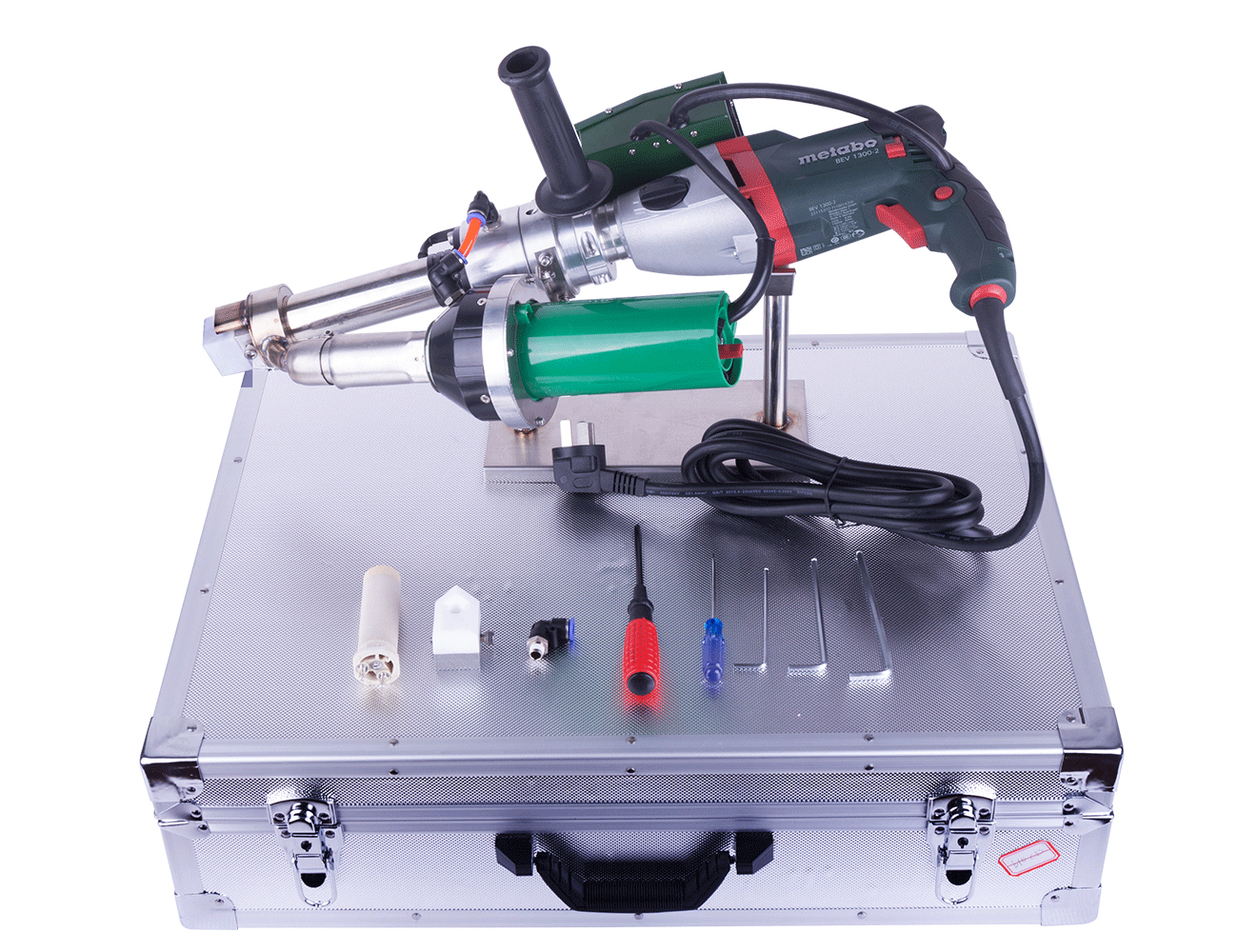

SMD-NS610C PVC Hand Extruder is the first one in china that had functions of double independent heating systems, display controller, 360-degree rotating welding head, motor cold start protection,which is applicable to welding PE,PP, PVC,PVDF and other hot melt materials.



Description

this tool is of lightweight,stable performance,convenient operation,large-amount extrusion and high efficiency,the advantage is for welding narrow gap and corners where is not easy to reach.

1.this welder start to weld when the temperature up to 270°c

2.this welder is welded with PE or PP welding rod 3.0-4.0mm,if you want 5.0mm welded,please specify before order.

3.It comes with two welding shoes,flat one and corner one.

4. Any customized demands, you can ask us directly. We have professional technicians

Team.



SMD-NS610C PVC Hand Extruder Technical Parameters

Model	SMD-NS610C
Application	PE,PP, PVC,PVDF
Voltage	220 V
Frequency	50/60HZ
Extruding Motor Power	1600W
Hot Air Power	1600W
Welding Rod Heating Power	800W
Air Temp.	20-600°c Adjustable
Extruding Temp.	200-380°c Adjustable
Welding Rod Dia.	3.0mm to 4.0mm
Weight	7.0KG

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: how long is your delivery time?

A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about  5 to 40 days

Q: Can you design and produce special machines according to customer requirement?

A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.

A: how about your quality Guarantee and Service?

Q:All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

International warranty: 24months.

Any parts broken or does not work under normal operating,we are free to provide.
