Product Main

Quick Details

Brand Name: Secukey
Material: Zinc-alloy Plate
Color: Silver
Warranty: 3 Years
Type: Locks
Model Number: 8543709990
Place of Origin: China (Mainland)

Specifications




Main Advantages:

  Safety, easy, convient



Technical details:

Online Technology Support

Product Parameter
Parameter Description
Fail Safe
Locked when energized
Face Plate
12.5L x 3.8W x 4.2H (cm)
Strike
9.0L x 2.5W x 0.2H(cm)
Bolt
1.6cm DIA, stainless steel 1.6cm throw
Voltage
12V DC
Start Current
900mA
Standby Current
120mA
Solid Bolt
Polishing housing, 800Kg holding force
Suitable for
Wooden door, glass door, metal door
Signal Output Door status output, NC/COM/NO
Induction Distance
8mm
Operating temp oC ~ 60 oC (32 oF ~ 140 oF)
Operating Humidity
0% ~ 90%(non-condensing)
Special Designed
Tested to 500000 cycles
Face place material
High aluminum, carrulous line finished
Weight
0.26kg





Our Factory: We provide  EXW price for every clients





Certificates: CE





Our Service: 3 Warranty years

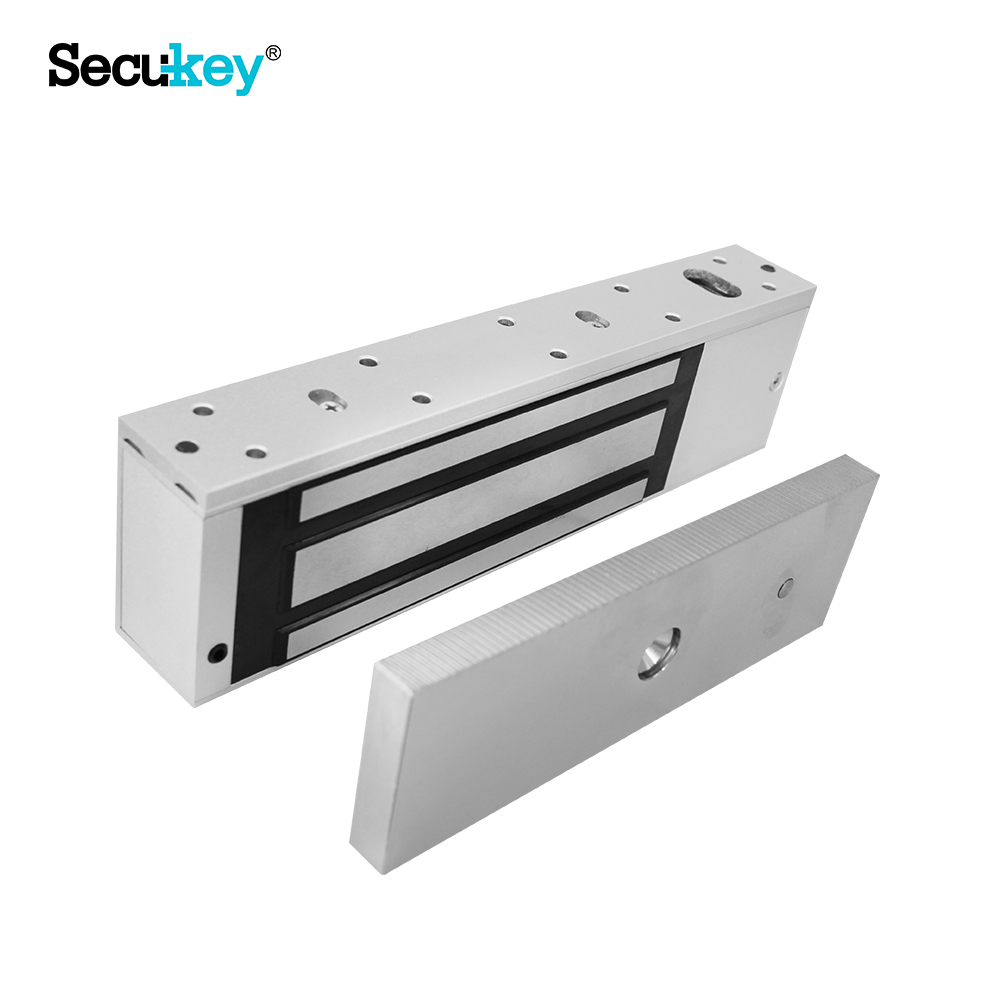

  280KG Magnetic electric locks use for Access Control system
