| Pixels: | 8mm |
|---|---|
| Display Function: | Video |
| Tube Chip Color: | Full Color |
| Usage: | Indoor |
| Brand Name: | Meiyad |
| Screen Dimension: | Customized |
| Model Number: | Flexible P8 |
| Place of Origin: | China (Mainland) |
| Pixel Density: | 15625 pixels/m2 |
| Pixels Per Panel: | 32X16 Dots |
| Module Size: | 256mm X 128mm |
| Scan Mode: | 1/4S |
| LED Type: | SMD3528 |
Quick Details
Specifications
Product Description

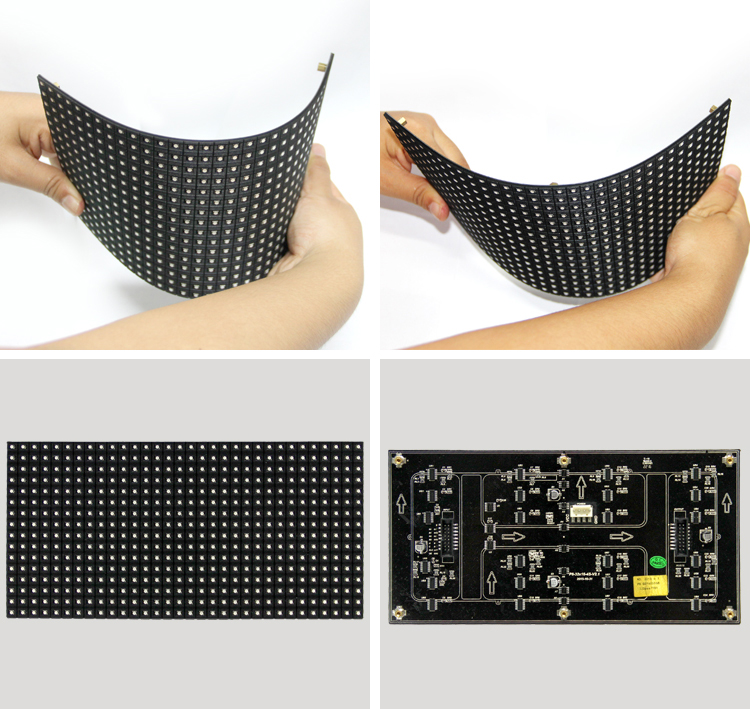

Features of Meiyad P8 SMD Indoor Soft
- the third revolution, add silicone frame + mask. Embedded magnet, reduce stitching gap. Soft, thin, strong magnets column, patent soft mask.
- High Flexibility, can be any designed forrolled, bend and swing according to customers' needs.
- Super Thin and Light, every flexible LED module is weight of 800g.
- Easy to Splice, Install and Maintain.
- No cabinet, drastically deducting the screen weight. We can design any shape of structure as you need.
- Wide application, can be used in so many fields and occasions, especially in all kinds of irregular buildings.
Technical Parameters
Technical Parameters of P8 Indoor LED Flexible Panel
| Pixel Pitch | 8mm | Pixel Density | 15625 pixels/m2 |
| Pixels Per Panel | 3216 Dots | Module Size | W 256mmH 128mm |
| Weight | 0.1 kg/piece | Drive mode | 16-bit constant current drive |
| Scan Mode | 1/4 | LED Type | SMD3528 |
| LED Configuration | 1Red,1Green,1Blue | Brightness | 2000cd/m2 |
| Area | 0.0512 m2 | Recommended Viewing Distance | ≥8m |
| Environment | Indoor | Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+80℃ | Gap between Modules | Seamless |
| Horizontal Viewing Angle | +/-120° | Vertical Viewing Angle | +/-120° |
| Video Frame Rate | 50/60 Hz | Rate Refresh | ≥1920 Hz |
| Color Temperature | 9000±500K | Input Power <Max> | 25W/ panel |
| LED Life Time | ≥100,000 Hours | Acoustic Noise | Fanless operation |
Cases
Some Cases of Meiyad LED Display Flexible Panel
Packaging & Shipping
Packaging of Meiyad LED Display Flexible Panel
about Meiyad
Shenzhen Meiyad Optoelectronics Co, Ltd. Was founded in 2008. Meiyad is a national high-tech enterprise which focuses on R&D, manufacturing, retail and serving of . We have our own operation center and manufacturing base in Shenzhen.
Our products are widely used in indoor and outdoor commercial meida, sports venues, stage performances, special-shape creativity, etc. We also provide LED display integrated solutions. with the development of technology and manufacture workmanship, we have made many classical cases in the international market.
