| Use: | Oil drilling |
|---|---|
| Material: | Alloy steel |
| Certification: | API |
| Type: | Drill Pipe |
| Brand Name: | OilMan |
| Processing Type: | Forging |
| Machine Type: | Drilling Equipment |
| Model Number: | 2 3/8", 2 7/8", 3 1/2", 4 1/2", 5", 5 1/2", 6 5/8" |
| Place of Origin: | China (Mainland) |
| Product Name: | Oil and Gas API 5DP Steel Drill Pipe Grade E75, G105, S135 Drill Rod, Oil Drilling Pipe |
| Keywords: | Drill Pipe |
| Outer Diameter: | 2 3/8" - 6 5/8" |
| Tool Joint: | NC, IF, REG, FH |
| Hardbanding: | Arnco 100XT, Arnco 300XT, BoTn 1000, BoTn 3000 |
| Steel grade: | E75, X95, G105, S135 |
Quick Details
Specifications
Oil and Gas API 5DP Steel Drill Pipe Grade E75, G105, S135 Drill Rod, Oil Drilling Pipe
Oil and Gas API 5DP Steel Drill Pipe Grade E75, G105, S135 Drill Rod, Oil Drilling Pipe
Drill pipes are widely used in mining, geological exploring and all kinds of drilling (water, oil, gas, etc) projects. Our drill pipes including steel drill pipe, mining drill pipe, water well drill pipe, oil well drill pipe, API drill pipe, DTH drill rod, wireline drill rod, etc.
Specifications for API 5DP drill pipe:
1) Internal Plastic Coating: TC2000, DPC2000, TK34, TK34P
2) Steel Grade: E75, X95, G105, S135
3) Length: R1 18-22 feet; R2 30.5-31.5 feet; R3 38-45 feet
4) All drill pipe are made according to API 5DP
5) We can provide in many conditions, with or without hard banding (Arnco 100XT, Arnco 300XT, BoTn 1000, BoTn 3000)
Size Inch |
Nominal Weight |
Weight c/w blank end |
OD |
Wall Thickness |
Grade |
Upset Type | |||
| lb/ft | Kg/m | inch | mm | inch | mm | ||||
| 2-3/8 | 6.65 | 6.27 | 9.33 | 2.375 | 60.3 | 0.280 | 7.11 | E,X,G,S | EUE |
| 2-7/8 | 10.4 | 9.72 | 14.47 | 2.875 | 73.0 | 0.362 | 9.19 | E,X,G,S | EUE |
| 3-1/2 | 13.3 | 12.32 | 18.34 | 3.500 | 88.9 | 0.368 | 9.35 | E,X,G,S | EUE |
| 3-1/2 | 15.5 | 14.64 | 21.79 | 3.500 | 88.9 | 0.449 | 11.4 | E,X,G,S | EUE |
| 4 | 14.0 | 12.95 | 19.27 | 4.000 | 101.6 | 0.330 | 8.38 | E,X,G,S | IUE |
| 4-1/2 | 16.6 | 15.00 | 22.32 | 4.500 | 114.3 | 0.337 | 8.56 | E,X,G,S | IEUE |
| 4-1/2 | 20.0 | 18.71 | 27.84 | 4.500 | 114.3 | 0.430 | 10.92 | E,X,G,S | IEUE |
| 5 | 19.5 | 17.95 | 26.70 | 5.000 | 127.0 | 0.362 | 9.19 | E,X,G,S | IEUE |
| 5 | 25.6 | 24.05 | 35.80 | 5.000 | 127.0 | 0.500 | 12.7 | E,X,G,S | IEUE |
| 5-1/2 | 21.9 | 19.83 | 29.52 | 5.500 | 139.7 | 0.361 | 9.17 | E,X,G,S | IEUE |
| 5-1/2 | 24.7 | 22.56 | 33.57 | 5.500 | 139.7 | 0.415 | 10.54 | E,X,G,S | IEUE |
| 6 5/8 | 25.2 | 22.2 | 33.04 | 6.625 | 168.275 | 0.330 | 8.38 | E,X,G,S | IEUE |
| 6 5/8 | 27.7 | 24.23 | 36.05 | 6.625 | 168.275 | 0.362 | 9.19 | E,X,G,S | IEUE |

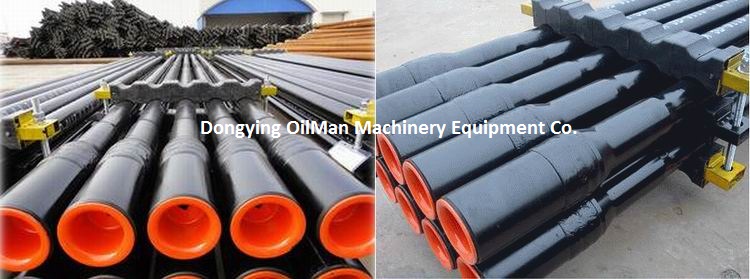

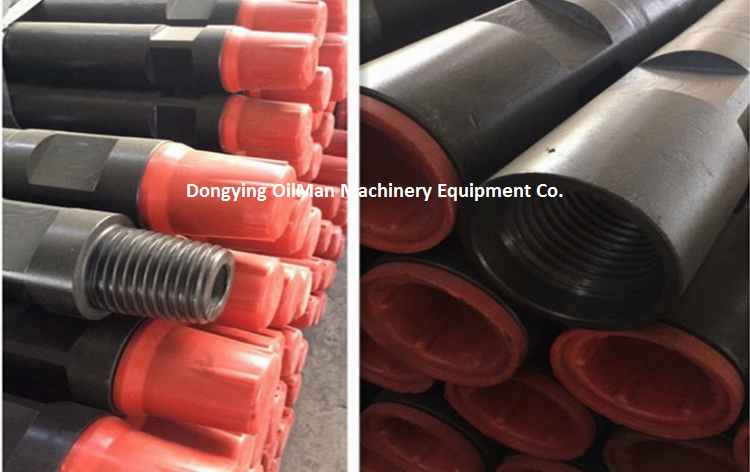

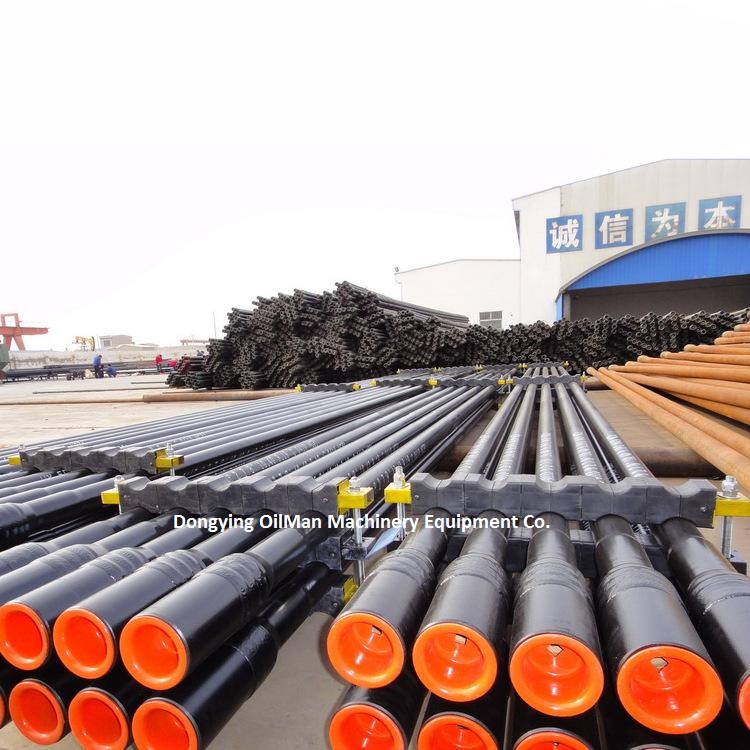

Products Show:
Related Products:
Company Information:
about us
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, Including drilling Rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with First-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
