| Usage: | Twisting |
|---|---|
| Brand Name: | LISTRONG |
| FC: | 12 |
| Stripping Length: | 100 |
| Name: | Bunching machine |
| Model Number: | 650P |
| Place of Origin: | China (Mainland) |
| Single wire inlet diameter: | 0.18-0.62mm |
| Outlet cross section: | 0.18-6.0mm2 |
| Take-up bobbin: | 500/630mm bobbin |
| Pay-off wire diameter: | 0.1-0.6mm |
Quick Details
Specifications

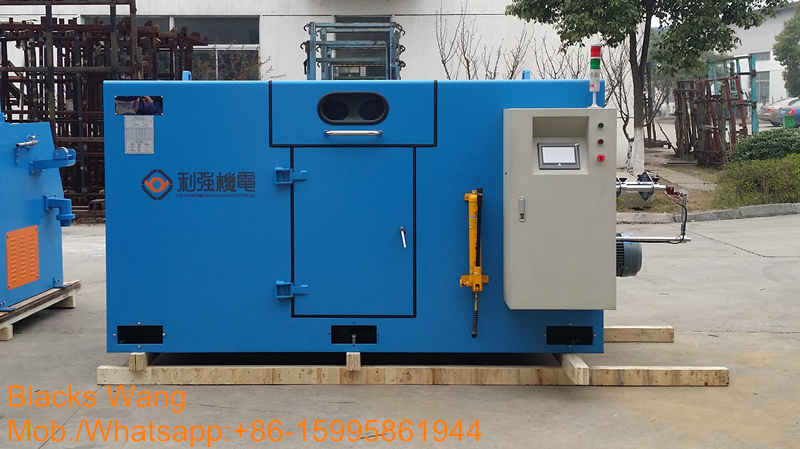

650P High Speed Double Twist Bunching Machine
Model |
650P |
Max Rotating Speed(rpm) |
2000RPM |
Wire Diameter (mm) |
φ0.18~0.62 |
Twisting section(mm2) |
0.18~6.0 |
Twisting pitch (mm) |
34Setion(11.6mm-66.1mm) |
Direction of twist |
Right or left(Change by hands) |
Take-up bobbin (mm) |
Φ630475 |
Centre hole of take-up bobbin (mm) |
to be designed according to user's requirement |
Polish Rod traverse unit (mm) |
Φ30 |
Main shaft lubricate method |
to be lubricated with diluted oil, natural circulated cooling |
Brake |
Internal and external brake is automatically when break. Stop automatically after meter in place |
Safety Precaution |
Machine can't start or brake and stop automatically when door and loading don't reach the specified position |
Indication |
the operation condition and faults are indicated by the indicators |
Control |
Taida touch screen + PLC + frequency converter control. Magnetic powder clutch control the tension of bobbin |
Appearance dimension(mm) |
320014801440 |
Box dimension(mm) |
260012001440 |
the center height of main shaft(mm) |
850 |
Color |
According to customers' requirements(Standard marine blue) |
