| Usage: | Drawing |
|---|---|
| Brand Name: | LISTRONG |
| FC: | 12 |
| Stripping Length: | 100 |
| Name: | wire drawing machine |
| Model Number: | 17DST |
| Place of Origin: | China (Mainland) |
| Inlet wire diameter: | 2.5-3.5mm |
| Outlet wire diameter: | 0.4-1.6mm |
| Max. quantity of drawing dies: | 17pcs |
| Main motor power: | 45KW |
| Take-up power: | 15KW |
| Max. Voltage: | 60V |
| Max. Current: | 2000A |
| Take-up bobbin: | 500/630mm bobbin |
| Max. speed: | 1800MPM |
Quick Details
Specifications

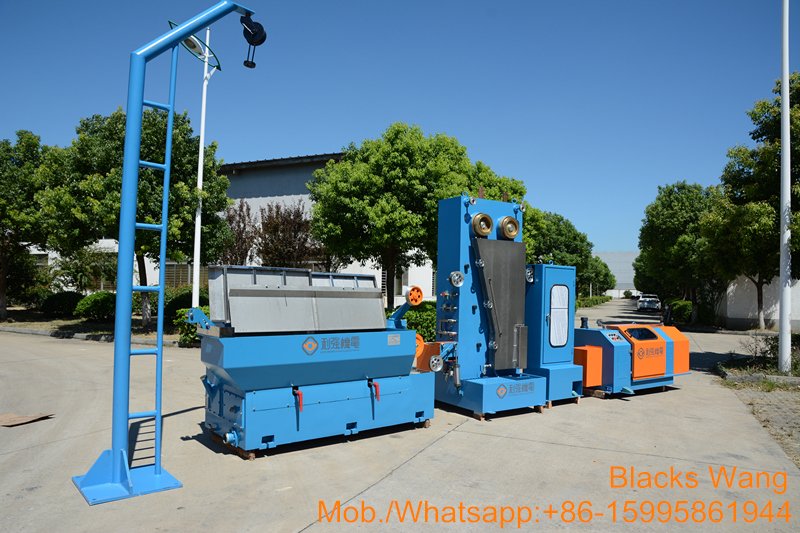

17DST High Speed Medium Copper Wire Drawing Machine with Annealer
Machine type |
17DST |
Inlet diameter(MM) |
Φ2.5-φ3.5 |
Outlet diameter (MM) |
Φ0.4-φ1.6 |
Max. Speed(MPM) |
1800 |
Main machine power |
55KW |
Annealing power |
90KVA |
Spooler power |
15KW |
Annealing method |
DC. Three-section annealing |
Suitable spool |
Φ630(MAX) |
Correction system |
Automatically control |
Capacity of take-up |
100-400KG |
Service voltage |
380V |
Brake |
ElectromagNetic type |
Machine dimension |
3600L1030W1000H |
Machine weight |
7300kg |
