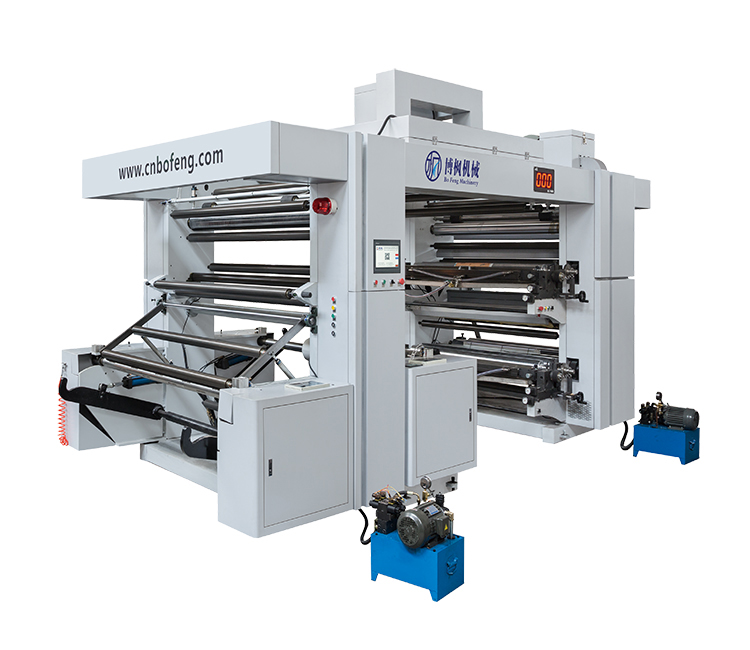

4 Color High Speed Roll to Roll HDPE/PE/ Plastic Bag Flexo/Flexographic Printing Machine
Feature:
- Adopts the synchronous belt drive instead of Gear drive;
- Machine running more quite, higher printing precision, good quality;
- Machine more stable;
- High Mechanical speed: 130m/min ( by enclosed chamber dr blade)
- High printing speed: 30-120m/min
- Single unwind & Single rewind
Main Technical Parameter
| Model |
BFYT-Cseries 2/4/6/8 color |
| 600 |
800 |
1000 |
1200 |
| Max. Material width |
650mm |
850mm |
1050mm |
1250mm |
| Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
| Printing color |
2+0,1+1
4+0,2+2,1+3
6+0,3+3,4+2,1+5
8+0,4+4,2+6,5+3,1+7 |
Suitable Printing Material |
Paper: 20~100g,plastic film 10-30micron, non woven fabric, BOPP.... |
| Printing length |
300-1000mm |
| Printing plate lifting system |
Automatic Hydraulic |
| Mechanical speed |
130m/min |
| Printing speed |
10-120m/min |
| Anilox cylinder |
Ceramic anilox roller(100-1000LPI), Chamber doctor blade |
| Rewinder/Unwinder DIA |
1000mm/ 1200mm |
| Master power |
25KW |
35KW |
45KW |
55KW |
Optional part:
1. Video inspection USD4000/set
2. Corona treatment USD800/set
3.Crane USD2000/set
