Product Main

Quick Details

Brand Name: oem
Certification: rohs, ce,fc
Function: QoS,
Application: Soho
Type: Wireless
Place of Origin: China (Mainland)
Model Number: DHR-N2231M
Products Status: Stock
color: white

Specifications

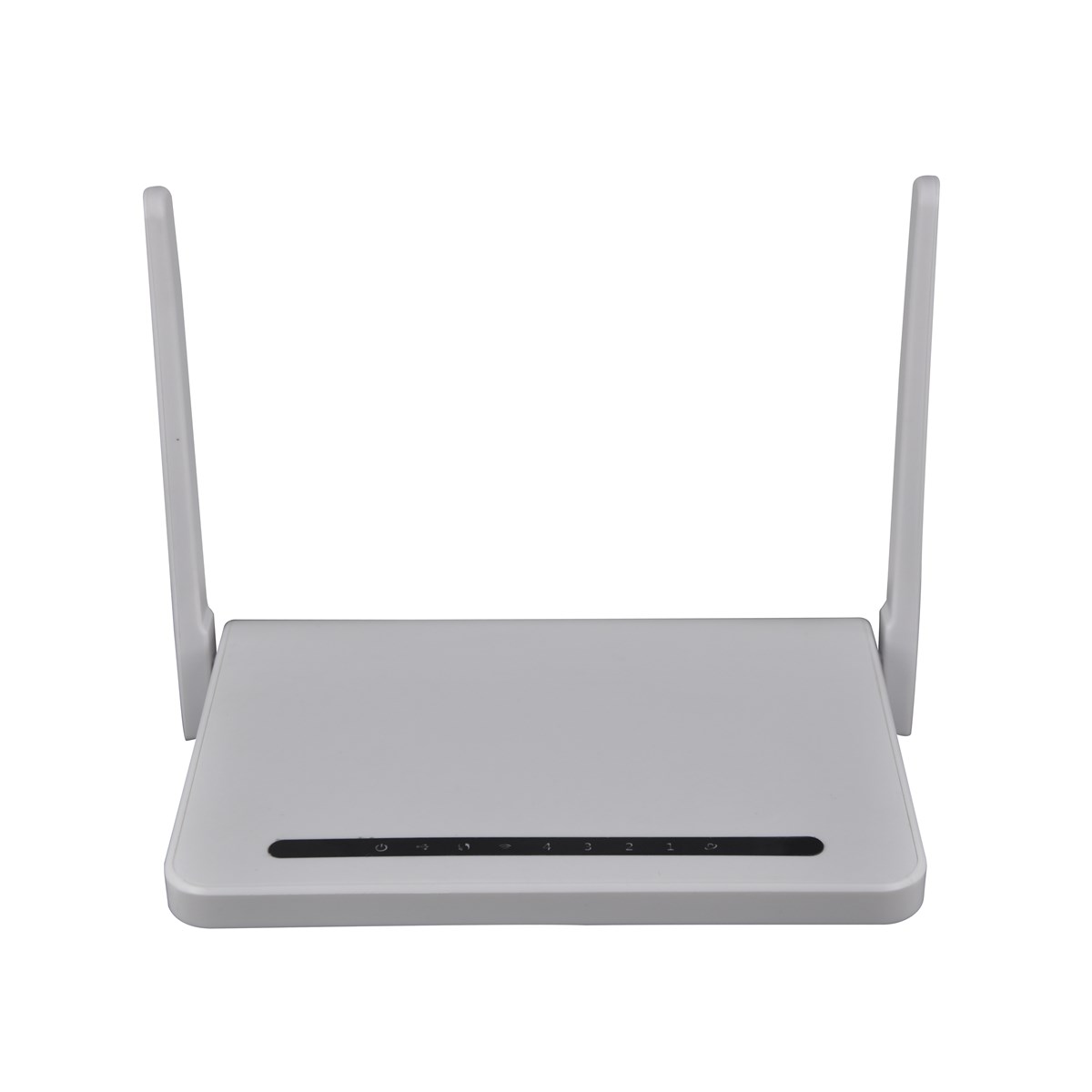

DHR-N2231M
the DHR-N2231M is a high performance router with 2T2R 802.11b/g/n technology, it integrates with a built-in infrastructure mode
Wireless access point and one WAN plus four LAN switch. Therefore, it's ideal for home and office networking to a share high speed
Internet connection with the flexibility, speed and security you need.
Its enhanced 23dbm power enables you to very easily extend the range of your wireless coverage, also its big flash & memory with
OPENWRT OS can make end user enjoy more public source from market.
It also includes a USB 2.0 host port, which supports 3G/4G LTE data card and USB storage function. this router can work as a
Simple load-balance device,let your network to share a high speed cable/DSL/Mobile internet connection with the ultimate freedom
of wireless networking anywhere.
4 ports openwrtlede 24G 80211bgn N300mbps high power wireless vpn 19216811 cheap wifi router long range

PARAMETER
SPECIFICATION
SUPPORT
Wireless Standard
802.11n(Draft 2.0),802.11b/g
Support
Wireless Signal Rates
up to 300Mbps
Support










Network Support
PPPoE, DHCP Static IP connectivity
Default WAN connectivity on DHCP
MAC cloning support
Support
Network Address Translation (NAT)
Support
Multi Range Port Forwarding
Not support
DHCP Server/client
Support
PPPoE Relay
Not Support
Rip v1 v2
Not Support
QoS Traffic Control(MAC and IP)
Support
IGMP Snoop
Support
IPV4/IPV6
Support IPV4, IPV6 can be an option.
IGMP Proxy v1 v2
Support
DNS Relay
Support
UPnP, DDNS, static routing, VPN pass-through(PPTP and L2TP)
Support
Virtual server, special application and DMZ host ideal for creating a website within your LAN
Support
Operation mode
Gateway, Bridge, WISP
Default on Gateway mode, NAT Enable
WEB Language
Language Support
Optional
Default Language
English
Router Login
Login URL
192.168.1.1
Login Name
Admin
Router Login
Login Password
Admin
Local Network
Router LAN IP
192.168.1.1
IP Subnet MSK
255.255.255.0
DHCP server
Enable











 Wireless
Operating Mode
Default on b/g/n mixed mode
Wireless Communication
Enabled
Multiple SSID
Support to 4
SSID Name
SSID
Security
Disabled
SSID broadcast control and MAC access control list
Enabled
Transmission Speed
Auto
RF Channel
11 in US, 13 in most other regions
Default
Auto
WDS wireless bridge
Not Support
WMM(Wi-Fi Multi Media)
Support
Automatic Quality of Service (QoS) for reliable Internet, voice and gaming applications
Support
Wi-Fi Protected Setup
Disabled
Block Ack
Not Support
IAPP
Not Support
IGMP Snoop
Not Support
Power Range
Support



Wireless Security
64/128/WEP
Support
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support
Stealth AP (Hidden ESSID, Deny any Access)
Support
IEEE 802.1X
Not Support
Provides wireless LAN ACL (Access Control List) filtering
Support





Security Support
NAT for basic Firewall support
Support
Packet Filtering Firewall support
Support
MAC/IP Filter
Support
Web Content Filter
Support
URL Filter
Support
Parent Control
Not Support
Protection against Denial of Service attacks
Support
Password Authentication to Router
Support
Stateful Packet Inspection(SPI) firewall
Not Support



System
Firmware upgrade via GUI
Support
Remote and Web management
Support
System log
Support
TR069
Not Support(will be an option in future)
SNMP V2/V3
Not Support
