| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | One Year |
| Certification: | API 7-1 |
| Brand Name: | OilMan |
| Condition: | New |
| Weight: | 20-150 Kg |
| Model Number: | Near bit stabilizers and string stabilizers |
| Place of Origin: | China (Mainland) |
| Application: | Oil well drilling |
| Product Name: | Oil Well Downhole Tools Drilling String Stabilizer/Integral Spiral Blade Stabilizer |
| Outer Diameter: | 6" - 36" |
| Hardfacing: | HF1000-HF5000 |
Quick Details
Specifications
Oil Well Downhole Tools Drilling String Stabilizer/Integral Spiral Blade Stabilizer
Description of drilling stabilizer
Stabilizer is one useful tool for drilling operation. We offer a wide variety of near bit stabilizers and
String stabilizers according to API SPEC 7-1. All drilling stabilizers are integral style, also can be highly
Customized as per customer's requirements.
Integral near bit & string stabilizer are manufactured from one solid bar of AISI 4145H modified steel, usually have 3 blade or 4 blade. Professional heat-treatment process grantees the mechanical strengths meet the requirements of API SPEC7-1. Hardness of 285-341HB can be assured both 1" beneath the outer surface and 4 quadrant across the neck OD.
1. Material: AISI 4145H or AISI 4145H steel, non magnetic tungsten carbide
2. Standard: API, ISO
3. Specification:6"-36"
4. Machine Type: drilling tool
5. Processing type: forging
6. Hard-facing Types: HF1000-HF5000

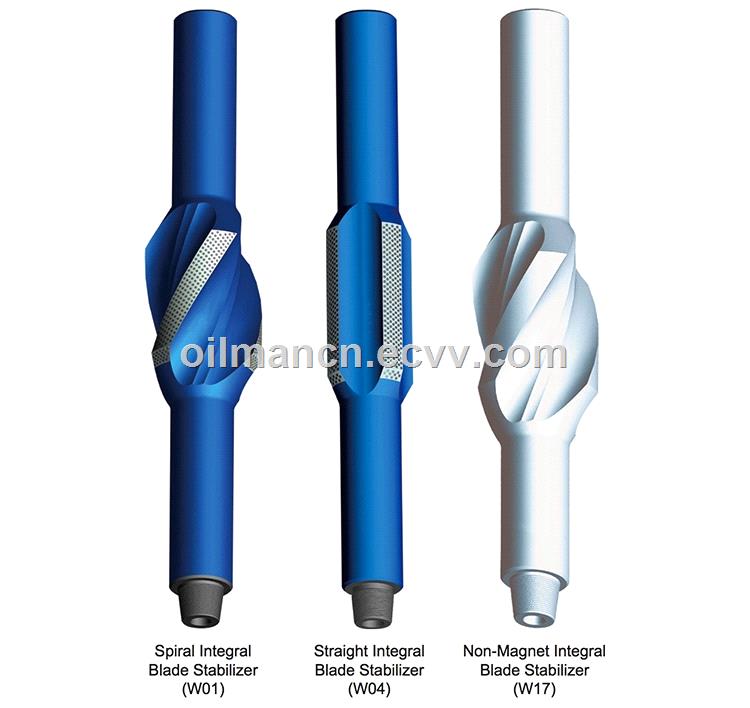

Optional Stabilizers
We offer several options for IBS, in both alloy steel and non-magnet materials:
Spiral Integral Blade Stabilizer;
Straight Integral Blade Stabilizer;
Non-Magnet Integral Blade Stabilizer;
Specifications of drilling stabilizer
| Bit size(in) | O.D.(mm) | O.D. of body(mm) | I.D.(mm) | Length (mm) | String type connections | near bit type connections | ||
| Top | Down | Top | Down | |||||
| 6 | 152.2 | 121 | 51 | 1200 | NC38 | NC38 | NC38 | 3 1/2 REG |
| 6 1/4 | 158.7 | 121 | 51 | 1200 | NC38 | NC38 | NC38 | 3 1/2 REG |
| 6 1/2 | 165.1 | 121 | 51 | 1200 | NC38 | NC38 | NC38 | 3 1/2 REG |
| 7 1/2 | 190.5 | 159 | 57 | 1600 | NC46 | NC46 | NC46 | 4 1/2 REG |
| 7 7/8 | 200 | 159 | 57 | 1600 | NC46 | NC46 | NC46 | 4 1/2 REG |
| 8 1/2 | 215.2 | 165 | 71 | 1800 | NC50 | NC50 | NC46 | 4 1/2 REG |
| 9 1/2 | 241.3 | 197 | 71 | 1800 | NC50 | NC50 | NC50 | 6 5/8 REG |
| 12 1/4 | 311.2 | 203 | 76 | 1800 | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG |
| 16 | 406 | 229 | 76 | 2200 | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG |
| 17 1/2 | 444.5 | 241.3 | 76 | 2200 | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG |
| 24 | 609.6 | 241.3 | 76 | 2540 | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG |
| 26 | 660.4 | 241.3 | 76 | 2540 | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG |
| 28 | 711.2 | 254 | 76 | 2540 | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG | 7 5/8 REG |

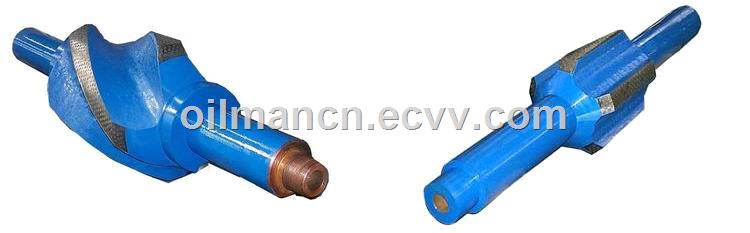

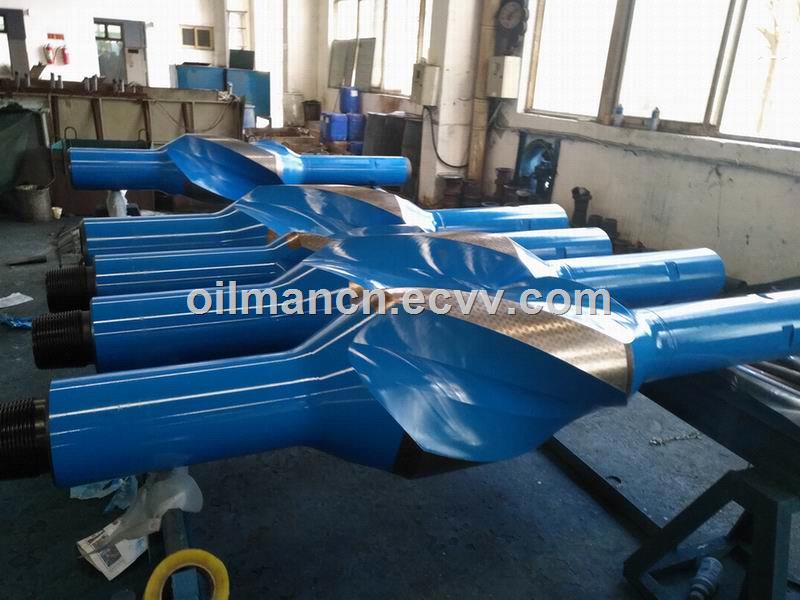

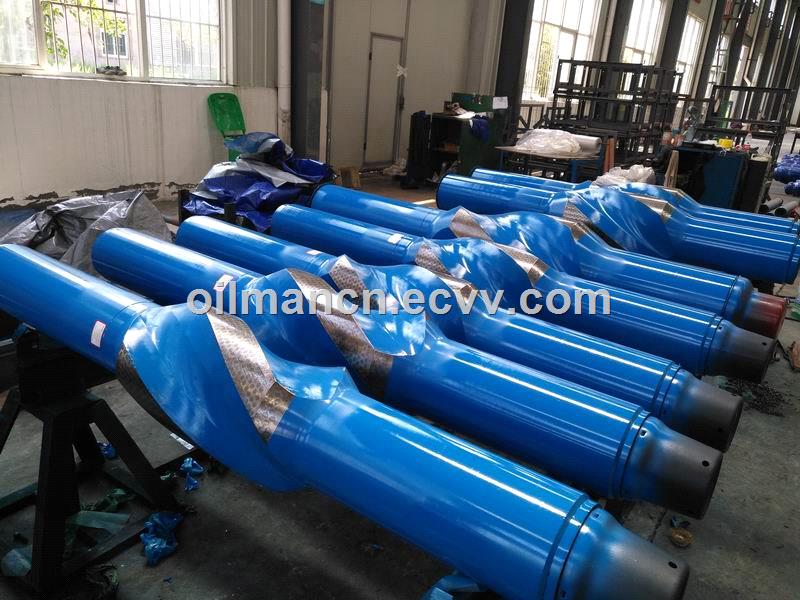

Products Show:
Company Information:
about us
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, Including drilling Rig and accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with First-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
