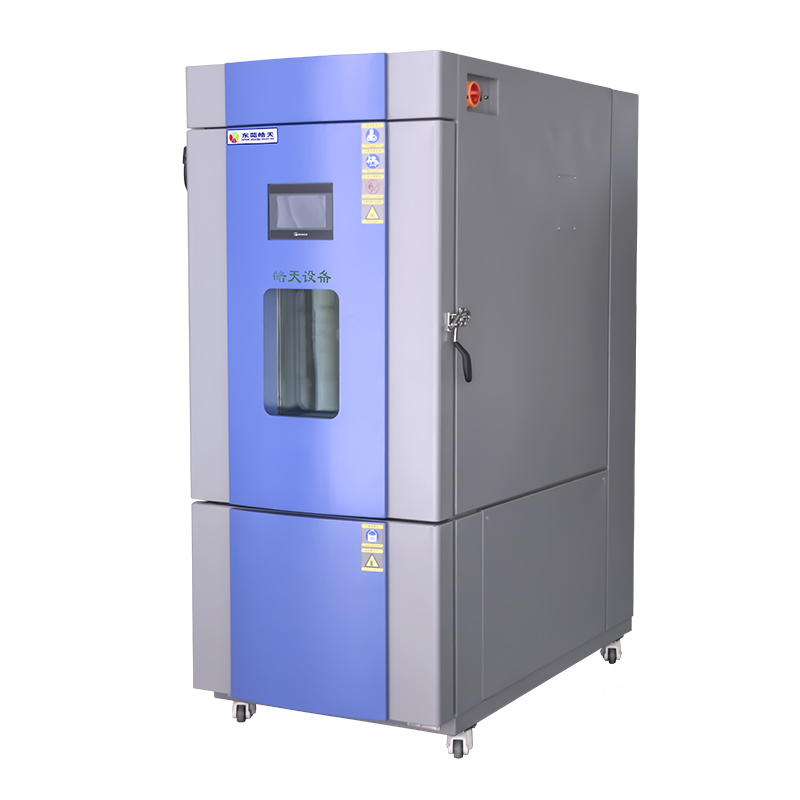

Constant temperature and humidity test chamber

Main Advantages:

• 1. the latest optimization design takes up less space and uses large window to visualize the state of test products.
• 2. Imported brand parts, reliable quality, free maintenance for two years.
• 3. Use drawer type large capacity water tank, test time is long, and easy to disassemble and clean.
• 4. Using 7 TFT true color touch screen, it is bigger, more intuitive and easier to operate than other screens.
• 5. It has USB interface and R-232C communication interface. It can download the data curve and upload it to the computer to make it look more intuitive.
• 6. Machine operation and remote test box can be monitored remotely through Internet. (optional)
• 7. the installation and separation of the water circuit of the test box from the distribution panel can ensure the stability, reliability and safety of the equipment.
• 8. the evaporator adopts the method of water leak detection, which is more intuitive and thorough. It can ensure good air tightness of the equipment and stable operation of the test box.
• 9. the modular refrigeration unit can ensure the manufacturing quality and easy to maintain and replace.



Technical details:

Model		THC-225PF	THC-408PF	THC-800PF	THC-010PF
Temperature series		A:0℃~+150℃, B:-20℃~+150℃, C: -40℃~+150℃, D: -70℃~+150℃
Size	Internal chamber size(cm)	50x60x75(W*D*H)	60x80x85(W*H*D)	100x80x100(W*D*H)	100x100x100(W*D*H)
	External chamber size(cm)	100x119x179(W*D*)	110x139x189(W*D*H)	150x139x191(W*D*H)	150x159x191(W*D*H)
Performance	Temperature range	-40℃~+150℃
	Humidity range	10%~98%RH
	Indication resolution	0.01℃, 0.1%RH
	Deviation	±1.0℃, ±2.5%RH
	Heat up time	about 30min from+20℃ to +150℃
	Cooling time	+20℃ ~ -20℃≦30min	+20℃ ~ -40℃≦55min	+20℃ ~ -70℃≦75min
Materials	Structural material	External: Anti-rust treatment cold rolled steel plate spraying; Internal: SUS#304/316 steel stainless.
	Insulating material	Rigid polyurethane foam with flame retardant.
Refrigerate system	Refrigerating material	France Tecumseh compressor +Finned type all copper evaporator + air cooled condenser.
	Cooling agent	R404A, R23(the United States Dupont HFC series environmental refrigerant.)
	Compressor refrigerating capacity	3.0P	3.0P	3.0P	4.0P
	Controller	Import TEMI series 7"  touch screen temperature humidity instrument.
	Electronic apparatus element	the France Schneider industrial control products. CARLO GAVAZZI, FOTEK Taiwan, etc.
Electronic control	Heating/Humidifying	Nickel complex heater/SUS#304 jacket type humidifier.
	Circulation fan	Macro-axis motor + Steel stainless wind rotor
	Fault alarm devices	Compressor over current, over pressure, overheating, lack water protection, heater no wind empty burn protection, humidifier lack water dry burn protection, leakage protection, over-temperature protection, phase failure protection, indoor over-temperature protection.
Water		Pure/deionized water
Power		AC 3 Φ380V 50/60Hz
Max. Current	AC220V	12A	12A	18.5A	18.5A
Others		Specimen holder *2pcs, Leas hole silicone plug *1pcs, Toughened defogging glass *1pcs.
Customization		Customized according to customers' requirements are available.



 Constant temperature and humidity test chamber

Our Factory:

Dongguan Haotian Testing Equipment Co., Ltd was officially registered in July. 2013, which is a specialized in design, production and sales of integrated reliability environment test equipment technology enterprise. We have a group of experienced technical management personnel and efficient professional after-sales service personnel, have the mechanical design and software independent development ability. Our company has strong technical force and exquisite manufacturing technology, meet UL, ASTM, JIS, GB, GB/T, ISO and other standards.



with the company's exquisite technology and perfect after-sales service, the company is the first in the industry to establish the ISO9001:2000 quality management system, ISO14001:2004 environmental management system and OHSAS18000 occupational and health and safety system, to fully implement the 'quality of survival, service enjoys reputation, to increase efficiency management, innovation and brilliant' business policy. Fully implement the sunshine service concept of 'careful service, pursuit of customer satisfaction, beyond customer expectations', with branches or offices in major central cities across the country. We will continue to develop, innovative, trustworthy, customer first for the purpose, adhering to the people-oriented, combined with international testing standards and the specific test requirements of customers as the principle, set up a new banner of China experimental equipment field.





Certificates:





Our Service:

Service concept

Service by hear, pursuit of customers' satisfaction, exceed customers expectations.





FAQ:

1. May I visit your company before placing an order?

Sure, welcome you and your team to visit our company. If you need us to book a hotel and pick up you, please inform us in your free time, we would be happy to do that.
