| After-sales Service Provided: | No overseas service provided |
|---|---|
| Warranty: | 1 Year |
| Certification: | 3C |
| Application: | Welding |
| Condition: | New |
| Power(W): | 220V/380V |
| Dimension(L*W*H): | 1.3*1.34*1.8 M |
| Weight: | 180 |
| Model Number: | GSK01 |
| Place of Origin: | China (Mainland) |
| Horizonal Travel(mm): | 1405 |
| Vertical Travel(mm): | 2384 |
| Control: | Automatic control panel |
| Payload: | 6 kg |
| Armlength: | 1389mm |
| Function: | Welding Cutting Painting and Palletizing |
Quick Details
Specifications

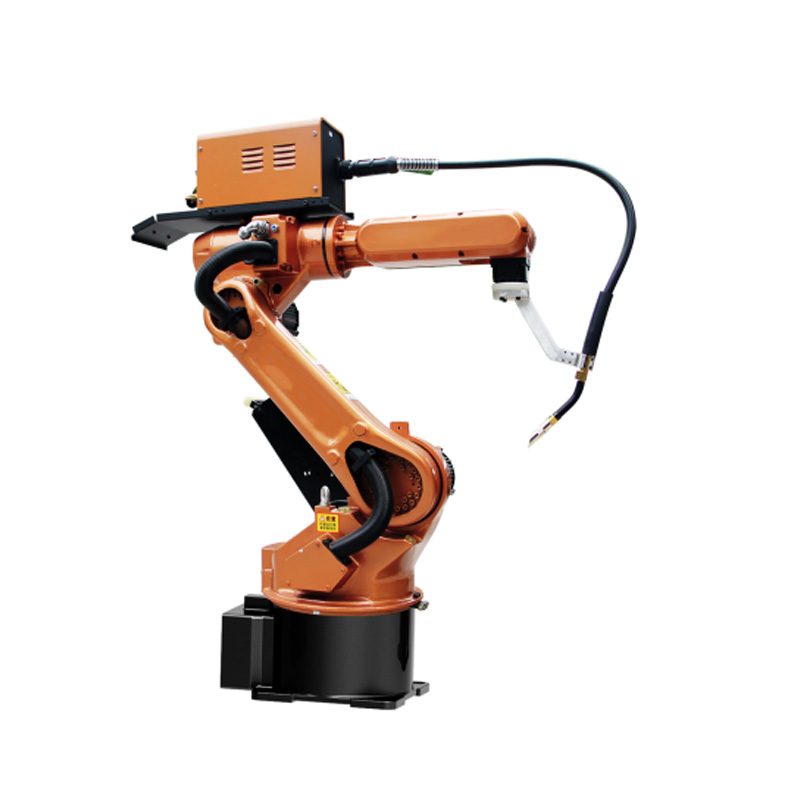

6KG Payload 6 Axis Industrial Robotic Arm for Welding Cutting Painting and Palletizing
We are specialized in customizing smart CNC automatic robotic system, with high quality and cheap price.
We are specialized in customizing smart CNC automatic robotic system, with high quality and cheap price.
Our robot with different functions: in this page we only list RH06, a small model for your reference, if you need more models with other functions, please feel free to contact us.
Our robotic system RH06 model is especially designed for Mig/Mag welding, which has high efficiency.
this series robot Small size light weight, is dedicated to arc welding robot, can realize the stable welding, obtain high precision welding path, shorten the welding cycle, extend the life of the pipe and cable At the same time RH series welding robot can flexible welding operations within the narrow space, can easily choose the ground installation mount inversion
Technical Parameters
| Model | RH06 | |
| Payload | 6 KGS | |
| Max Working Radius | 1389 mm | |
| Arm Length | 2391 mm | |
| Number of Axis | 6 | |
Max speed |
Axis1 | 154 °/S |
| Axis2 | 154 °/S | |
| Axis3 | 154 °/S | |
| Axis4 | 420 °/S | |
| Axis5 | 252 °/S | |
| Axis6 | 620°/S | |
Max Operation Area |
Axis1 | ±170° |
| Axis2 | +120° ~ -85° | |
| Axis3 | +75° ~ -155° | |
| Axis4 | ±180° | |
| Axis5 | ±135° | |
| Axis6 | ±360° | |
| Max moment Allowable Torque | Axis5 | 10 NM |
| Axis6 | 6 NM | |
| Weight | 180kg | |
| Position Repeatability | ±0.05mm | |
| Working temperature | 0-45 ℃ | |
Advantages of industrial robotics
1. Stability and improve quality, ensure its homogeneity;
2. Improve productivity, available 24 hours a day continuous production;
3. Improving labor conditions, long-term work in a hazardous environment;
4. Reduce the operation technique requirements;
5. Reduce product modification replacement cycles, reduce investment in appropriate equipment;
6. Realization of welding automation of batch products;
7. Save floor space;
Application:
Widely used in automobile and parts, motorcylce and parts, agricultural machinery, engineering machinery and other hardware welding field.
Application:
Widely used in automobile and parts, motorcylce and parts, agricultural machinery, engineering machinery and other hardware welding field.
We can customize the solution according to the information you provide, whether it is automatic cutting system, automatic welding system, automatic painting, automatic feeding, unloading, etc. We can design exclusive solutions for you. A strong technical team and bilingual communication skills can quickly solve any of your needs. German technology, made in China, high cost performance. Please feel free to contact us for more information.
