| Voltage(V): | 12V, 24V, 36V, 48V |
|---|---|
| Type: | Tubular Motor |
| Certification: | CCC,CE,ROHS,UL |
| Usage: | pool cover system |
| Brand Name: | DYD MOTOR |
| Efficiency: | |
| Output Power: | up to 1500W |
| Continuous Current(A): | within 50A |
| Speed(RPM): | 1 ~ 100rpm |
| Protect Feature: | Waterproof |
| Commutation: | Brush |
| Construction: | Permanent Magnet |
| Torque: | 60N.m ~ 1000N.m |
| Model Number: | ZY/JX |
| Place of Origin: | China (Mainland) |
| Keywords: | High Torque IP54, IP68 Automatic Pool Cover DC Gear Motor |
| Working torque: | 60N.m ~ 1000N.m |
| Shaft material: | SS316 |
| IP rating: | IP54, IP55, IP65, IP68 |
| Gearbox type: | Planetary |
| Color: | Black or customized |
| Motor diameter: | 60mm, 80mm, 96mm |
| Warranty: | Up to 3 years |
| Option: | Magnetic/optical encoder; power-on/power-off brake; connector; approach switch |
| Typical application: | Pool cover system |
Quick Details
Specifications

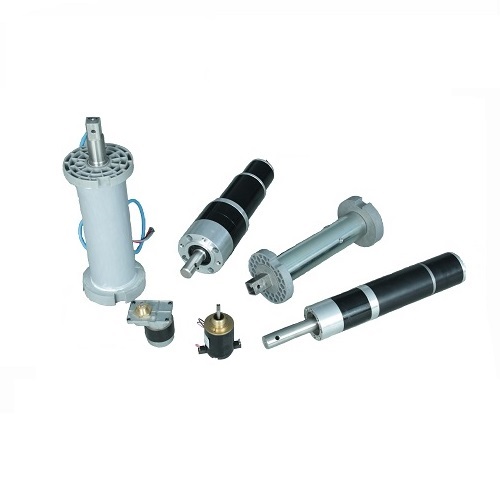

250N.M IP68 High Torque Pool Cover DC Planetary Gear Motor
Gear Motor Typical Specs.:
Voltage 24V DC
Max Load Current 18A
No-Load Speed 4.8rpm
Rated Speed 3.8rpm
Rated Torque 200N.M for Continuous Running
(Rated Torque 300N.M for Intermittent Running )
Gear Ratio 646.5/1
Stainless Steel Shaft SS316
with Inductive Sensor PNP & a 1.5N.M Brake
IP68
Voltage 24V DC
Max Load Current 18A
No-Load Speed 4.8rpm
Rated Speed 3.8rpm
Rated Torque 200N.M for Continuous Running
(Rated Torque 300N.M for Intermittent Running )
Gear Ratio 646.5/1
Stainless Steel Shaft SS316
with Inductive Sensor PNP & a 1.5N.M Brake
IP68
Optional components: magnetic encoder;Inductive sensor PNP; power-off brake
