Description:

the cement float collar& shoe offer dependable performance for all classes of oil and gas wells. the plunger type valves prevent cement backflow, provide casing buoyancy during run-in, and act as internal bops during the process of running and cementing the casing. Our float collar & shoe sizes range from 5 1/2" 30" with float ball, stab in, non-rotating, spring and single / double valve types. Products in our factory are all manufactured to API standard, with strict quality control and inspection.
Float Collar:
Float collar is a component installed near the bottom of the casing string on which cement plugs land during the primary cementing operation. It contains a check valve to permit fluid to pass downward but not upward through the casing. the float collar prevents drilling mud from entering the casing while it is being lowered, allowing the casing to float during its descent and thus decreasing the load on the derrick or mast.
Float Shoe:
Float show allow operator to maintain a constant fluid height inside the casing of a well. It also contains a check valve to prevent back flow. It functions similarly to the float collar but also serves as a guide shoe for the casing.

Specification:

Technical specifications and parameters for Float collar & Float shoe
Specification		O.D.(mm)	Total length(mm)	I.D.(mm)	Min. Dia. (mm)	Connection Type	Affordable strength of back-pressure (Mpa)
Float collar	5	141.3	500	110	50	5 BCSG	35
	5 1/2	153.67	530	112	55	5 1/2 BCSG	35
	7	194.46	586	162.5	77	7 BCSG	35
	9 5/8	270	720	225	77	9 5/8 BCSG	35
	13 3/8	365	720	319	77	13 3/8 BCSG	35
	20	533.4	720	475	77	20 BCSG	35
Float shoe	5	140.3	495	110	50	5 BCSG	35
	5 1/2	153.67	514	122	55	5 1/2 BCSG	35
	7	194.46	533	162.5	77	7 BCSG	35
	9 5/8	269.88	550	225	77	9 5/8 BCSG	35
	13 3/8	339.7	550	319	77	13 3/8 BCSG	35
	20	534	652	475	77	20 BCSG	35

Products Details:

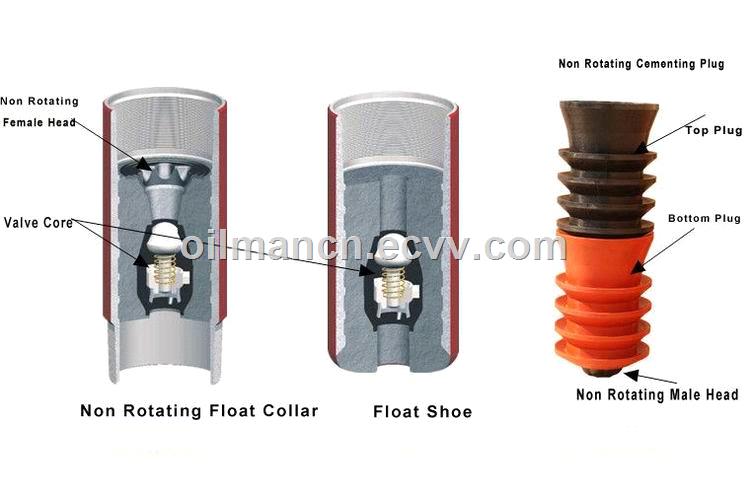

1. Non Rotating Float Collar&Shoe Inner Structure with Non Rotating Cementing Plug

2. Stab in float collar&shoe with Latch in profile

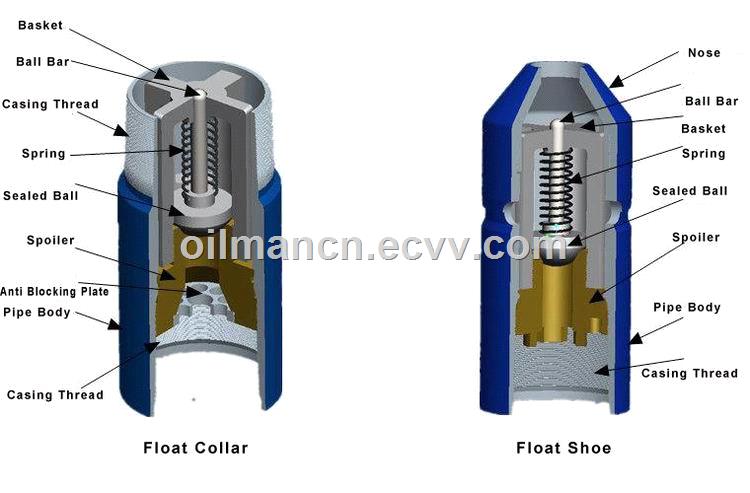

3. Float Collar &shoe Inner Structure

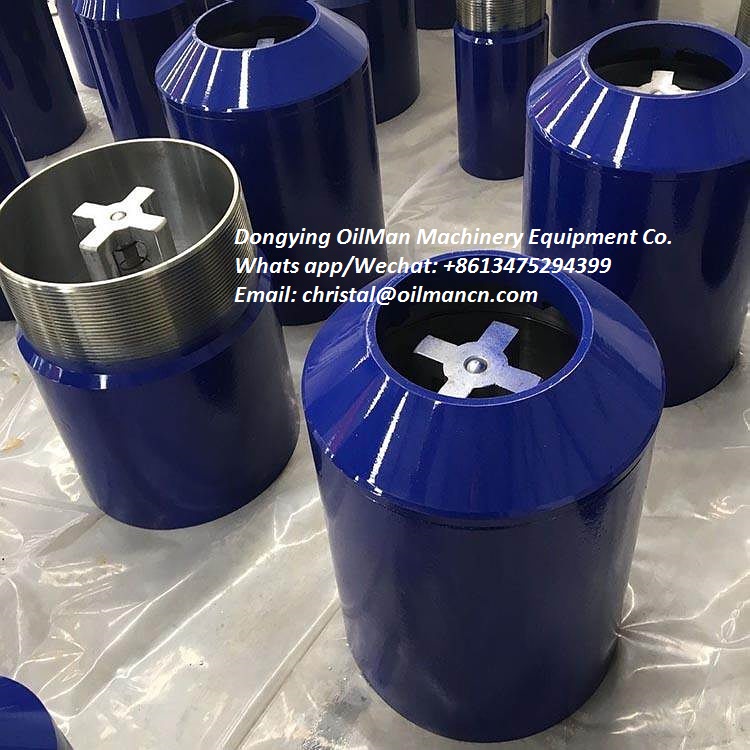

Products Show:

Company Information:

about us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, Including drilling Rig & accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with First-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
