Product Main

Quick Details

Brand Name: BonTek
Product Series: LN
Semiconductor Type: Lithium Niobate
Manufacturing Technology: Wafer
Diameter: 76.2 - 200mm
Place of Origin: China (Mainland)

Specifications


Material Characteristics

Material

3" 4" 6" 8" LN wafer Saw/Optical grade

Orientation

X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized

Curie Temp

1142°C±3°C

Doped with

Zn,  MgO  single or double doped available


Processing capacity

Surface finish

Single or double sides polish (DLP/SLP/ SSP/DSP all available )

Thickness

0.18/0.25/0.35/0.50/1.00 mm

0.25/0.35/0.50/1.00 mm

TTV

<1~5m

BOW

± (25m ~40um )

Warp

<= 35m

LTV (5mmx5mm)

<1.5 um

PLTV(<0.5um)

≥98% (5mm*5mm)  with 2mm edge excluded

Edge

Compl't with SEMI M1.2 with GC800# .Regular at C typed

Orientation flats

Available, per request

Polished side Ra

Roughness Ra<=5A

Back Side Criteria

Roughness Ra:0.5-1.0m GC#1000

Edge Rounding

Compliant with SEMI M1.2 Standard/refer to IEC62276

Cracks, saw marks, stains

 None

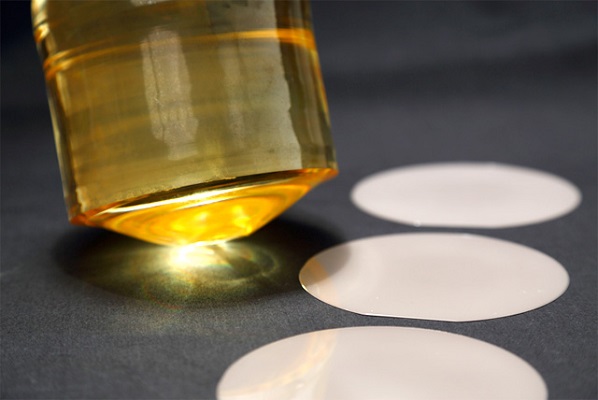

Lithium Niobate LiNbO3 Wafers
