| Usage: | Environmental test chamber |
|---|---|
| Power: | Electronic |
| Brand Name: | Amade-tech |
| Warranty: | 12 months |
| weight: | 300kg |
| Model Number: | AT-C1009 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

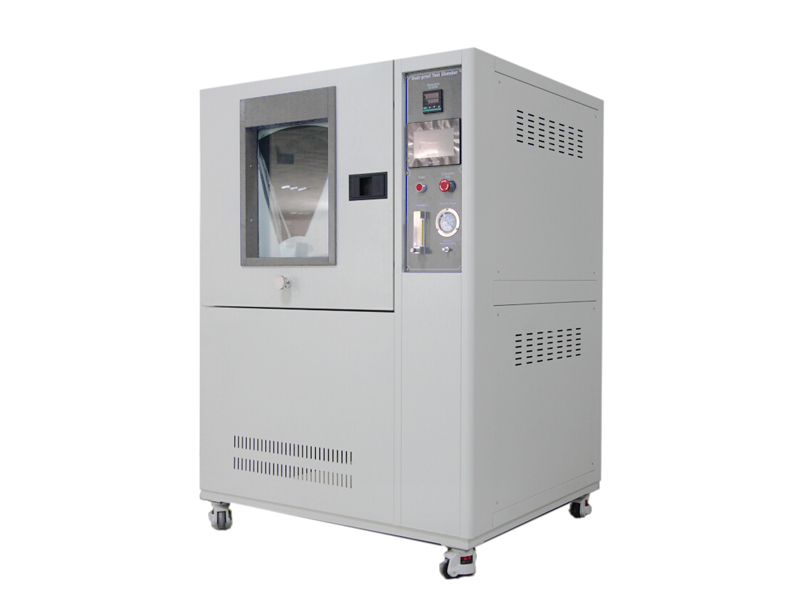

Sand and dust test chamber
Blowing sand and dust test chamber is used to enable the specimen to be exposed to harshly man-made sand and dust circumstances, to measure the dust proof performance.
Blowing sand and dust test chamber is used to enable the specimen to be exposed to harshly man-made sand and dust circumstances, to measure the dust proof performance.
Standards: IEC60529(IP5X and IP6X), ISO 20653, GB4208, GB/T2423.38, BS 60598, DIN 40050-9 etc.
Working area |
600X600X600mm |
800X800X800mm |
1000X1000X1000mm |
Temperature control |
RT~70℃ | ||
amount |
2kg~4kg/m3adjustable | ||
Air flowing velocity |
≤1.5~2m/s | ||
Mesh diameter |
50um | ||
Wire spacing |
75um | ||
Vacuum pump |
Suction flow rate(06)L/min Pressure difference (negative pressure): 0~2kpa | ||
Specimen power connection |
AC110V, 50Hz, AC220V 50Hz | ||
