| Brand Name: | Hong ye |
|---|---|
| Color: | Black/gray |
| Sample: | available |
| appearance: | liquid |
| MOQ: | 200kg |
| Model Number: | HY-230 |
| Place of Origin: | China (Mainland) |
| Application: | Electronic Potting |
| Color: | Black/gray |
| Mix Ratio: | 10:1 |
| Sample: | Available |
| Purity: | 100% |
| Certifications: | RoHS, MSDS, SGS, ISO9001: 2000 |
| MOQ: | 200 Kg |
Quick Details
Specifications
RTV-2 condensation type electronic potting silicone glue for insulation
Product Description
RTV-2 condensation type electronic potting silicone rubber for insulation is a kind of two component (10:1 mixing ratio)tin cure silicone with characteristics of heat-conducting, low viscosity, inherent flame resistance, waterproofing, etc.
RTV-2 condensation type electronic potting silicone rubber for insulation can cure both at room temperature and heated temperature and the curing time can be accelerated by higher temperature.
APPLICAIONTS:
1. Applying for the surface of PC (Poly-carbonate), PP, ABS, PVC, Metal, etc.
2. Outdoor protection for LED screen
3. Insulation, waterproof and bonding of general electronic components
4. Filling for LED, LCD electronic display, circuit board, PCB substrate, etc.
5. High powered electronic encapsulation and DC/DC moudule and circuit board which requires heat dissipation and high temperature rsistence
Datasheet
Model |
Color |
Viscosity (cps) |
Hardness (A°) |
Mixing ratio |
Operating Time(min) |
Curing Time(Hr, 25C) |
HY-230 |
Black/gray |
5000±1000 | 15±3 |
10:1 |
20~30 |
1~2 |
Note: We supply many types RTV-2 condensation type electronic potting silicone rubber for insulation, pls send me your requirements. Then we wil recommend you the most suitable one according to your requirements.
Hong Ye Silicon Rubber Co.,Ltd
We are the manufacturer specializing in molding silicone rubber,special silicon for manual molding, shoe mold rubber, pad printing silicone,encapsulants and potting compound,addition cure liquid silicone, lifecasting,food grade silicone rubber, trademark silicone rubber, HTV silicone rubber, hot stamping silicone plate, hot stamping silicone roller, gross rubber, RTV-2 silicone rubber, silicone molds, silicone products,etc. over 20 years, Hong Ye Silicon Rubber Family keeps efforts on marketing "Hongye" as an internationally recognized brand, and we have established more and more good relationship with our customers and have friendly communications with each other.

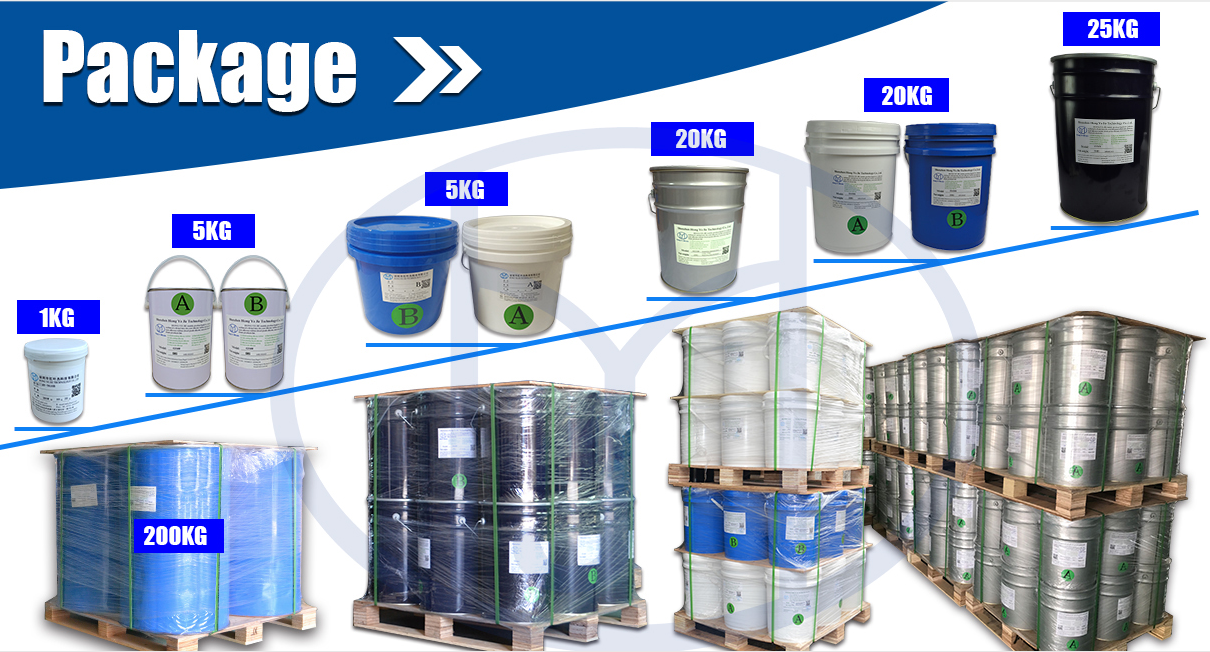

Packaging & Shipping
Shelf life
Twelve(12) months when stored under dry and cool place by original package under 25C
this kind of product is non-dangerous product, which could be transported as general chemicals.
Payment Terms
1. We accept T/T,L/C for big amount.
2. for small amount, you can pay us by Paypal, Western Union.
