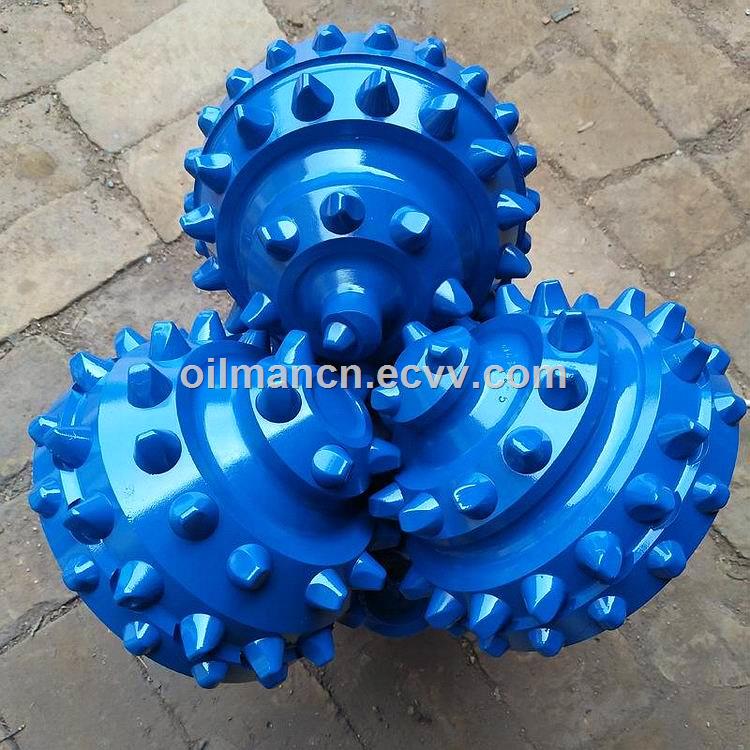

Description of Tricone Bits:

the tricone drill bit is the most popular drilling bit in the world,it can be widely used for Oil&Gas Drilling,Mining,Water Well,Geological Exploration areas.Our tricone bit divideds into metal sealed drill bit and rubber sealed bit.



1. the C-Center jet can avoid the formation of a ball in the bit, eliminate the fluid area at the bottom of the well, accelerate the upward flow of drilling cuttings and improve ROP.

2. High saturation NBR bearings can reduce sealing pressure and improve sealing reliability.

3. the G-Gauge protection improves the measuring ability and prolongs the service life of the bit.

4. Adding a row of teeth between the rear taper and the outflow to trim the borehole and protect the cone.

Tricone Bits Specifications
Regular Size	API reg pin	Regular Size	API reg pin
3 7/8(98mm)	2 3/8	4 5/8(118mm)	2 7/8
5 5/8(142.8mm)	3 1/2	5 7/8(149.2mm)	3 1/2
6 (152.4mm)	3 1/2	6 1/2(165)	3 1/2
7 1/2(190mm)	4 1/2	7 5/8(193mm)	4 1/2
8 1/2(215.9)	4 1/2	9 1/2(241..3mm)	4 1/2
10 5/8(269.8mm)	6 5/8	11 5/8(295.3mm)	6 5/8
12 1/4(311.15mm)	6 5/8	13 5/8(346mm)	6 5/8
15 1/2(393mm)	7 5/8	16(406.0mm)	7 5/8
17 1/2(445mm)	75/8	26(660mm)	7 5/8



IADC	Rock formation	WOB (KN/mm)	PRM(r/min)
415/425/435	Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc	0.35~0.90	140~70
447	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc.	0.35~1.00	140~60
517	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc	0.35~1.05	120~50
527	Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc.	0.35~1.05	120~50
537/547	Low compressive strength, medium hard formation with hard abrasive interlayer, like hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc.	0.50~1.05	110~40
617/627	High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc.	0.50~1.05	80~40
637/647	High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc.	0.7~1.20	70~40

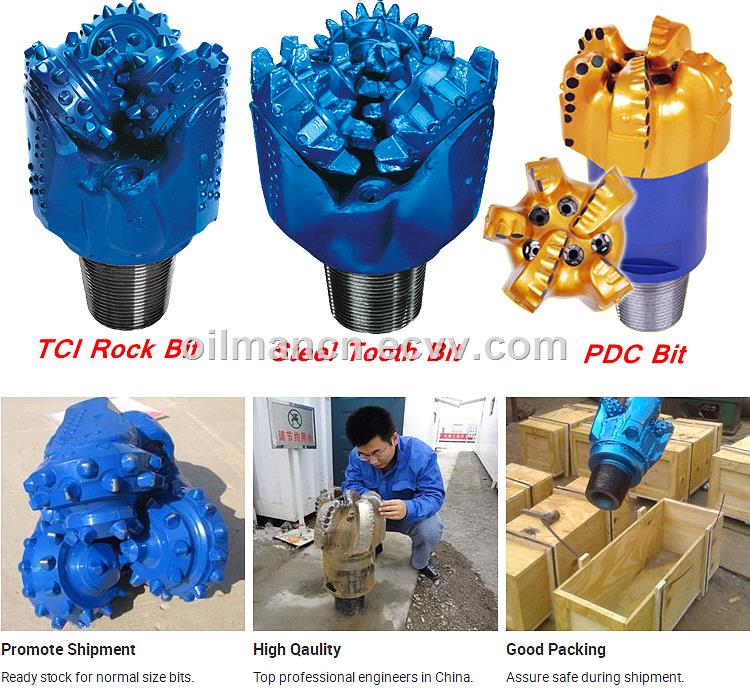

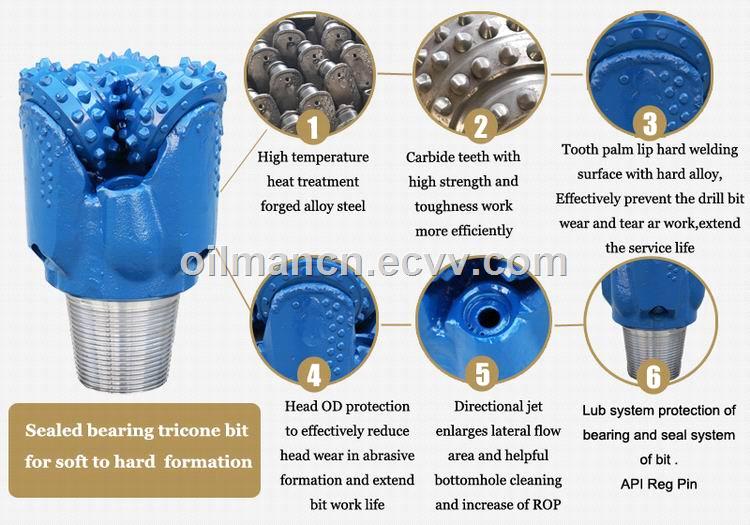

Our Advantages:

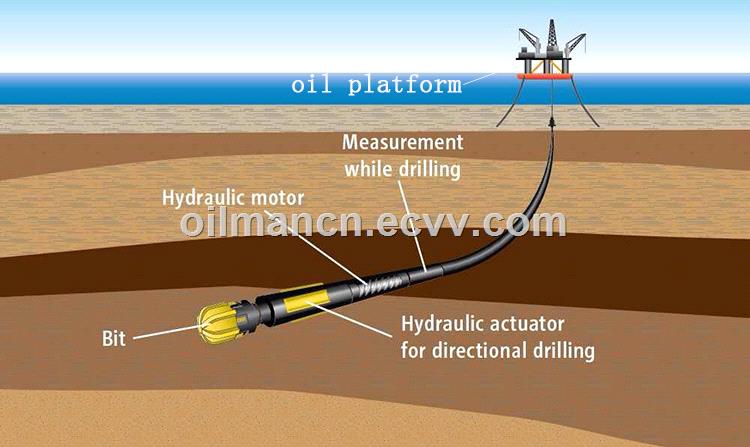

Application:


Company Information:
about us
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, Including drilling Rig and accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with First-class products, first-class service and reasonable prices.
