Replaceable Rubber Pistons

Our replaceable rubber piston is made with HNBR to resist extrusion and abrasion. the two piece design allows for rubber replacement at lower operating pressures, while the robust construction makes it suitable for running at pressures up to 7500 PSI. In a very wide range of drilling conditions, the replaceable rubber piston can run in fluids from clear water up to heavy weight drilling mud. these pistons are fully interchangeable with most other manufactures products. Available sizes range from 3" through 7-1/2".

Premium bonded PU piston

Premium bonded PU piston apply advanced polymer compound, which provides strength to withstand chemical attack from additives used in today's oil, synthetic and water based drilling fluids. The compound also has improves abrasion resistance from drilling solids, capable of operating in fluid temperature up to 300°F.

Applications

High Pressure Drilling.

Elevated Mud Temperature.

Synthetic Drilling Fluid.

Ceramic and Zirconia Liners.

Chrome Sleeved Liners.

BONDED RUBBER PISTON

Bonded rubber pistons are constructed of HNBR, bonded to a solid metal hub. the oil resistant rubber is designed to provide optimum performance in oil base or water base mud and high Drilling pressures.

the oil resistant rubber is designed to provide optimum performance in oil base or water base mud and high drilling pressures.

Features

High tensile strength.

Rated for all drilling operations.

Maximum operating temperature is 250°F.

Extended service life.

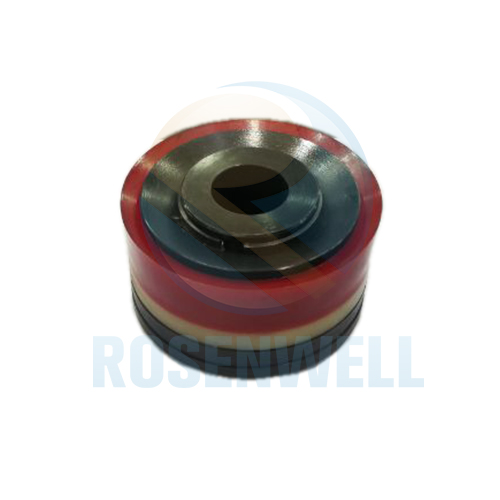

BONDED URETHANE PISTON

BONDED URETHANE PISTON are constructed of double durometer urethane, bonded to a solid metal hub. Double durometer urethane is designed to provide optimum performance in oil-based mud and high drilling

Pressures.

Metal hub is made of 42CrMo forged steel, treated by phosphating and Oxidizing.

Piston cup is Vulcanized on  piston hub directly.

Feature

Rated for all drilling operations.

Maximum operating temperature is 180℉.

High pressure mud pump service, 7,500 psi (51.7 MPa)

Extended service life up to 300hrs.

Rosenwell can provide the following part number of the product

#AH33001-05.19.00#AH100101051400#AH00000601030001#AH0000060103010001#AH35001-05.20.00#AH050101051400#AH36001-05.28.00#AH130101052100#T54-19.00#T504-008.00#T54-17.00#T504-006.00#T54-23.00#T504-012.00#T54-22.00#T504-011.00#T54-24.00#T504-013.00#T54-21.00#T504-010.00#T54-25.00#T504-014.00#AH33001-05.19.03.00#AH0000040500#AH33001-05.19.04.00#AH0000040600#AH33001-05.19.05.00#AH0000040700#AH33001-05.19.06.00#AH0000040800#AH33001-05.28.01.00#AH0000040900#T54-13.00#T504-002.00#T54-19.00#T504-008.00#T54-17.00#T504-006.00#T54-23.00#T504-012.00#T54-22.00#T504-011.00#T54-24.00#T504-013.00#T54-21.00#T504-010.00#AH33001-05.19.07.00#AH0000040100#AH35001-05.20.01.00#AH0000042100#AH33001-05.19.08.00#AH0000040200#AH35001-05.20.02.00#AH0000042200#AH33001-05.19.01.00#AH0000040300#AH35001-05.20.03.00#AH0000042300#AH33001-05.19.02.00#AH0000040400#AH35001-05.20.04.00#AH0000042400#AH33001-05.19.03.00#AH0000040500#AH35001-05.20.05.00#AH0000042500#AH33001-05.19.04.00#AH0000040600#AH35001-05.20.06.00#AH0000042600#AH33001-05.19.05.00#AH0000040700#AH35001-05.20.07.00

#AH0000042700#AH33001-05.19.06.00#AH0000040800#AH35001-05.20.08.00#AH0000042800#AH33003-03.00#AH000006010300#AH33003-03.00(6923-0007-00)
