| Size: | 3230*40*0.7 |
|---|---|
| Type: | Sanding Paper |
| Brand Name: | Moresuperhard |
| Material: | diamond |
| Grit: | 70 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

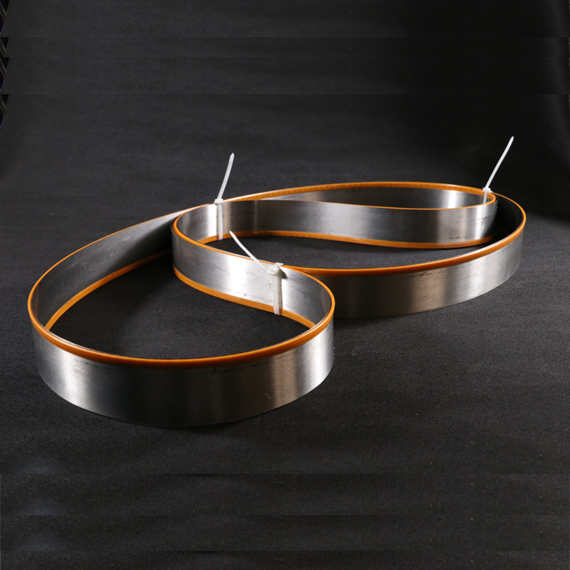

Diamond Bandsaw Blades
Application: monocrystalline silicon,polycrystalline silicon in solar energy, semiconductor and sapphire, ruby in LED field, quartz glass, silicon ingot, sapphire ingot and so on.
Edge shapes diamond bandsaw blades: continuous, segmented ( half moon) and serrated shape
Edge shapes diamond bandsaw blades: continuous, segmented ( half moon) and serrated shape
Diamond bandsaw blades
the diamond blades are available in continuous and gulleted edges. In the processing of the electroplated diamond band saw,the heating temperature of the diamond is less than 100C,so the damage to the diamond is very small,then the Electroplated Diamond Band Saw can also have the good long life time.
Application of Diamond Band Saw BladeCutting super hard material and brittle material,such as stone, monocrystalline silicon,polycrystalline silicon in solar energy, semiconductor and sapphire, ruby in LED field, quartz glass, silicon ingot, sapphire ingot and so on.
the Specifications of Diamond Band Saw Blades
| Length(mm) | Width(mm) | Thickness(mm) | |
| 3230 | 40 | 0.7 | |
| 3440 | 40 | 0.7 | |
| 3530 | 40 | 0.7 | |
| 3700 | 80 | 0.6 0.7 | |
| 4320 | 60 | 0.5 0.6 0.7 | |
| 5400 | 60 | 0.5 0.6 0.7 | |
| 6095 | 40 | 0.7 | |
| Other specifications can be made according to customers requirements | |||
Edge Shapes of Diamond Band Saw Blades
Continuous A variety of band core width available Continuous rim design reduces the saw marks on the materials Suitable for dry cutting hard materials, such as glass, ceramic, carbon materials and so on. | |
Segmented ( half moon) Cutting hard and brittle materials Superior tool life and cutting ability in silicon processing Allows greater flexibility in customizing blade edge width and pitch | |
Serrated Cutting difficult to cut materials Reduced -loading saw tooth design encourages chip evacuation |
Application Cases of Continuous Diamond Coated Band Saw Blade
* 6400mm length continuous diamond coated band saw blade have sent to Indian clients
| Product Name | Continuous Diamond Coated Band Saw Blade |
| Size | 6400mmx41mmx1.2mm |
| Applicable Workpiece | Cutting Graphite Materials |
