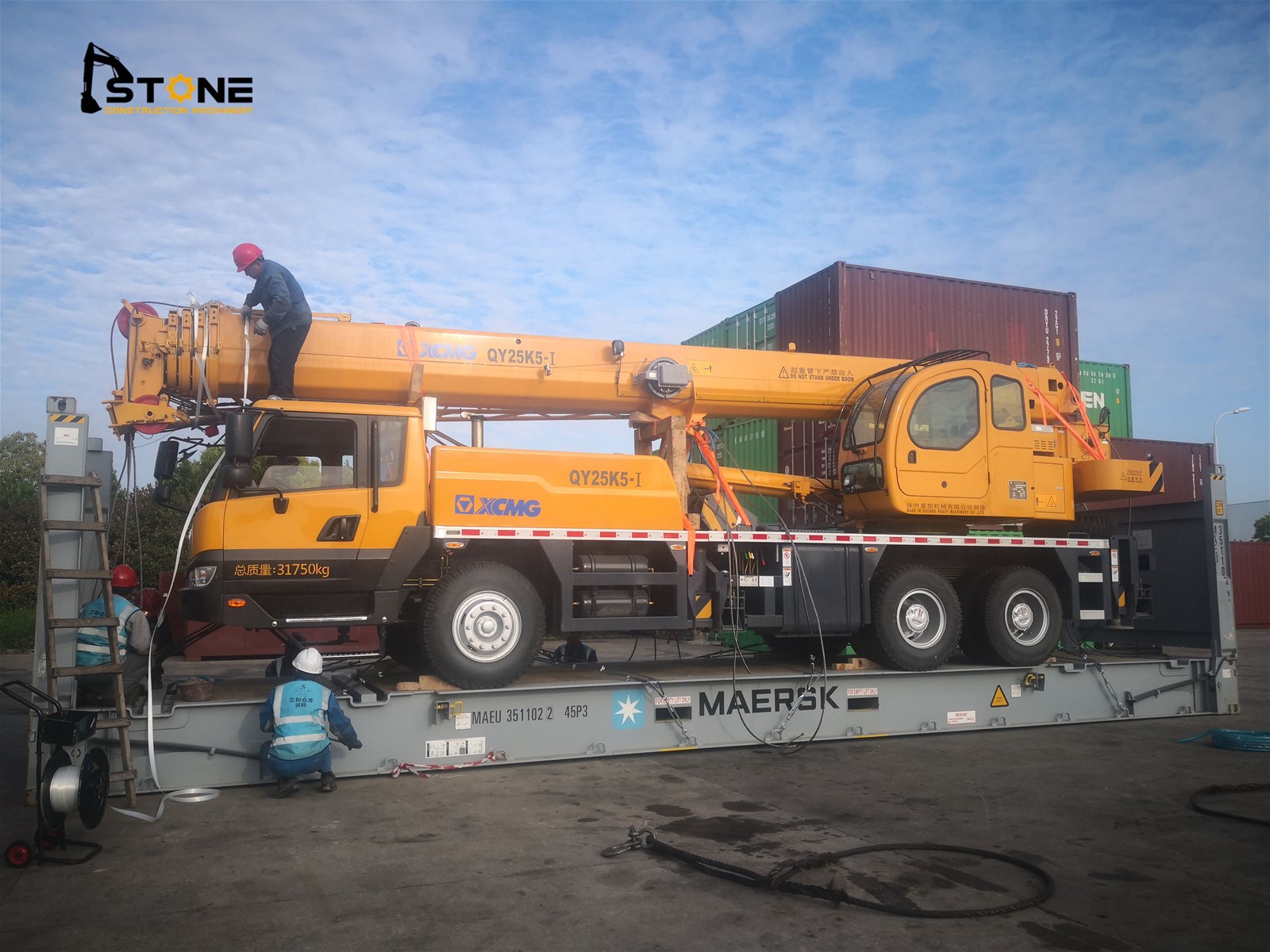

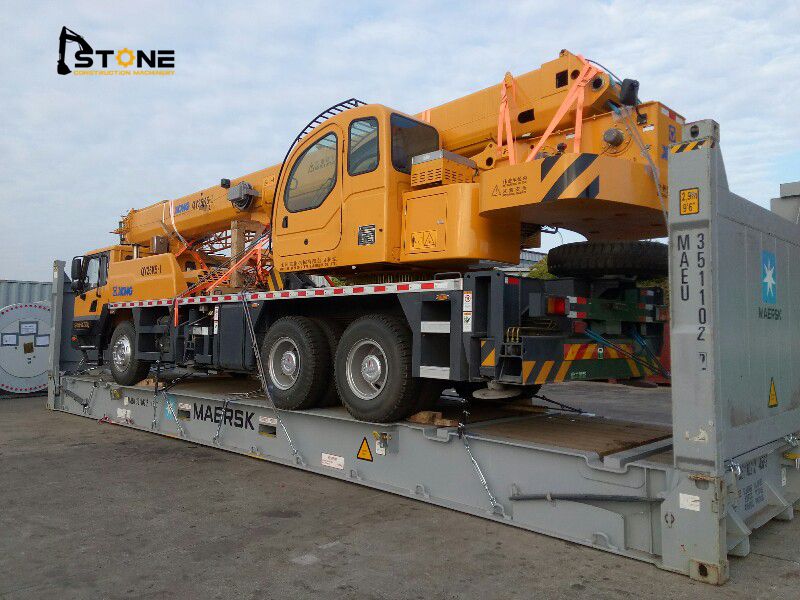

25 ton XCMG Truck Crane QY25K5-I

1.Brief Introduction:

Leading Performance: the boom length in full extension is 39.5m, the performance Leading in 5%. the grade ability is 40%, which make the machine have good road Adaptability.
the unique U boom and plug-in boom head make the Load-carrying capacity more balanced, and lift more smoothly.
the unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more Reliable.
the control system is optimized by 8 patents; Lifting, rotation, and luffing are easy and reliable.
Six unique technologies supply the quality Assurance, and make the products keep a high value.
the innovative jib system adopts embedded block, Plug-in boom head and octagon jib, which has excellent lifting performance and Safe and reliable lifting work.
the unique stretch and retract technique avoids the Bend of the core pipe and cylinder and the break of the boom caused by Misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high Efficiency and energy conservation of the lifting, rotation, and luffing Systems.
 Adopt the new hydraulic motor with big torque Starting point, making the secondary lifting safer.
the torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. the precision is ahead of the industry.
the humanity design makes the cab and control cab More spacious, and easy to operate.
Six unique manufacturing technologies ensure the High quality.

2.Techincal parameters:

Description Unit Parameter Value   Overall length mm 12300   Overall width mm 2500 Overall Height mm 3350 Wheel Base mm 4425+1350 Track mm 2074/1834/1834 Total vehicle Mass in travel configuration kg 31750 Axle Load    Front axle kg 6550 Rear axle 25200 Engine Model SC8DK280Q3 Engine rated Power Kw/(r/min) 206/2200 Engine rated Torque N.M/(r/min) 1112/1400 Max. Travel Speed km/h 80 Min. Turning Diameter m 22 Min. Ground Clearance mm 275 Max. Grade Ability % 40 Approach angle ° 16 Departure Angle ° 13 Braking Distance (at 30 km/h, full load ) m ≤10 Oil Consumption per 100km L ≤37 Exterior noise Level during acceleration traveling DB (A) 88 Noise level at Seated position DB (A) 90

Ⅱ.Main Technical Data Table for Lifting Operation

Max. Total rated lifting capacity			t	25
Min. Rated working radius			m	3
Turning radius at turntable tail			mm	3065
Max. Load moment	Base boom		KN.M	961
	Fully-extended boom			533
	Fully-extended boom + Jib			451
Outrigger span	Longitudinal		m	6
	Lateral			10.5
Hoist height	Base boom		m	10.5
	Fully-extended boom			39.2
	Fully-extended boom + Jib			47.2
Boom length	Base boom		m	10.4
	Fully-extended boom			39.5
	Fully-extended boom + Jib			47.8
Jib offset angle			°	0, 15, 30
Time for boom raising			s	68
Time for boom extending fully			s	150
Max. Slewing speed			r/min	2.5
Outrigger extending and retracting time	Outrigger	Extending	s	35
	beam	Simultaneously
		Retracting		30
		Simultaneously
	Outrigger	Extending		40
	jack	Simultaneously
		Retracting		35
		Simultaneously
Hoisting speed	Main winch	Full load	m/min	75
(single line		No load		125
	Auxiliary winch	Full load		75
		No load		125
Exterior noise level			DB (A)	≤122
Noise level at seated position			DB (A)	≤90
