| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | TOPFST |
| Type: | Reaction Kettle |
| Automatic Grade: | Automatic |
| Condition: | New |
| Warranty: | 1 YEAR |
| Weight: | 69kgs |
| Dimension(L*W*H): | 690*560*1550mm |
| Power(W): | 300 |
| Voltage: | 110V/220V |
| Model Number: | TST-10L |
| Place of Origin: | China (Mainland) |
| Sealing Type:: | Mechanical Seal |
| Vacuum Degree:: | 0.098 Mpa |
| Stirring speed:: | 50-600 Rpm |
| Agitator:: | 304 Stainless Steel Coated |
| Heating method:: | Thermal Oil Heating |
| Application:: | Labs Research |
| Key Selling Points:: | Easy to Operate |
| Supply capacity:: | 1L~200L |
| Key words: | Double layer/ jacketed glass reator |
Quick Details
Specifications

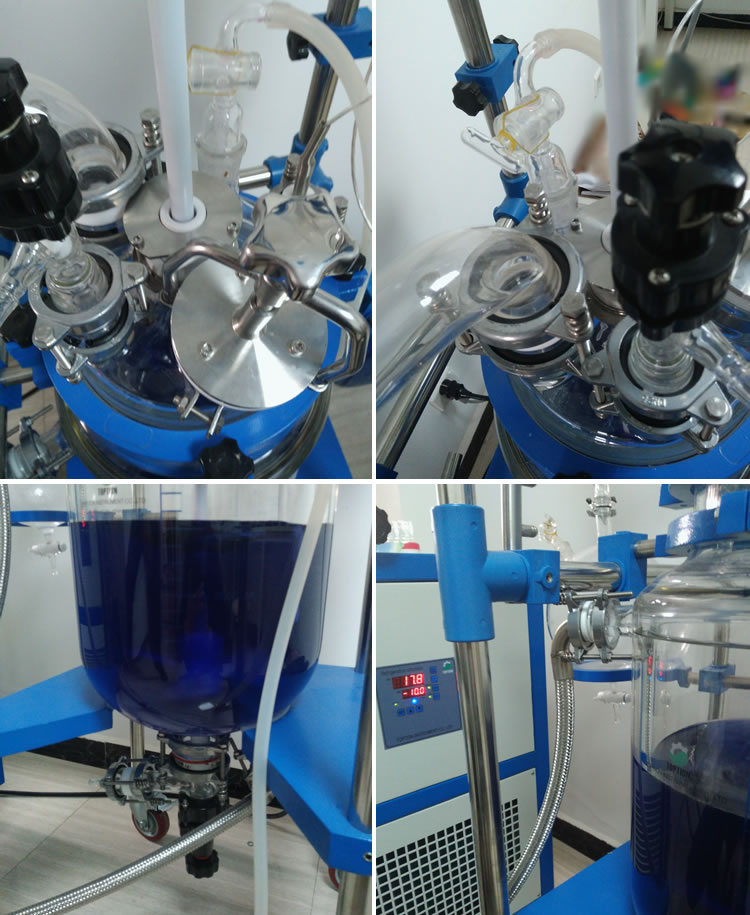

Standard jacketed glass reactor and 100l vacuum distillation reactors, which are widely used in chemical production, pharmaceutical manufacturing, pilot plant, new material synthesis, life science, etc. The glass reactors in our factory, we can design the reactors as per customers' requests. Such as single layer, three layer, PH test, sand core filter.
Q1. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. how about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. the specific delivery time depends on the items and
the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We also can design for you.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: how do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
| Type | Stir medium flange | Liquid material inflow | Condenser | Temp. Measure | Multi Function valve | Inner diameter of reactor body(mm) | External diameter(mm) | Reactor body height(mm) | Power(w) | Rotate speed(rpm) |
| TST-1L | 35 | 24# 0.25L | 24# | 14# | ----- | 113 | 150 | 250 | 40 | 50-800 |
| TST-2L | 35 | 24# 0.25L | 24# | 14# | ----- | 135 | 180 | 280 | 40 | 50-800 |
| TST-3L | 35 | 24# 0.25L | 24# | 14# | ----- | 150 | 200 | 300 | 40 | 50-800 |
| TST-5L | 40 | 24# 1L | 24# | 19# | 24# | 180 | 230 | 400 | 60 | 50-600 |
| TST-10L | 50 | 34# 1L | 34# | DN15 | DN25 | 230 | 290 | 450 | 120 | 50-600 |
| TST-20L | 50 | 34# 1L | 34# | DN15 | DN25 | 290 | 330 | 550 | 120 | 50-600 |
| TST-30L | 50 | 34# 1L | 34# | DN15 | DN25 | 330 | 365 | 730 | 120 | 50-600 |
| TST-50L | 50 | 34# 1L | 34# | DN15 | DN25 | 365 | 410 | 850 | 140 | 50-600 |
| TST-80L | 50 | 5L 24# | DN40 ball mouth | DN15 | DN25 | 410 | 460 | 950 | 250 | 50-600 |
| TST-100L | 60 | 5L 24# | DN40 ball mouth | DN15 | DN25 | 460 | 500 | 950 | 250 | 50-600 |
| TST-150L | 60 | 5L 24# | DN40 ball mouth | DN15 | DN25 | 550 | 600 | 980 | 400 | 50-600 |
| TST-200L | 60 | 10L DN25 | DN50 ball mouth | DN25 | DN25 | 550 | 650 | 1170 | 400 | 50-600 |
