| Moving Type: | Wheel Loader |
|---|---|
| Type: | Front Loader |
| Brand Name: | XCMG |
| Condition: | New |
| Year: | 2021 |
| Make: | 2021 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | One year warranty or 2000 working hours |
| Rated Load: | 5 tons |
| Dimension(Long * Breadth * High): | 8225*3016*3515 mm |
| Place of Origin: | China (Mainland) |
| Model Number: | ZL50GN |
| Company: | Shanghai Stone Construction Machinery Co., Ltd |
Quick Details
Specifications

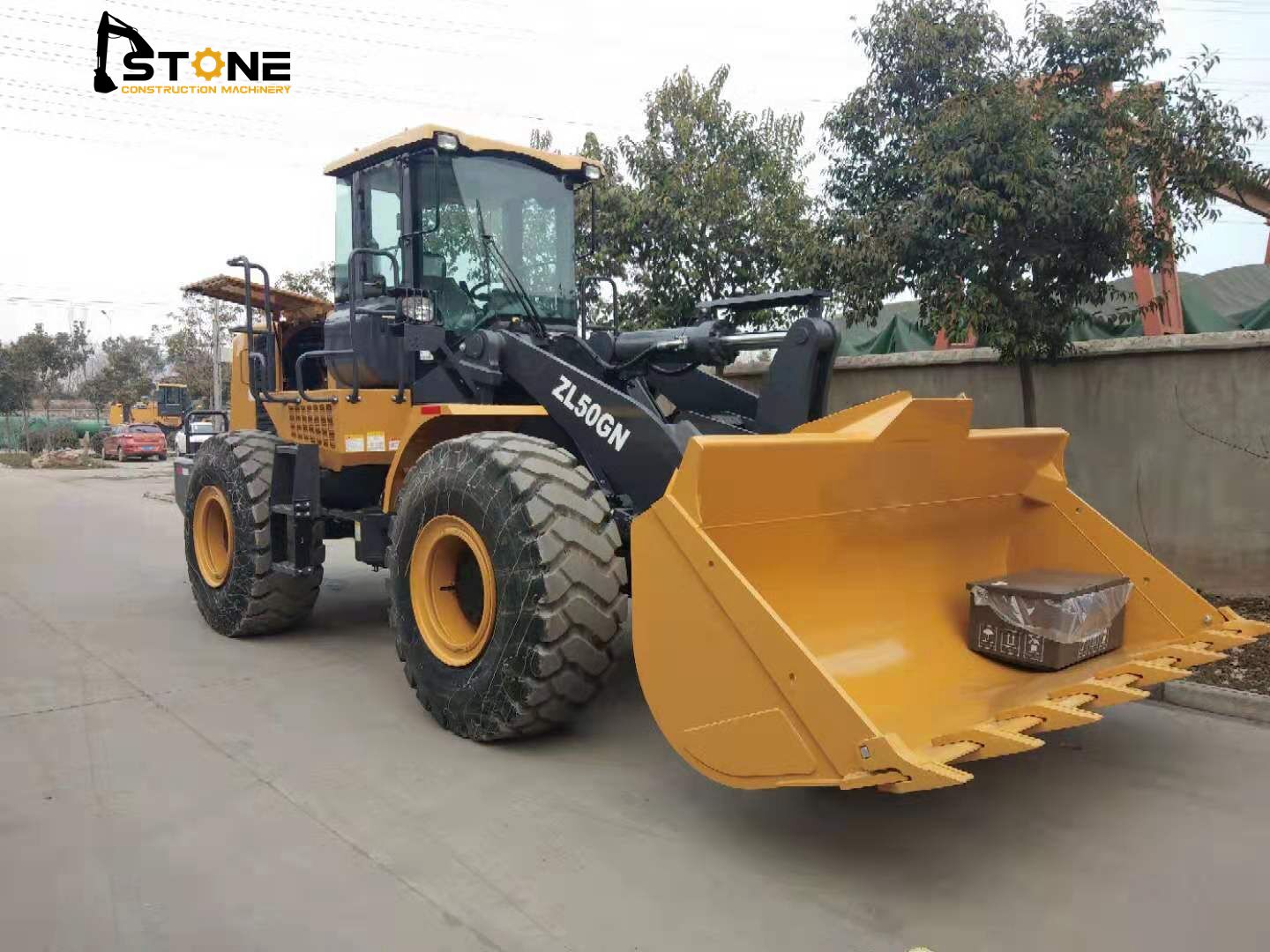

Brand new low price 5 ton XCMG Wheel Loader ZL50GN
Main configuration
Main configuration
* WEICHAI WD10G220E21 Engine 162KW
* Pilot control
* Air conditioner driving cabin
* Dry drive axle
* Planetary gearbox
Optional parts:
* Grasping grass pliers / Sliding fork / Standard bucket/ Side dumping / Light material Blade bucket 3.5m3 & 4m3& 4.5m3/ 2.5m3 Mine bucket.
1,High torque and high efficiency drive chain features reasonable matching.
2,the 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
3,this engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load
Operations.
4,the air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.
5,the easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.
Description |
Unit |
Parameter value |
Rated operating load |
kg |
5000 |
Bucket capacity |
m3 |
2.5~4.5 |
Machine weight |
kg |
17500±300 |
Dump clearance at maximum lift |
mm |
3100~3780 |
Reach at maximum lift |
mm |
1100~1220 |
Wheel base |
mm |
3300 |
Tread |
mm |
2250 |
Max.Breakout force |
kN |
175±5 |
Max.Horse power |
kN |
160±5 |
Hydraulic cycle time-raise |
s |
≤6 |
Total hydraulic cycle time |
s |
≤10.5 |
Min. Turning radius over tyres |
mm |
5925±50 |
Articulation angle |
° |
38 |
Gradeability |
° |
30 |
Tyre size |
23.5-25-16PR | |
Overall machine dimension LWH |
mm |
822530163515 |
Model |
WD10G220E21 | |
Rated Power |
kW |
162 |
Travel Speed |
I-gear(F/R) |
13/17km/h |
II-gear(F) |
41km/h |
