| After-sales Service Provided: | Overseas service center available |
|---|---|
| Brand Name: | Transcend |
| Product Type: | Chemical pump |
| material: | FRPP/PVDF |
| type: | Magnetic drive pump |
| Model Number: | TMP 30RM-100RM |
| Place of Origin: | China (Mainland) |
| Product Name: | Magnetic Driven Pump |
| Material: | FRPP/PVDF/CFRPP |
| Advantage: | Seal-less & Leak-free |
| Certificate: | CE Certification |
| Warranty: | 1 year warranty |
| Feature: | Lightweight&Strong |
| Power: | 180W/250W/45W/65W/180W/250W |
| Flow: | 32L/min. - 130L/min. |
| Head: | 3.8m - 12.8m |
| color: | Blue and Black |
Quick Details
Specifications
Transcend PUMPS and FILTERS Seal-less Magnetic Drive Pump
TMP 30RM - 100RM Chemical injection pump(180W - 250W)
Feature and Benefits:
1. Non-contact structure:
by accurately setting the relative position of the passive magnet and the active magnet, the position of the magnetic capsule can be effectively controlled magnetically. Even when idling, the rear end of the bearing will not contact the rear trhrust ring. this structure is effective, the generation of frictional heat is suppressed and the lubrication of the friction part is ensure.
2. Small and strong:
Lightweight appearance and standardized pump internal parts, easy to assemble, and easy to disassemble, inspect and maintain, convenient and time-saving. All the stress-concentrated parts, such as the front shell and the rear shell of the pump are reinforced with reinforcing ribs to further improve the pressue resistance and mechanical strength of the pump.
3. Innovative design, no leakage:
the new design of the pump front cover, a variety of piping connection methods to match your need, fully sealed, zero leakage. the impeller of one-pieces design ensures high efficiency and quiet operation, is not easy to damage, and improves the reliability of the pump under high temperature conditions.

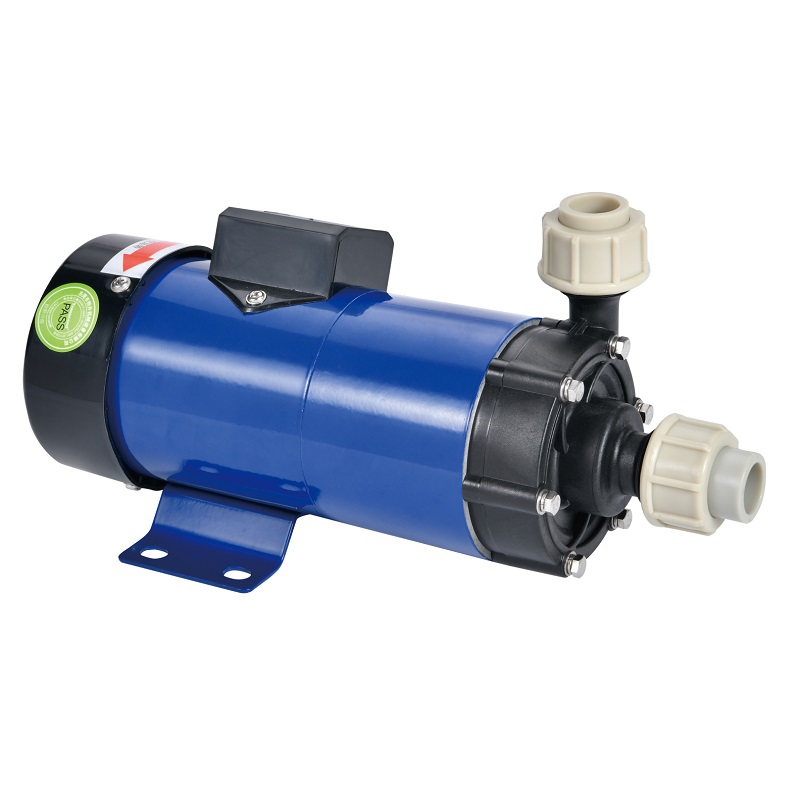

Product Pic.:

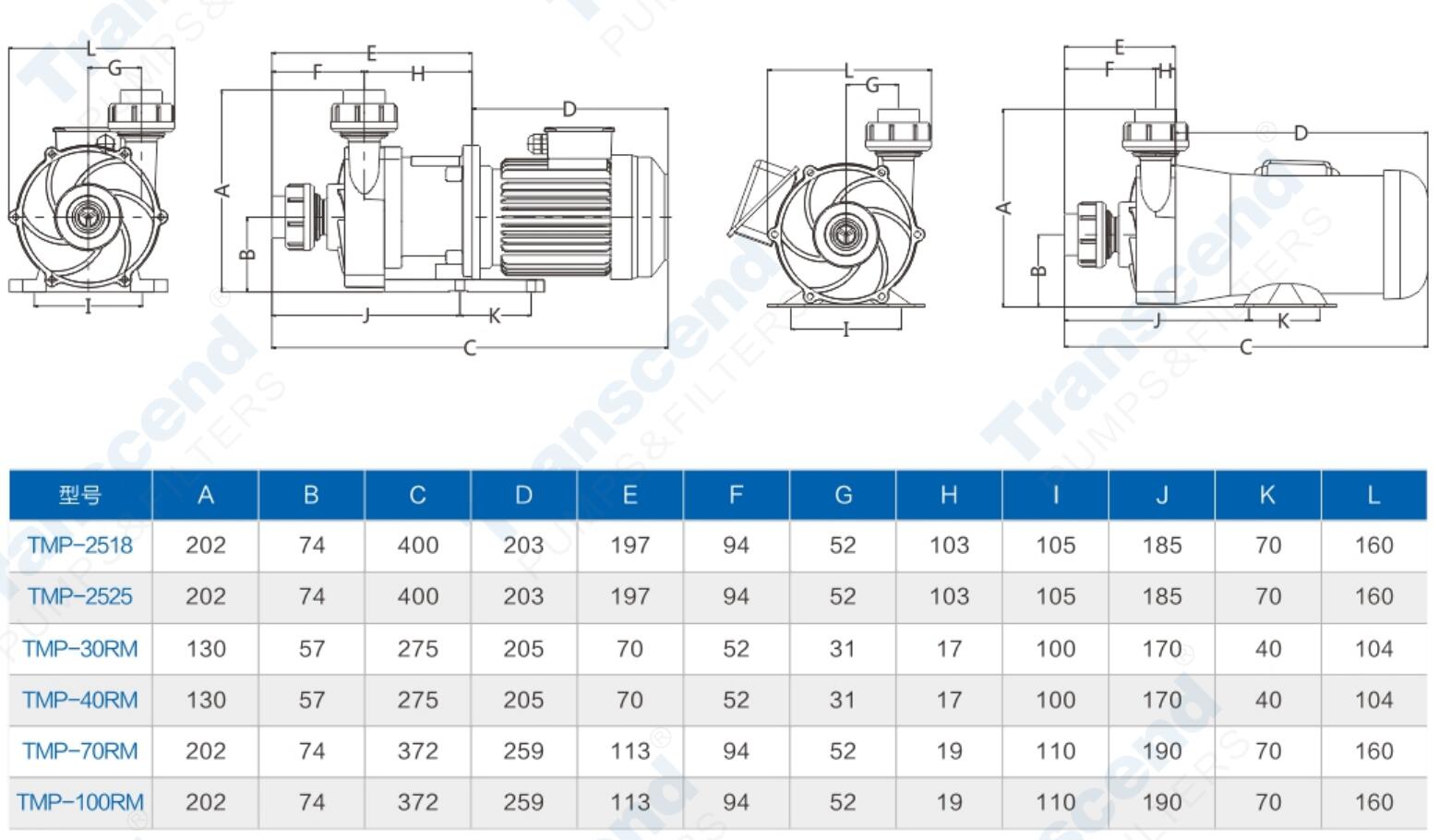

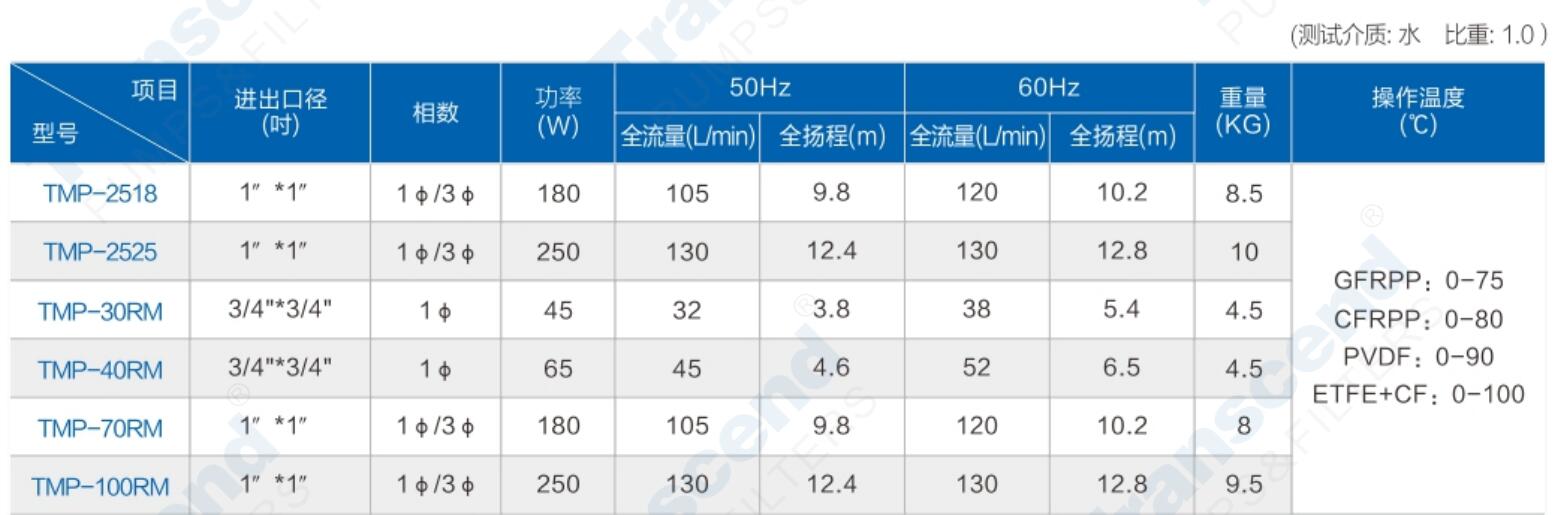

Model No.:

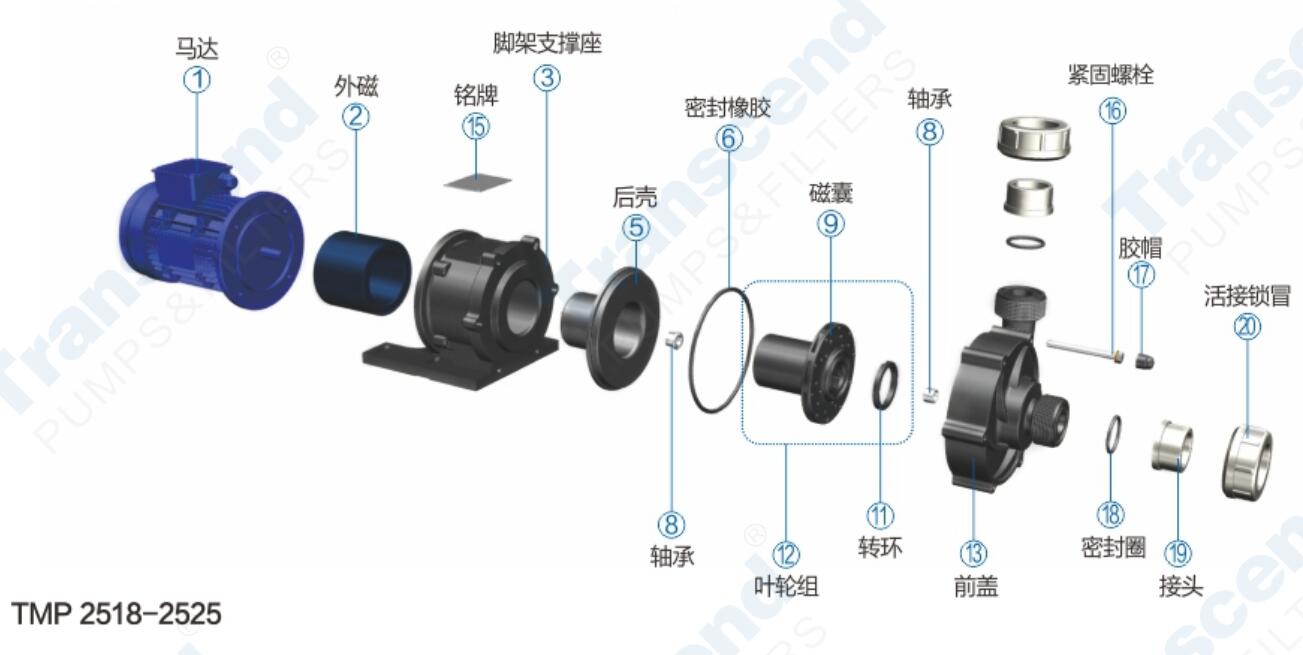

Explosive Drawing:

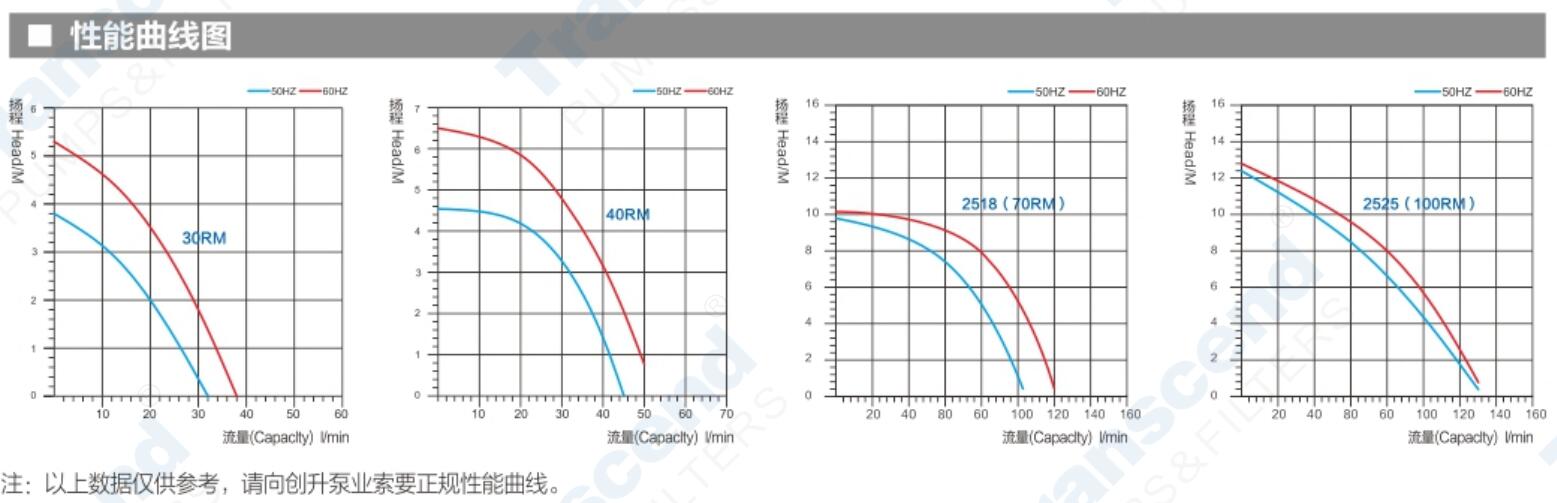

Curve & Performance:
CE Certificates:
Desc. for Model:
Model.: TMP - 25 25 3 C V R U 5 1 2 3 4 5 6 7 8 9 TMP - 100 RM C V R 3 5 1 10 11 5 6 7 4 9 |
| 1. Type: TMP |
| 2. in-Outlet: 25-1" |
| 3. Power: 25-250W 18-180W |
| 4. Phase: 1 Single-phase 3 Three-Phase |
| 5. Pump body material: C-CFRPP K-PVDF E-ETFE |
| 6: Rubber Material: V-VITON E-EPDM N-NBR |
| 7.Bearing material: A-Ceramic C-Carbon S-SIC R-PTFE |
| 8. Piping form: U-Union M-Thread H-Intubation |
| 9.Frequency: 5-50HZ 6-60HZ |
| 10. Power: 100-250W 7-180W 40-65W |
| 11. Access mode: RU-Union RM-Thread R-Intubation |
Product Pic.:
Model No.:
Explosive Drawing:
Curve & Performance:
CE Certificates:
