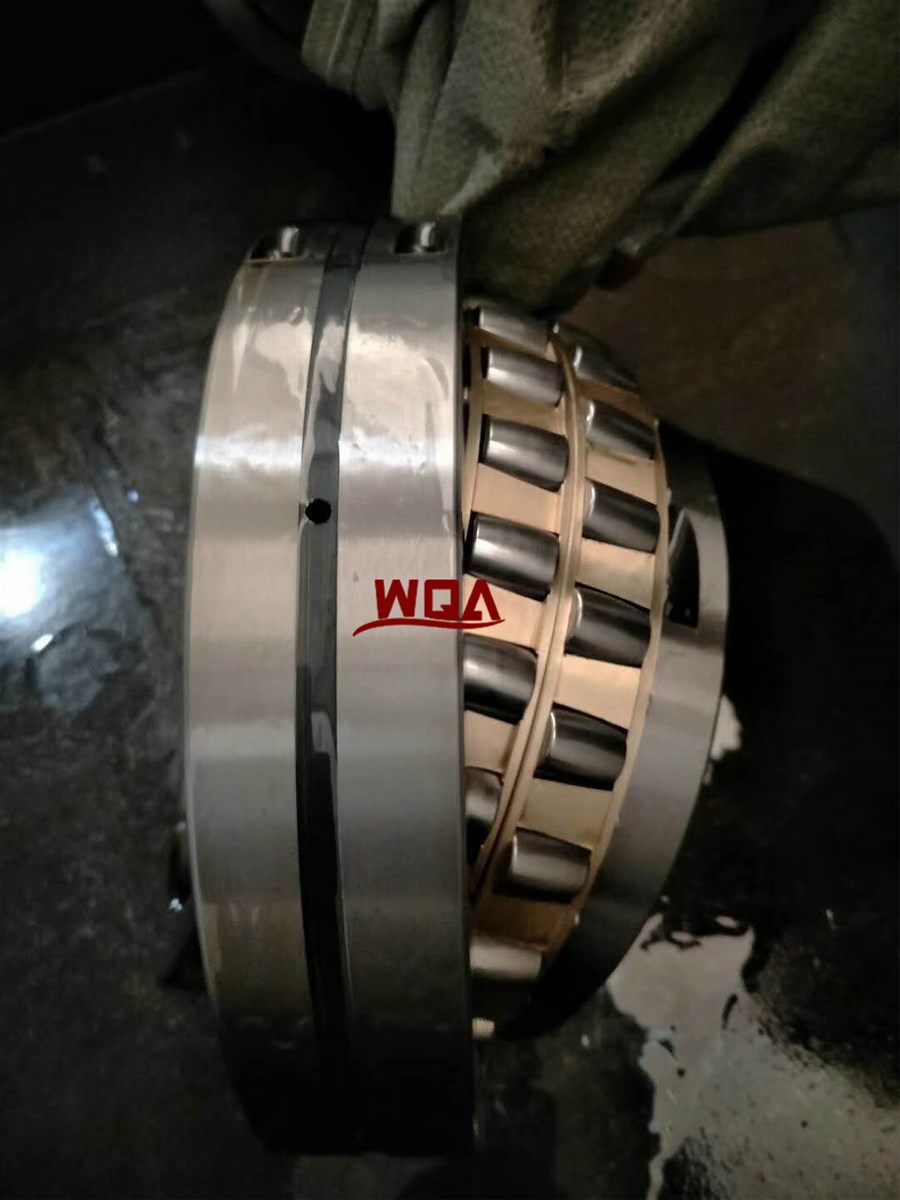

22211CAW33 Spherical Roller Bearing, with Bronze Cage, the 22211CAW33 inner diameter is 55mm, the 22211CAW33 outer diameter is 100mm and the 22211CAW33 width is 25mm with a C3 clearance.

• Item: 22211CAW33 Roller Bearing
• Type: Spherical Roller Bearing
• Cage: Bronze Cage with C3 clearance
• Dimensions: 55mm x 100mm x 25mm/Metric
• ID (inner diameter)/Bore: 55mm
• OD (outer diameter): 100mm
• Width/Height/thickness: 25mm
• Size: 55x100x25 mm
• Quantity: One Bearing
• Dynamic load rating Cr: 171,000 N
• Static load rating Cor: 144,000 N
• Limiting Speed:
  • Grease Lubrication: 5,300 RPM
  • Oil Lubrication: 6,700 RPM

WQA BEARING FACTORY supply 22211CAW33 spherical roller bearing,please contact with us.

WQA BEARING FACTORY 25 years bearing experience,excellent technology workers,strict boss,best after-sales service,to be your business successful.

New	Old	BOUNDARY DIMENSIONS(MM)			WEIGHT
Model	Model	d	D	B	(KG)
22205	3505	25	52	18	0.168
22206	3506	30	62	20	0.296
22207	3507	35	72	23	0.448
22208	3508	40	80	23	0J3B
22209	3509	45	85	23	0.59
22210	3510	50	90	23	0.83
22211	3511	55	100	25	0.83
22212	3S12	60	110	28	1.2
22213	3513	65	120	31	1.6
22214	3514	70	125	31	1.76
22215	3515	75	130	31	1 85
22216	3516	80	140	33	2.1
22217	3517	85	150	36	2.75
22218	3518	90	160	40	3.5
22219	3519	95	170	43	4.2
22220	3520	100	180	46	4.9
22222	3522	110	200	53	7.5
22224	3524	120	215	58	8.5
22226	3S26	130	230	64	11.3
22228	3528	140	250	68	14.6
22230	3530	150	270	73	18.45
22232	3S32	160	260	80	23
22234	3534	170	310	86	28.S
22236	3536	180	320	86	30
22238	3538	190	320	92	3S.8
22240	3540	200	360	98	47
22244	3544	220	440	108	61.8
22248	3548	240	440	120	85
222S2	3552	260	480	130	106
22256	3556	280	SOO	130	113.1
22260	3560	300	540	140	134.9
