| After-sales Service Provided: | Overseas service center available |
|---|---|
| Brand Name: | Transcend |
| Product Type: | Chemical pump |
| material: | FRPP/PVDF |
| type: | Submersible vertical pump |
| Model Number: | TPT 1-5HP |
| Place of Origin: | China (Mainland) |
| Product Name: | vertical submersible pump |
| Material: | FRPP/PVDF/CFRPP |
| Advantage: | Chemical Resistant |
| Warranty: | 1 year warranty |
| Certification: | CE certificate |
| Feature: | Lightweight&Strong |
| Power: | 0.75KW - 3.75KW |
| Flow: | 250L/min.-480L/min. |
| Head: | 11m -29m |
| In-Outlet(mm): | 50*40mm / 50*50mm |
Quick Details
Specifications
Transcned TPT Series Vertical Pump
Idle without Damage
TPT 1-5HP Vertical Pump(0.75KW - 3.75KW)
Features and Advantages:
1. Drying-running without damage.
2. Molded parts are out of FRPP, PVDF applicable to various chemicals.
3. the lightweight form and mounting plate structure is suitable for in-tank applications, easy to mount and maintain.
4. Shaft seal stops corrosive vapor to reach the motor bearing perfectly.
5. Closed impeller, fastened independence of rotational direction.
6. Shaft is separated from the chemicals by a reinforced motor bearings.
7. Radial and axial forces are absorbed by reinforce motor bearings.
8. Double protections of corrosion resistant of paint-coat.
9. with suction basket, PP or PVC outlet connection, Three-phase motor, 0.75KW to 3.75KW.
Model Indentification:
Model Desc.: TPT - 40 VK - 1 - 5 V P 1 2 3 4 5 6 7 |
| 1.Type: TPT |
| -Outlet: 40-1-1/2" 50-2" |
| 3.Gravity: VK-1.1 VP-1.4 |
| 4.5.Power: 1-1HP 2-2HP 3-3HP 5-5HP |
| 5.Frequency: 5-50HZ 6-60HZ |
| 6.O-Ring: V-VITON E-DPDM N-NBR |
| 7.Pump body: P-FRPP K-PVDF |

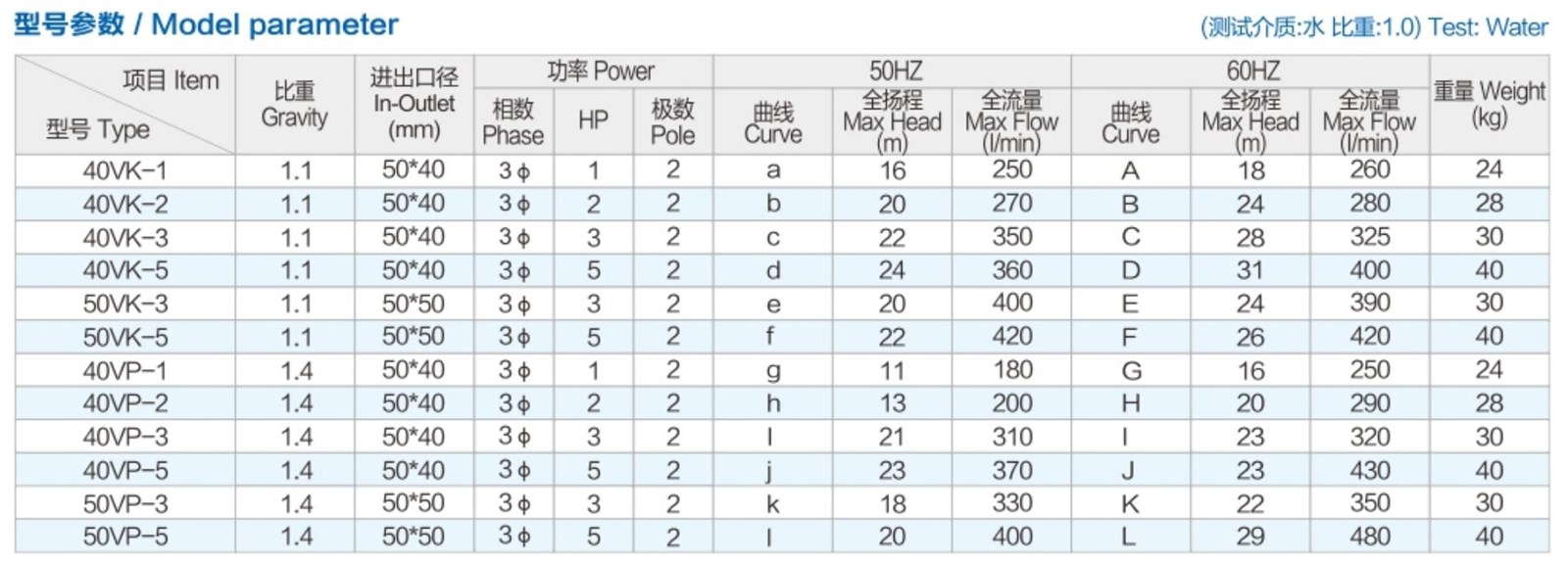

Model Parameter:

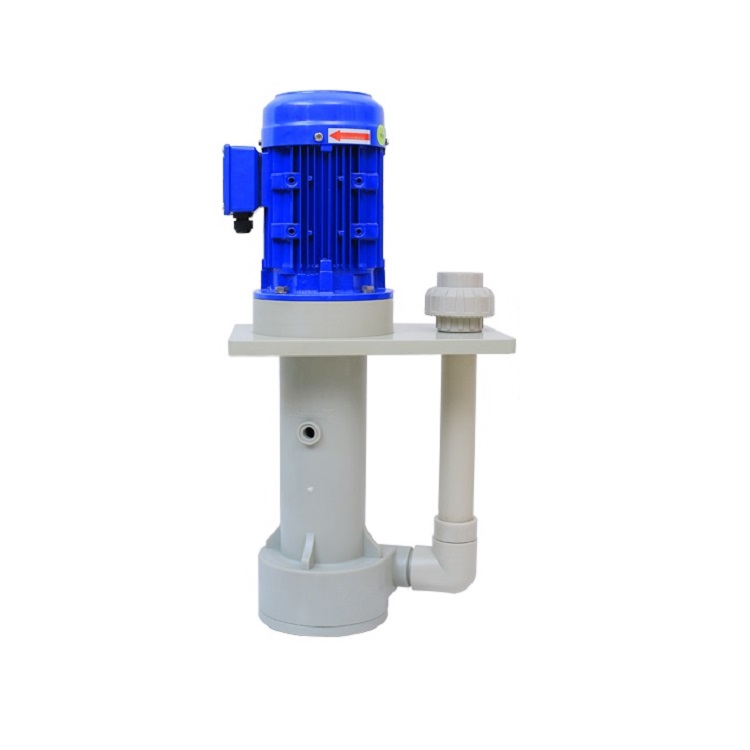

Product Pic.:

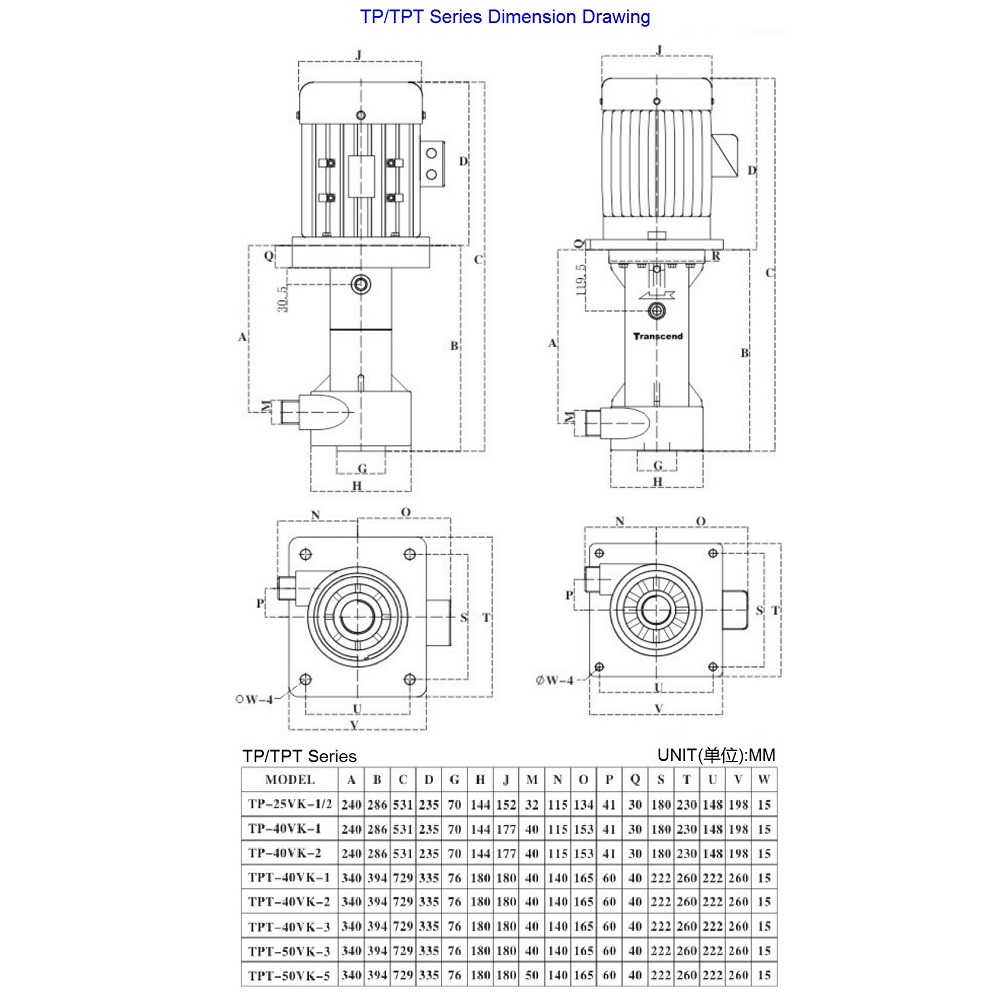

Dimension Drawing:

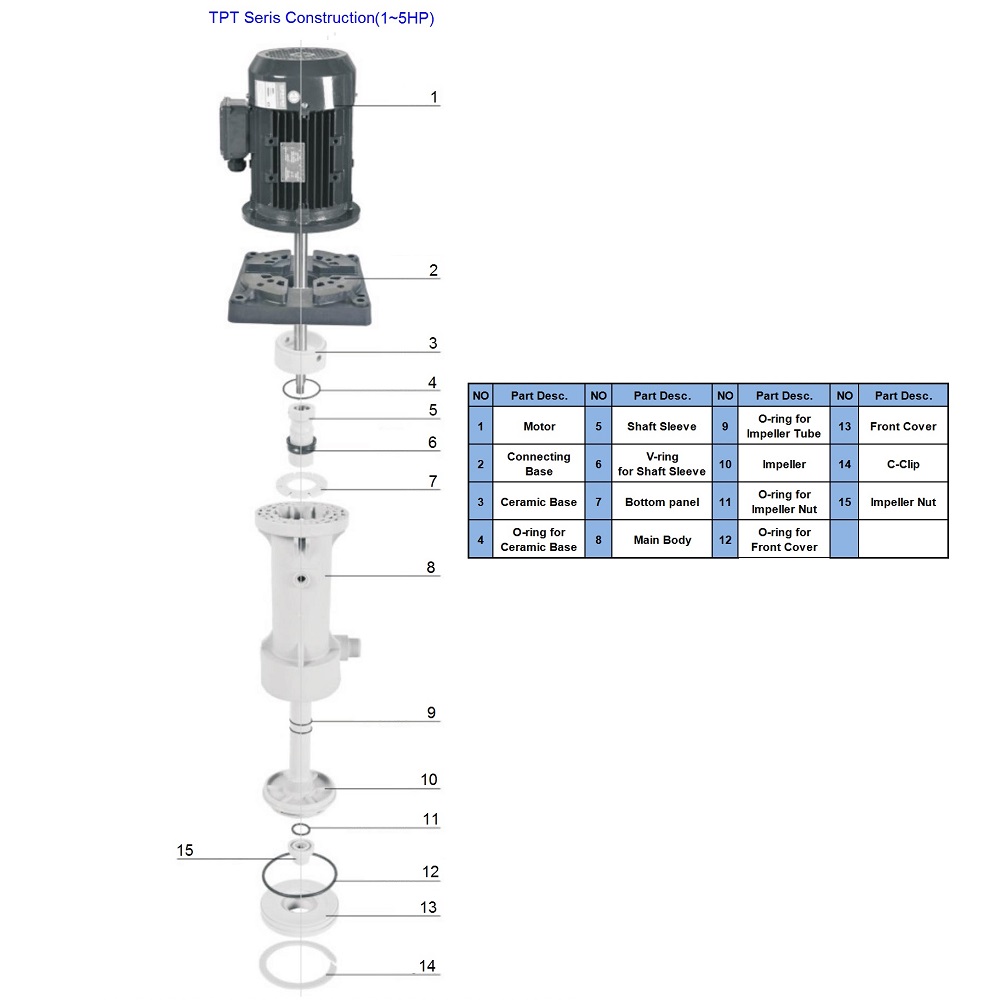

Structure:
CE Certificate:
