| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | Transcend |
| Product Type: | Chemical fluid |
| material: | FRPP/PVDF |
| type: | Submersible vertical pump |
| Model Number: | CSY 1-10HP |
| Place of Origin: | China (Mainland) |
| Product Name: | vertical submersible pump |
| Material: | FRPP/PVDF |
| Advantage: | Corrosion Resistance |
| Application: | For in-tank application |
| Warranty: | 1 year warranty |
| Certification: | CE Certificate |
| Power: | 0.75KW - 3.75KW |
| Flow: | 160L/min. - 750L/min. |
| Head: | 20m. - 42m. |
| Pump body size: | 700mm/1000mm/1500mm |
Quick Details
Specifications

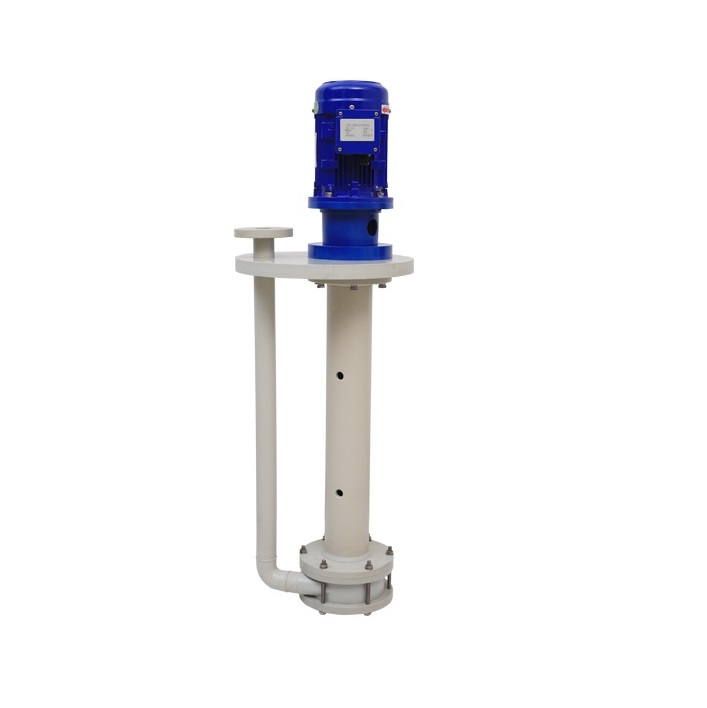

Transcend Strong Acid-Resistant and Alkali-Resistant in-tank Verical Pump
Length of Pump Body(700mm / 1000mm / 1500mm for option)
CSY 1-10HP Chemical Vertical Pump(0.75KW - 3.7KW)
Features & Advantages:
1. 700-1500mm can be customized according to the depth of tank.
2. All the connecting liquid pump parts, are PPH, PVDF corrosion resistant material, depending on the delivery of chemical liquid.
3. Special double shaft seals are designed to prevent motor bearings damaging from chemical gas.
4. with specially designed impeller, even if the impeller is occationally reversed, the pump will not be damaged.
5. Suitable for all kinds of acid and alkali resistant liquid circulation, spray washing, equipment, waste water treatment, chemical tank liquid transporation.
6. in-tank acid-resistant and alkali-resistant vertical pump.

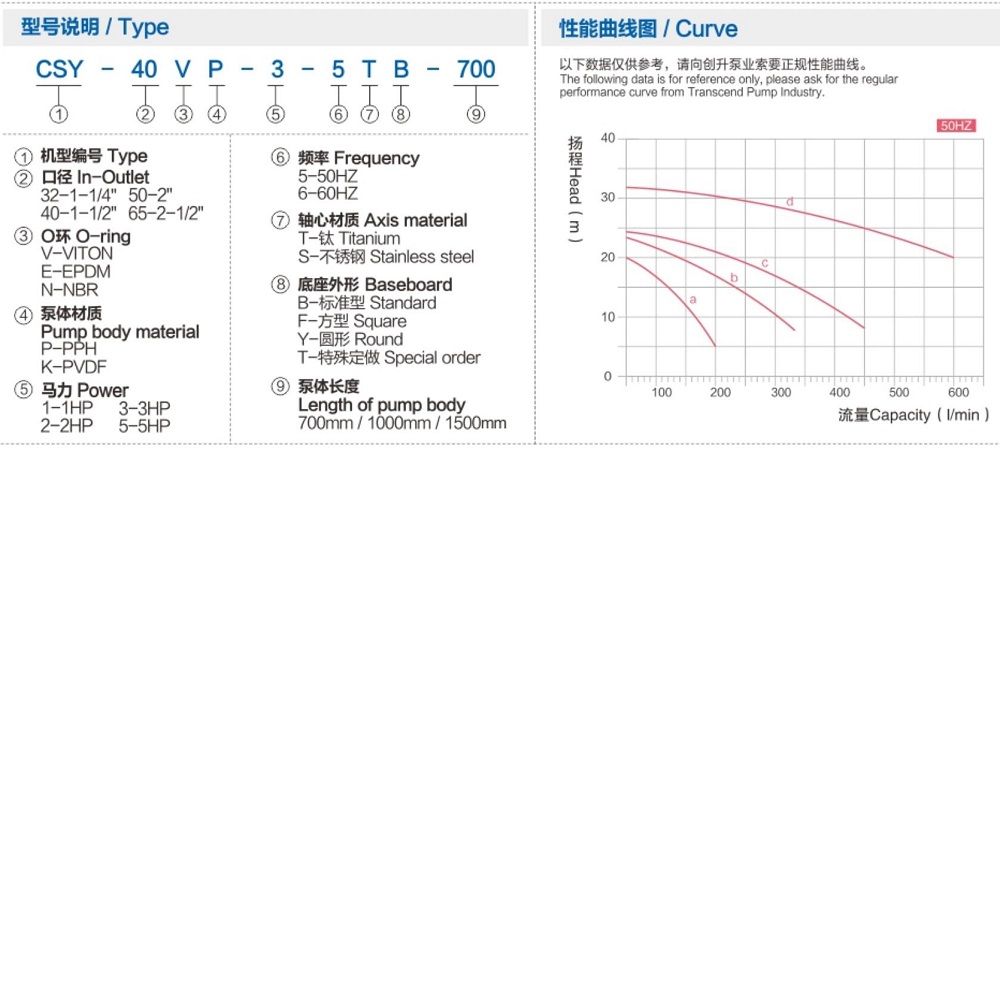

Model Identification:
Model Desc.: CSY - 40 V P - 3 - 5 T B - 700 |
| 1.Type: CSY |
| -Outlet: 32-1-1/4" 40-1-1/2" 50-2" 65-2-1/2" |
| 3.O-Ring: E-EPDM V-VITON N-NBR |
| 4.Pump body: P-FRPP K-PVDF |
| 5.Power: 1-1HP 2-2HP 3-3HP 5-5HP |
| 6.Frequency: 5-50HZ 6-60HZ |
| 7.Axis material: T-Titanium S-Stainless steel |
| 8.Baseboard: B-Standard F-Square Y-Round T-Special order |
| 9.Pump body length: 700mm 1000mm 1500mm |
