Brand Name: Flowna
Accuracy: 0.2
Power Supply: 24VDC or 85-220VAC
output: RS485 interfaces,RS232interfaces,4-20mA,Alarm
Medium: Gas
Model Number: FLXSJ(OLED)
Place of Origin: China (Mainland)

Specifications

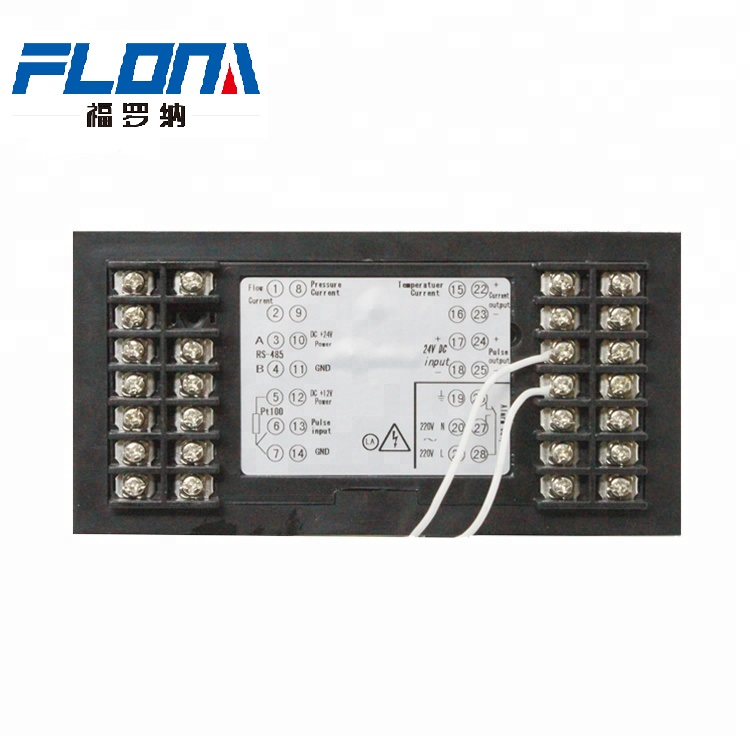

Cheap OLED RS485 420mA flow totalizer meter
XSJ-L SERIES
 FLXSJ-L0
English characters display, with temperature and pressure compensation, with all the way alarm channel, 220VAC power supply / 12 ~ 24VDC power supply
FLXSJ-L0W
(without temperature and pressure compensation)
English characters display, setting temperature and pressure compensation, only accept the pulse signal, with all the way alarm channel, 220VAC power supply / 12 ~ 24VDC power supply
 FLXSJ-L1
English characters display,with temperature and pressure compensation, with one alarm channel, with isolated RS485 communication, 220VAC power supply / 12 ~ 24VDC power supply
FLXSJ-L2
 English characters display,with temperature and pressure compensation, with all the way alarm channel, with U disk interface, 220VAC power supply / 12 ~ 24VDC power supply

FLXSJ-L3
English characters display,with temperature and pressure compensation, with all the way alarm channel, with wireless remote control, 220VAC power supply / 12 ~ 24VDC power supply
FLXSJ-L4
English characters display, with temperature and pressure compensation, with all the way alarm channel, with all the way pulse output,

 FLXSJ-L5
English characters display,with temperature and pressure compensation, with all the way alarm channel, with RS232 communication, 220VAC power supply / 12 ~ 24VDC power supply
FLXSJ-L8
English characters display,with temperature and pressure compensation, with all the way alarm channel, with all the way 4 ~ 20mA current output, 220VAC power supply / 12 ~ 24VDC power supply
FLXSJ-L9
English characters display, with temperature and pressure compensation, with one alarm channel, with isolated RS485 communication, with all the way 4 ~ 20mA current output, 220VAC power supply / 12 ~ 24VDC power supply
Main Features

1. Suitable for flow (Heat) displaying, calculating and controlling of all kinds of liquids, single or mixed gases and vapor.

2. Input multiple flow sensor signals (Such as VSF, Turbine, Electromagnetic, Roots, Elliptical gear, Duplex rotor, Orifice plate, V-cone, Annubar, and Thermal flowmeter, etc.).

3. Flow input channel: Receive frequency and multiple current signals.

4. Pressure and temperature input channel: Receive multiple current signals.

5. Provide 24VDC and 12VDC power supply with short circuit protection, simplify the system and save investment.

6. Fault-tolerance: When the compensation measurement signals of temperature, pressure or density are abnormal, compensate with the manual setting of the corresponding operation.

7. Circular display: Provide convenience to monitor multiple process variables.

8. the update cycle of output current signal is 1 second, which can meet the requirements of the automatic control.

9. Configure with Instrument clock, automatic meter reading and print function, provide convenience for metering management.

10. Self-test and self diagnosis make the instrument more easy to use and maintain.

11. 3 -level password to prevent unauthorized personnel to modify parameters.

12. There are no potentiometer, code switch and other adjustable devices, that can improve the vibration resistance, stability and reliability of the instrument.

13. Communication: RS485, RS232, GPRS/CDMA, Ethernet

14. the USB interface can be configured to export the instrument data to the U disk.

15. Configure with temperature, pressure, and density compensations, and it also has compressibility coefficient compensation for general gas and flow nonlinear compensation.

16. Perfect function of vapor's density compensation, automatic recognition of saturated vapor and superheated vapor and moisture content calculation of wet vapor.

17. Special function for trade settlement.

A.Power down record

B.Timing meter reading

C.Query function on some illegal operations.

D.Printing

18. Display unit can be modified according to different requirements.

19. Large storage function.

A.Day record can be stored in 5 years

B.Month record can be stored in 5 years

C.Year record can be stored in 16 years

Performance Index
Description
Specifications



Input Signal
Analog Input
Pulse Input
Thermocouple: K, E, B, J, N, T, S
Waveform: Rectangular, Sine and Triangle wave
Pt100
Amplitude: more than 4V
Current: 0-10mA, 420mA
Input impedance≤250Ω
Frequency: 010KHz
Special requirements please contact us




Output Signal
Analog Output
Communication Output
Switch Output
Feed Output
DC 010mA
(loadresistance ≤750Ω)
RS232, RS485, Ethernet
Relay with hysteresis
DC24V (load current≤100mA)
DC 420mA (loadresistance ≤500Ω)
Baud rate: 600, 1200, 2400, 4800, 9600bps,8 data bits, 1 stop bit, and 1 start bit
AC220V/3A;
DC24V/6A(Resistive load)

DC12V (load current≤200mA)
Accuracy
0.2%FS±1d or 0.5%FS±1d
Accuracy for frequency conversion: ±1 pulse (LMS), better than 0.2%
Measuring Range
-999999999999 for flow rate and compensation value
099999999.9999 for totalizer
Display
Backlit 128*64 lattice LCD
Display flow totalizer, flow rate, energy, power, medium temperature, medium pressure, medium density, medium heat enthalpy, differential pressure, current, frequency, date, time, Alarm status
Control/Alarm
Optional relay upper limit and lower limit control (Alarm) output, LCD and LED output indication;
Control (Alarm) with hysteresis (the number of alarm relay is up to 2)
Alarm type: flow upper and lower limit, temperature upper and lower limit, pressure upper and lower limit
Print
through RS232 interface to Serial thermal printer
Real-time print or timing print, up to 8 times timing print in one day.



Protection
Totalizer will be remained for more than 20 years after power off
Reset automatically when Power supply is low
Reset automatically when abnormal working (Watch Dog)
Self-healing fuse
Short circuit protection
Password protection for important data
Operating environment
Ambient temperature: -2060℃; Relative humidity: ≤85%RH, Far from strong corrosive gas

Power supply
Normal Type: AC 220V % (50Hz±2Hz)
Special Type: AC 80265V (Switch power)
DC 24V±1V (Switch power) (AC 36V 50Hz±2Hz)
Back-up power: +12V, 20AH, it will last 72 hours
Power consumption
≤10W
