Quick Details

Brand Name: Flowna
Accuracy: 0.2
Power Supply: 24VDC
output: Pulse ,4-20mA
Medium: liquid
Model Number: FLWLDL-NJ
Place of Origin: China (Mainland)

Specifications

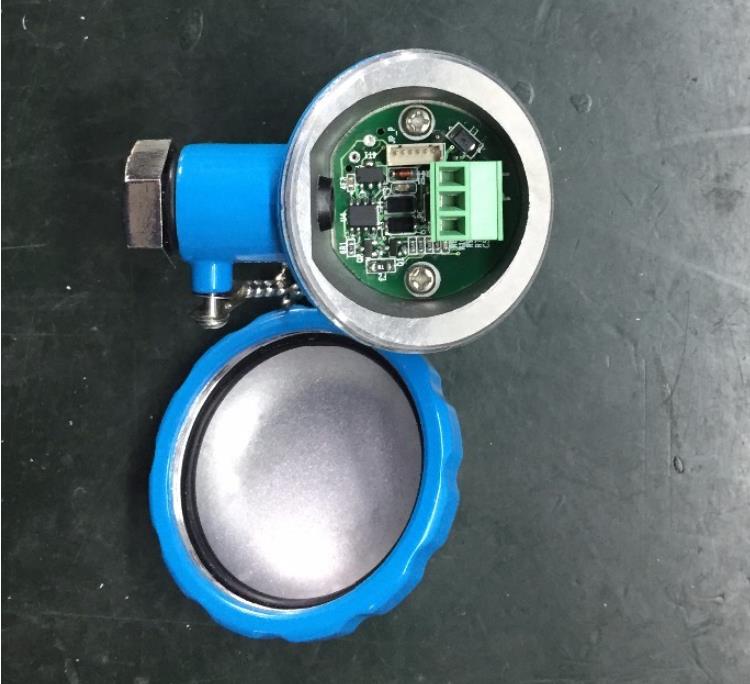

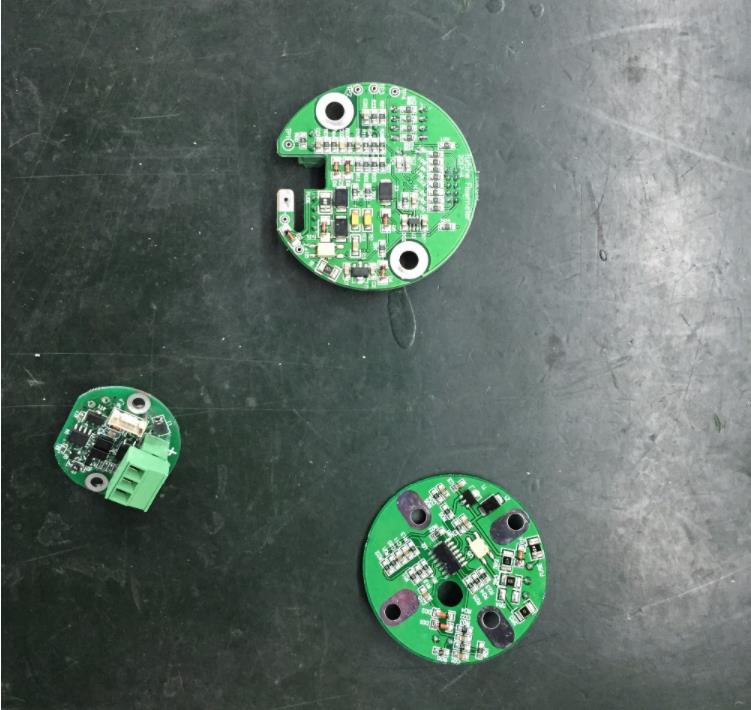

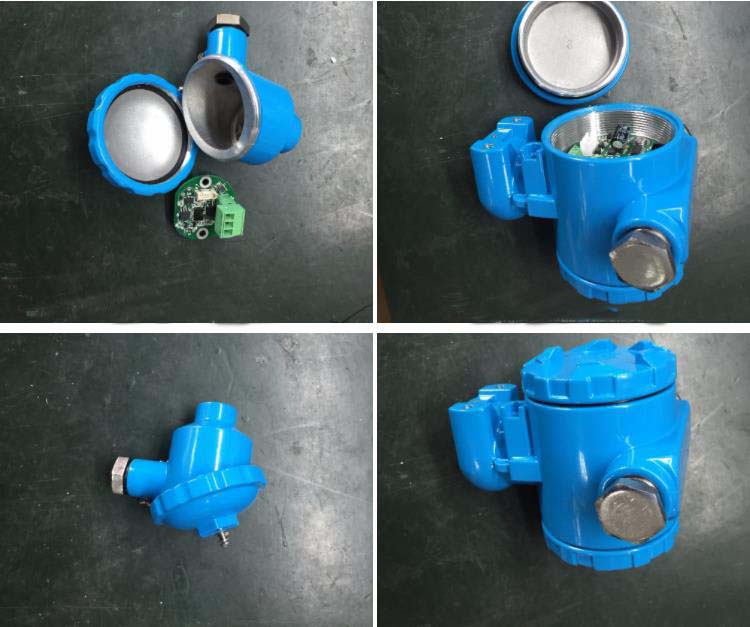

Turbine Flow measuring instrument flow meter current circuit board
Turbine Flow measuring instrument flow meter current circuit boardTurbine Flow measuring instrument flow meter current circuit board
Main Features

1. the instrument set parameters through the computer software, safe and reliable, the data is not easy to lose.

2. Converter can output frequency pulses and a 4 - 20mA output,

3. Excellent nonlinear correction function, greatly improve the linearity of the instrument

Performance Index
Electrical performance index
Work power
Power supply: 24VDC + 15%, for 4 ~ 20mA output, pulse output
Pulse output mode
Sensor pulse signal, pulse signal flow sensor, the isolated amplifier output, high level of more than 20V and the low level of less than 1V
Correlation
4 ~ 20mA standard current signal and the standard volume is proportional to the corresponding 4mA, 0 m3/h, 20 mA corresponding to the maximum standard volume (the value can be set at a level menu)
