| Brand Name: | Flowna |
|---|---|
| Accuracy: | 0.1 |
| Power Supply: | 24VDC or 3.6V battery |
| output: | Pulse ,4-20mA |
| Medium: | design according to different shell size and parameter requirements |
| Model Number: | FLWJDM |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Main Features

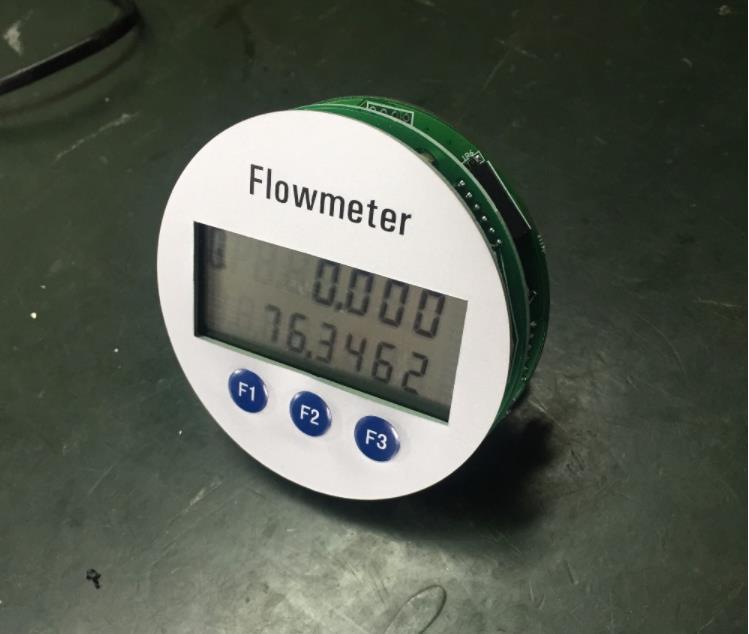

1. Segment LCD screen display, simple and clear operation;
2. Temperature / pressure sensor interface, strong interchangeability. Can be equipped with Pt100 or Pt1000, can be connected with a pressure gauge or absolute pressure sensor (optional);
3. Excellent nonlinear correction function, greatly improve the linearity of the instrument;
4. Realize the full digital and no potentiometer, no dial switch design, improve the reliability of the instrument, and the maximum extent to achieve automatic debugging, reducing the user production, on-site debugging and after-sales service costs.
5.A variable gain amplifier is used in the hardware to adapt to the signal intensity of all kinds of vortex sensor, and the variable frequency and wide band filter is used to preprocess the vortex signal effectively.
6.Has the function of software spectrum analysis, improves the ability of instrument anti-interference and earthquake resistance;
7. Measuring medium widely, can measure steam, liquid, general gas and so on;
8. Converter can output frequency pulse for verification;
10. Ultra low power consumption, a dry battery performance can be maintained for at least 3 years;
11. Working mode can be switched, battery powered, two wire system;
12. Has independent password settings, anti-theft function is reliable
Performance Index
