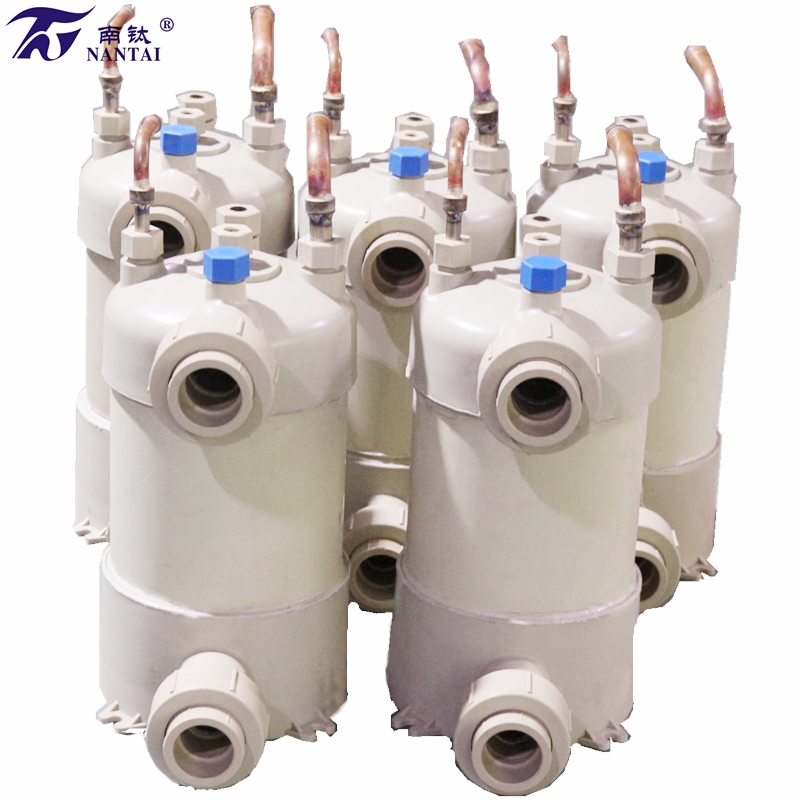

7-10HP Patented Titanium Heat Exchanger with PPR Shell

Specificatio:
PPR(pentatricopeptide repats) shell for water (OD x H): 250 x 500mm
Titaniumscrew tube for refrigerant (OD x H):  19 x 0.6mm x 18m( to25mm)
Water inlet and outlet:DN40 PPR piston
Refrigerant inlet and outlet:  12.7 and 19mm copper tube
Working condition:
Water temperature: within 70°C
Water pressure for testing: 0.4MPa
Gas pressure for testing:3.0MPa
Descriptio:
with titanium tube bending into coil
with strong anti-corrosion
with long service life:under the condition of operating temperature is 70 °C and working pressure is 1 PMa, service life can reach more than 50 yea.
Used in the sea water and some chemical acid
Can solve the problem of the corrosion of the copper material
Surface: not easy for oxidation
Hard to dirty don't need to worry about its clean tighten between coil and coil by the nylon cable ties so can reduce the moving
